Equipment Description:

CAPACITY . . . . . . . . . . 3500 lbs. @ 24 in. load center MOUNTING . . . . . . . . . . . . . . . . . . . . . ITA II & III LOWER HOOK . . . . . . . . . . . . . . . . . . . . . bolt-on B FRAME WIDTH . . . . . . . . . . . . . . . . . . . . 41.0 in. H ARM HEIGHT . . . . . . . . . . . . . . . . . . . . . 48.0 in. L ARM LENGTH . . . . . . . . . . . . . . . . . . . . 48.0 in. T ARM THICKNESS . . . . . . . . . . . . . . 2.13 in. at pivot O MINIMUM OPENING . . . . . . . . . . . . . . . . . 21.38 in. O MAXIMUM OPENING . . . . . . . . . . . . . . . . 77.5 in. A HOOK SPREAD . . . . . . . . . . . . . . . . . . . 29.0 in. WEIGHT . . . . . . . . . . . . . . . . . . . . . . . 1550 lbs. LL LOST LOAD . . . . . . . . . . . . . . . . . . . . . 5.88 in. HCG HORIZONTAL CG . . . . . . . . . . . . . . . . . . . 15.8 in. VCG VERTICAL CG . . . . . . . . . . . . . . . . . . . . . 12.2 in. LATERAL CG . . . . . . . . . . . . 10.6 in. @ maximum shift MAXIMUM OFFSET . . . . . . . . . . . . . . . . . 14.03 in. HYDRAULICS . . . . . . . . . . . . . . . . . . Side Shifting HYDRAULICS . . . . . . . . . . . . . . . . . . Flow Divider RECOMMENDED PRESSURE . . . . . . . . . . . 2250 psi MAXIMUM PRESSURE . . . . . . . . . . . . . . . 2400 psi MINIMUM FLOW . . . . . . . . . . . . . . . . . . 12.0 gpm RECOMMENDED FLOW . . . . . . . . . . . . . . 16.0 gpm MAXIMUM FLOW . . . . . . . . . . . . . . . . . . 20.0 gpm OPTION . . . . . . . . . . . . . . . . . . armor plate system

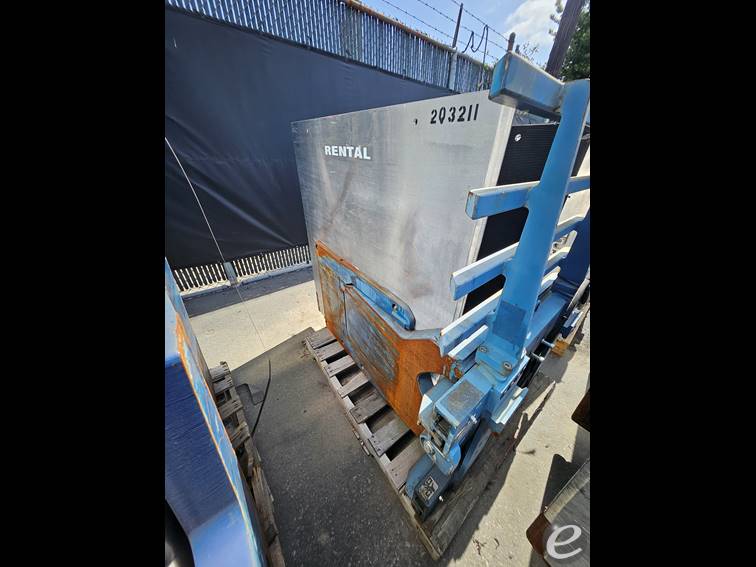

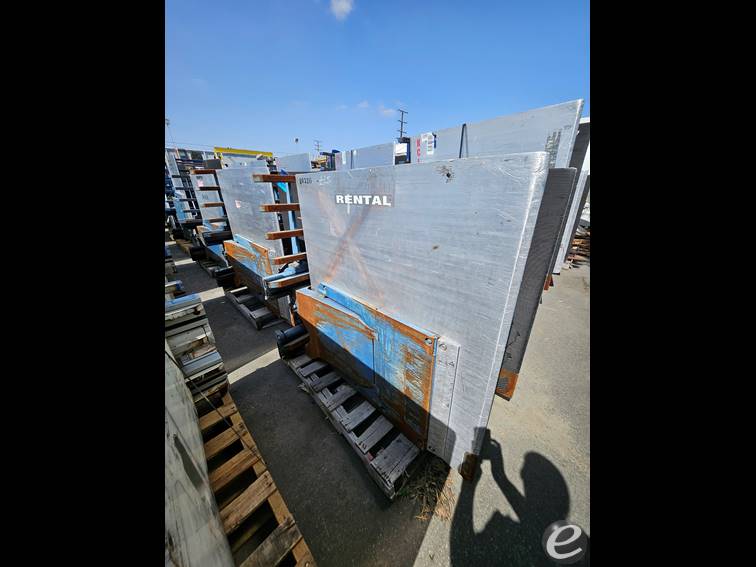

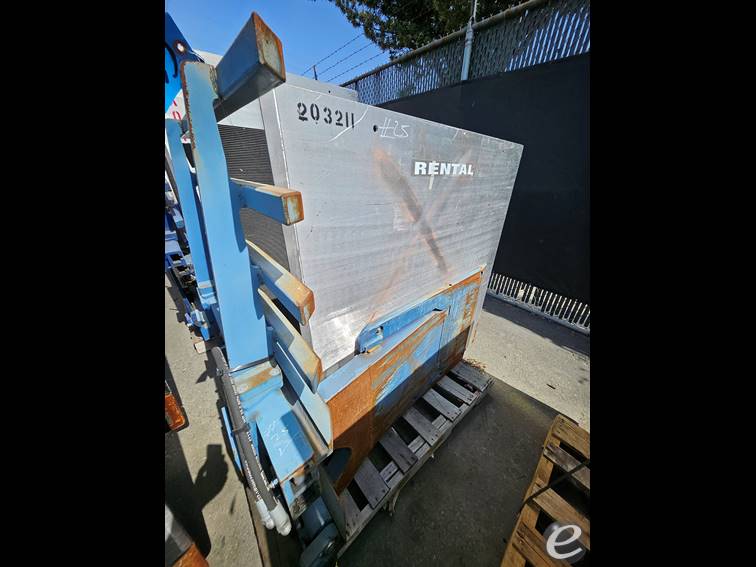

2020 Electric Rightline LC35H-10-3AC-AP Carton Clamps

$6,500 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

ATTACHCO
665 W Cowles St
Long Beach , California 90813

CONTACT :

Andrew Forde

PHONE :

310-308-9893

Stock #:

CC-243

YEAR:

2020

Manufacturer:

Rightline

MODEL #:

LC35H-10-3AC-AP

CAPACITY:

3500

CLASS:

SUBCATEGORY:

Carton Clamps

SERIAL #:

203211

CONDITION:

Used

LOCATION:

California [90813]

DESCRIPTION:

Class 2/3 Convertible Side Shifting 48x48 Pads w/ Armor

Equipment Description:

This product was posted on 11/22/2024

Model: LC35H-10-3AC-AP
Manufacturer: Rightline

Load Capacity

Maximum Load Capacity: 35,000 lbs

Height

Lift Height: Approximately 10 feet

Power Supply

Power Source: AC Powered
Phase: 3-Phase

Platform

Platform Type: Adjustable Platform

Speed

Lifting Speed: Variable, depends on load weight

Control System

Control Type: Automated Control System

Build

Material: High-strength structural steel
Finish: Corrosion-resistant coating

Safety Features

Emergency Stop Button: Yes
Overload Protection: Yes
Safety Guards: Yes

Environment Suitability

Operation Environment: Indoor and Outdoor
Temperature Range: Designed to operate in varying temperature environments

Certifications

Compliance: Meets industry safety and design standards
