2014 TCM FD40-A1

diesel pneumatic tire 4 wheel sit down

$29,950 USD
Instant Quote Eligible Listing - CLICK HERE!
North Texas Equipment Services LLC.
CONTACT INFO
Name:
Gerald Dyson
Phone:

ADDRESS
North Texas Equipment Services LLC.
409 Woodhollow Dr
WylieTexas 75098
ATTRIBUTES
STOCK #:
01282
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
Diesel
MAST TYPE:
Two Stage
MAST HEIGHT:
110 / 157 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:

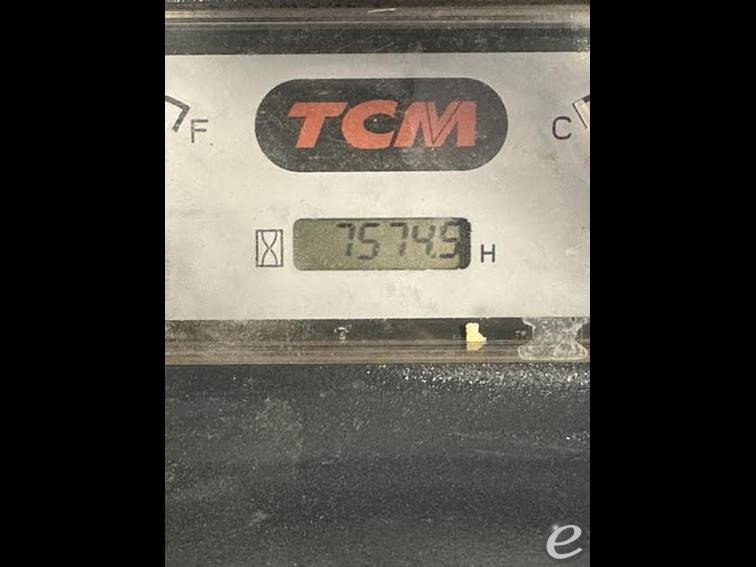

7574
LOCATION:
Texas [75098]
DESCRIPTION:
RECONDITIONED: 2014 TCM FD40-A1
POST DATE:
4/24/2025
Equipment Description

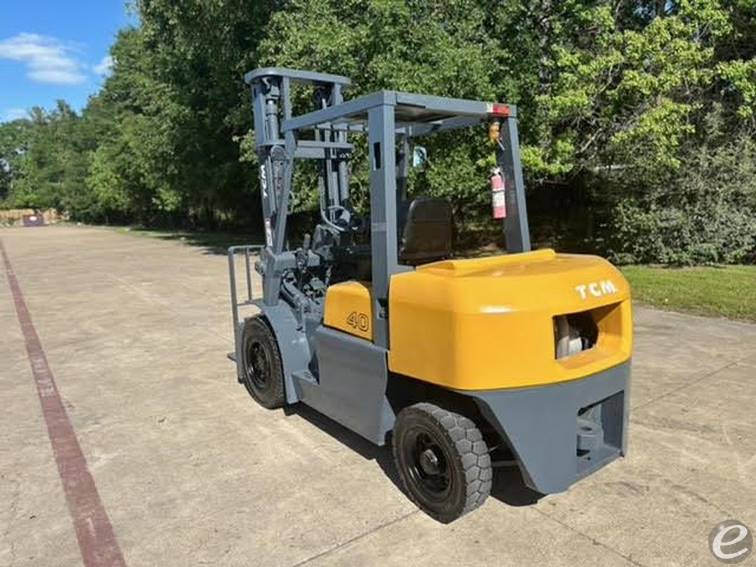

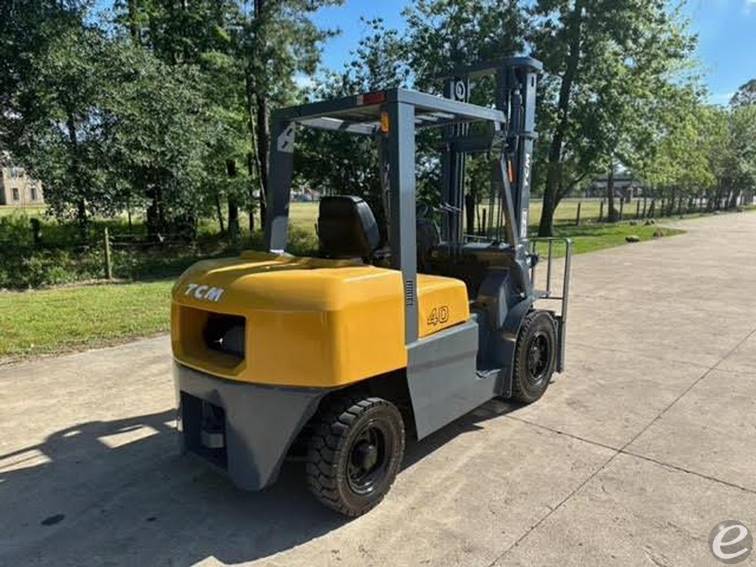

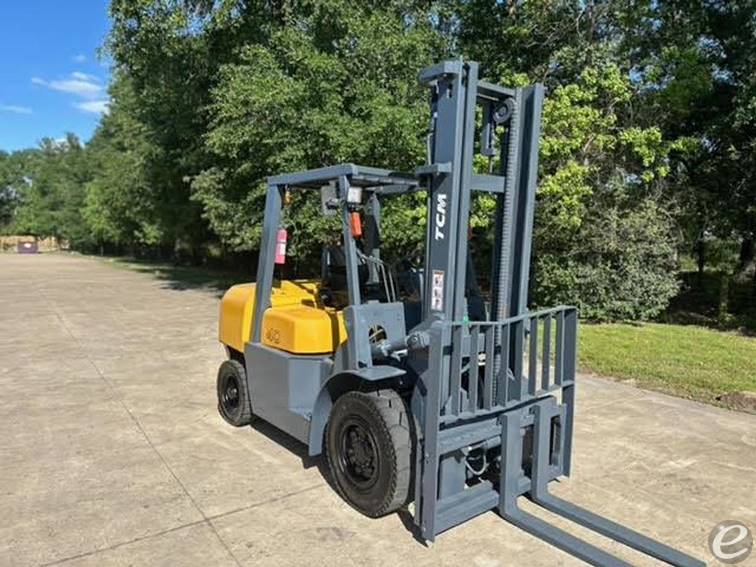

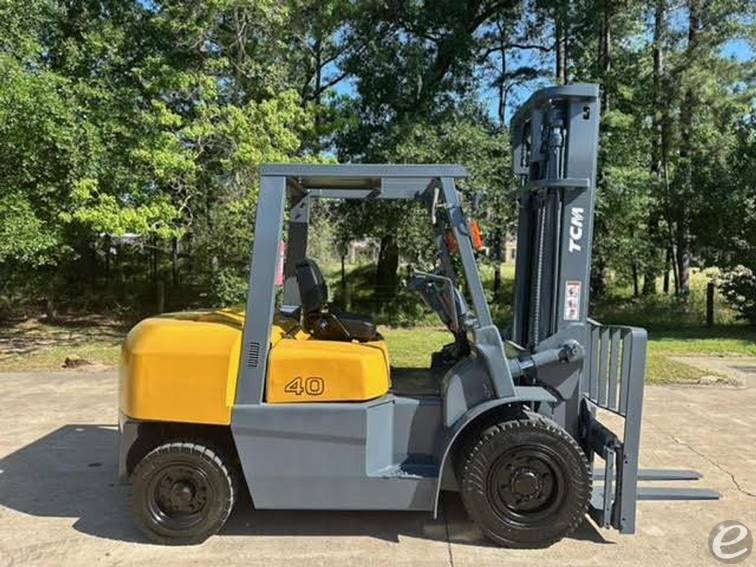

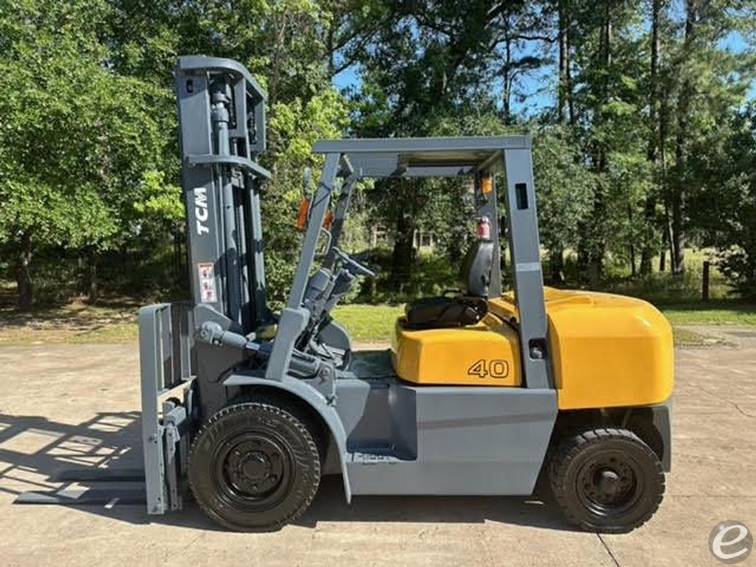

Year: 2014 Make: TCM Model: FD40-A1 Hours: 7574 Tire Type: SOLID PNEUMATIC Power: DIESEL FUELED ENGINE Max Lifting Capacity: 8,000 LBS Mast: DUPLEX, 2 STAGE MAST Attachments: SIDESHIFTING CARRIAGE W/ 48" FORKS Maximum Lift Height: 157" / 110" LOWERED HEIGHT Additional Info: FULLY RECONDITIONED, FRESH PAINT & MANUFACTURER'S DETAILS, FULLY SERVICED, TESTED AND INSPECTED, READY FOR IMMEDIATE DELIVERY - READY FOR WORK! Warranty: 30 DAY POWERTRAIN WARRANTY Delivery: NATIONWIDE DELIVERY AVAILABLE CALL NORA 214-400-2657
  • General Information
    • Model Number: FD40-A1
    • Manufacturer: TCM
    • Type: Forklift
    • Subtype: Pneumatic Tire 4 Wheel Sit Down
    • Fuel Type: Diesel
  • Dimensions
    • Overall Length: Approximately 14.6 feet
    • Overall Width: Approximately 5.5 feet
    • Overall Height (to top of overhead guard): Approximately 8.5 feet
    • Wheelbase: Approximately 6.5 feet
    • Ground Clearance: Approximately 9 inches
  • Performance
    • Load Capacity: 8,000 lbs
    • Travel Speed: Approximately 11.2 mph
    • Gradeability: 23%
  • Engine
    • Engine Model: Isuzu 6BG1
    • Engine Type: Diesel, 6-cylinder
    • Displacement: 399 cubic inches
    • Rated Output: 83.8 HP
    • Fuel Tank Capacity: 22 gallons
  • Wheels and Tires
    • Tire Type: Pneumatic
    • Front Tire Size: 8.25-15-14PR
    • Rear Tire Size: 7.00-12-12PR
  • Forks
    • Fork Length: Varies
    • Fork Width: Approximately 6 inches
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical
  • Hydraulic System
    • Hydraulic Tank Capacity: Approximately 16 gallons
    • Hydraulic Pressure: Approximately 2,500 psi
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
