Toyota 8FGCU25

lp gas cushion tire 4 wheel sit down (indoor warehouse)

$5,500 USD
Instant Quote Eligible Listing - CLICK HERE!
Equip Seller
CONTACT INFO
Name:
Ed Joyce
Phone:
Website:

ADDRESS
Equip Seller
10 Industrial Hwy
LesterPennsylvania 19029
ATTRIBUTES
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
LP Gas
MAST TYPE:
Two Stage
SERIAL #:
18920
SIDE SHIFTER:
Yes
CONDITION:
Used

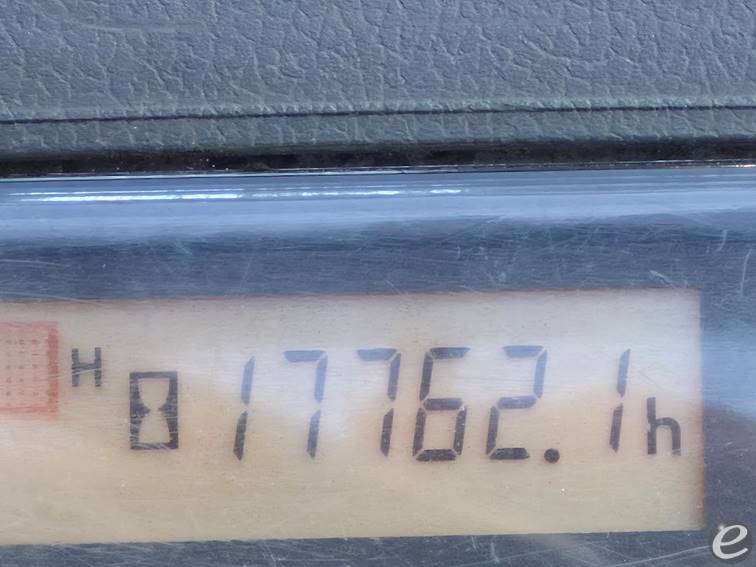

HOUR METER:
17762
LOCATION:
Pennsylvania [19029]
DESCRIPTION:

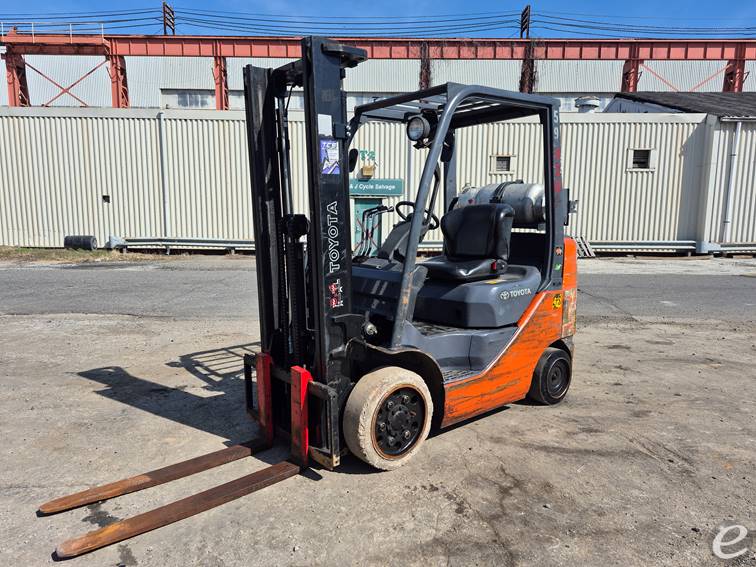

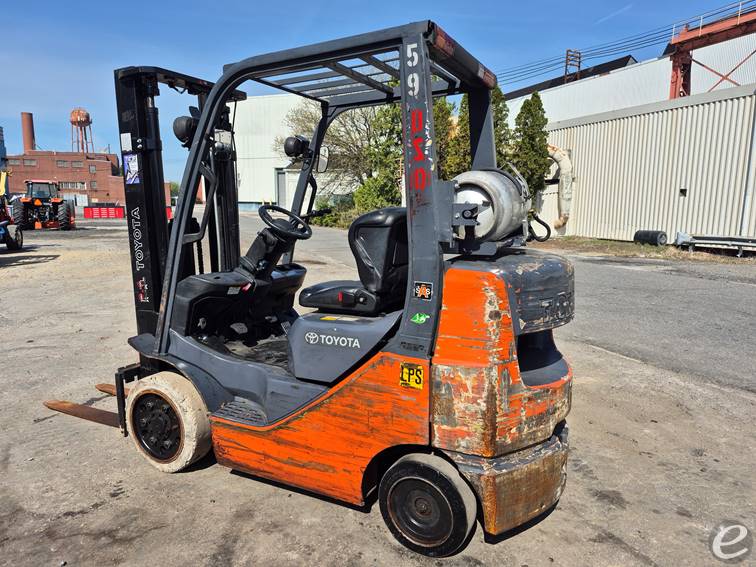

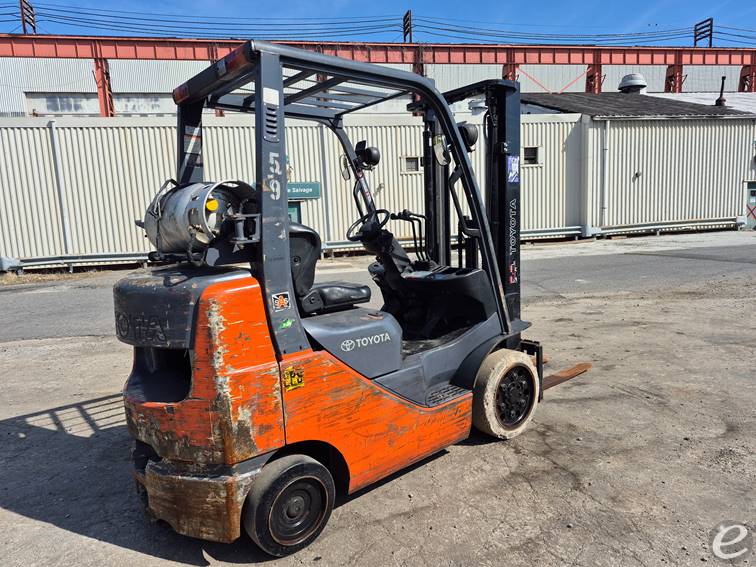

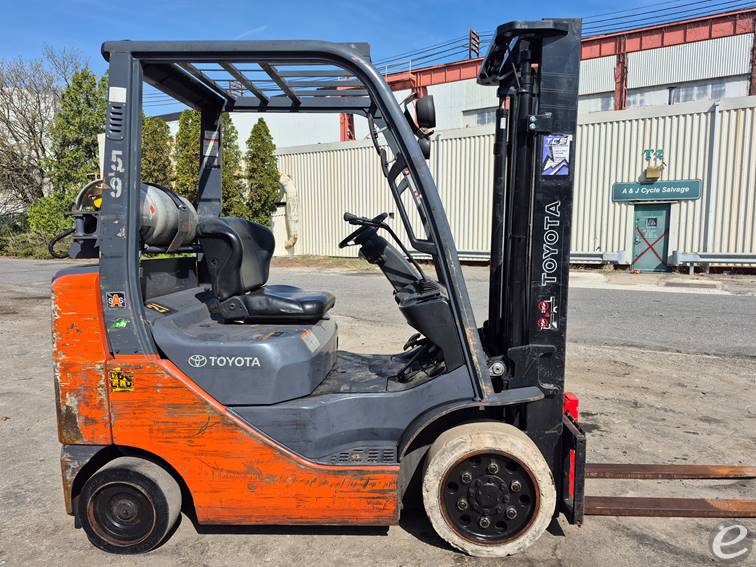

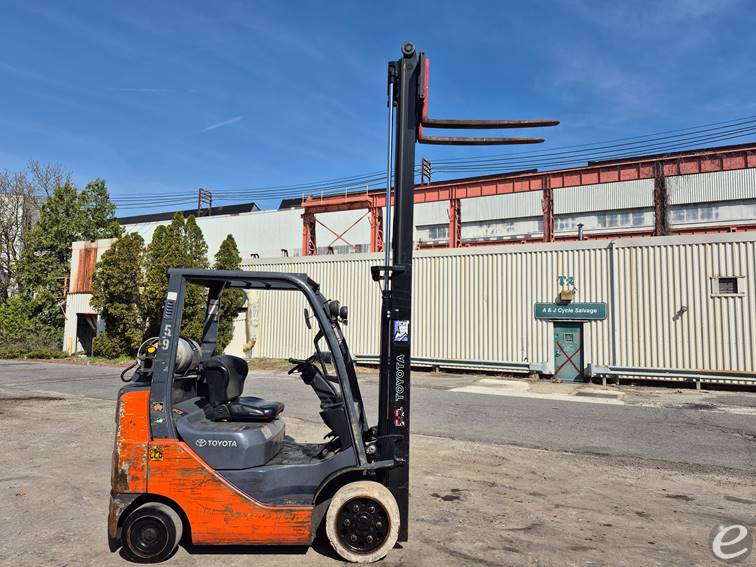

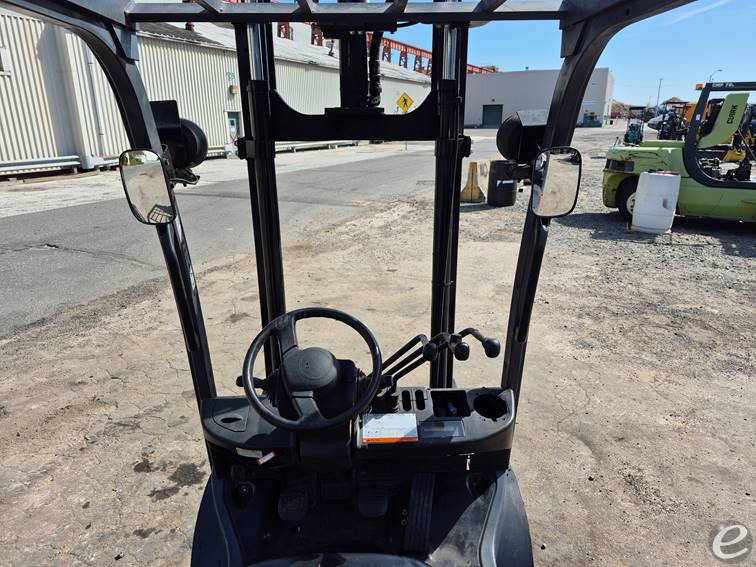

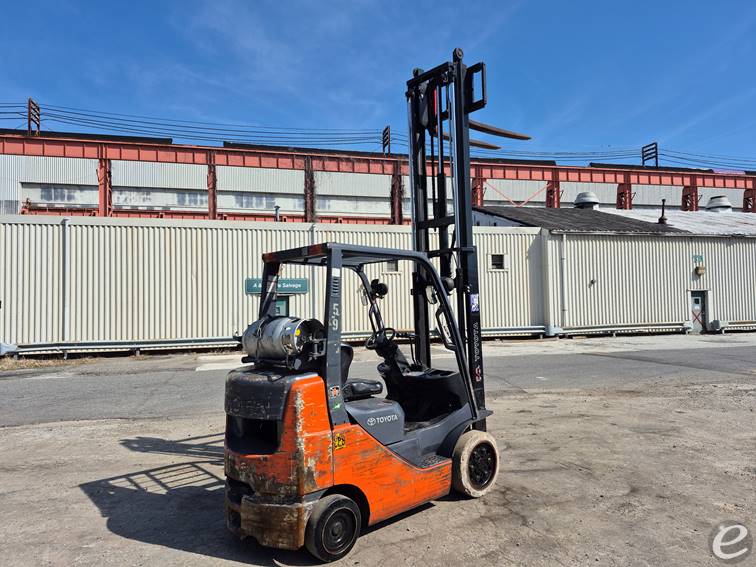

Toyota 8FGCU25 5,000 lb Forklift
POST DATE:
4/18/2025
Equipment Description
YouTube:
Video: https://youtu.be/Zoc_ISEOc_Y

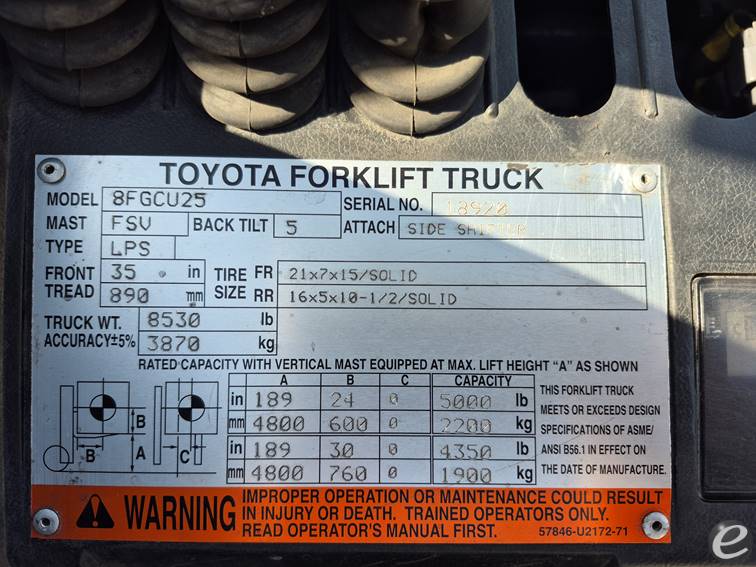

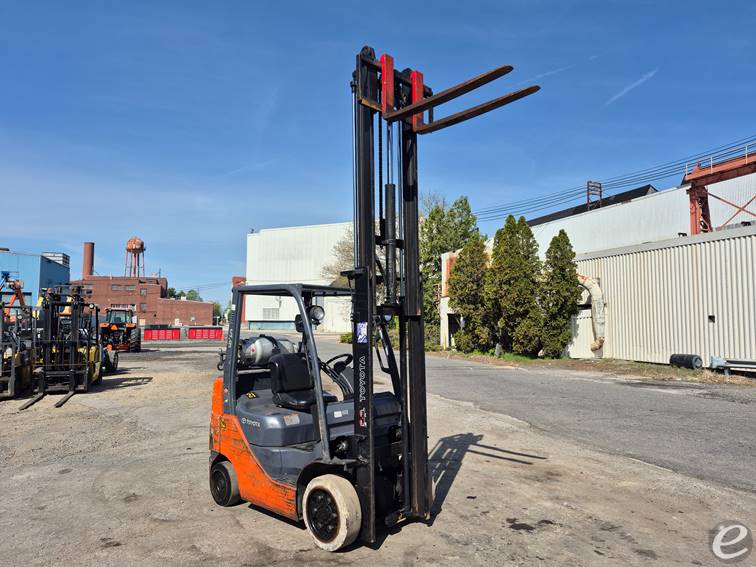

Make: Toyota, Model: 8FGCU25, SN: 18920, Fuel Type: Propane (Bottle Not Included), Cushion Tires, 5,000lb Lift Capacity, 42" Forks, 84" Lowered Height, 132" Raised Height, 2 Stage Mast, Side Shift, Shipping Dimensions: Length 134" Width 42" Height 84" Weight 8,530 lbs
  • Manufacturer: Toyota
  • Model Number: 8FGCU25
  • General Specifications:
    • Power Type: LPG (Liquid Petroleum Gas)
    • Operator Position: Sit-down
    • Tire Type: Cushion
    • Number of Wheels: 4
  • Dimensions:
    • Length to Face of Forks: 8.17 ft
    • Overall Width (Without Load): 3.5 ft
    • Height to Top of Overhead Guard: 7 ft
    • Turning Radius: 80.5 in
    • Minimum Outside Turning Radius: 5.5 ft
    • Wheelbase: 5.08 ft
  • Performance:
    • Rated Load Capacity: 5,000 lbs
    • Load Center: 24 in
    • Travel Speed (Loaded): 11.2 mph
    • Travel Speed (Unloaded): 11.5 mph
    • Lifting Speed (Loaded): 118 ft/min
    • Lifting Speed (Unloaded): 131 ft/min
    • Lowering Speed (Loaded): 98 ft/min
    • Lowering Speed (Unloaded): 98 ft/min

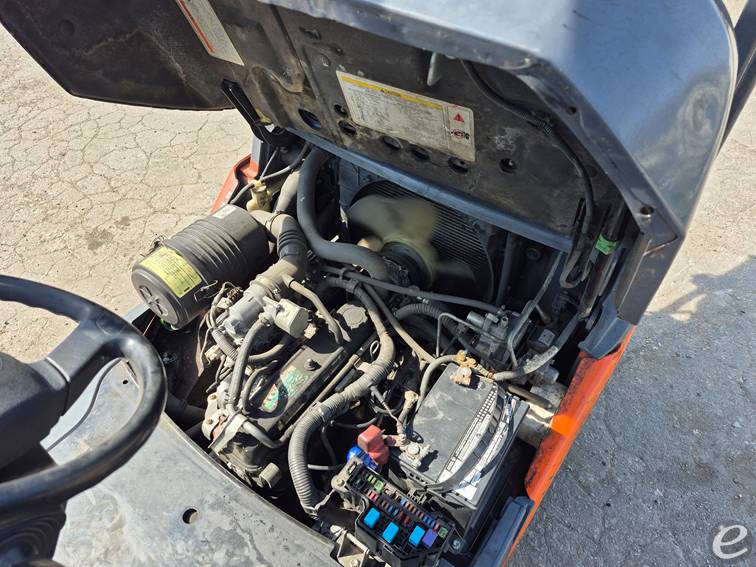

  • Engine Specifications:
    • Engine Model: Toyota 4Y
    • Engine Type: 4-cylinder, water-cooled
    • Displacement: 142 in³
    • Rated Power: 51 hp @ 2,400 RPM
    • Torque: 118.6 lbf·ft @ 1,600 RPM
  • Weights:
    • Service Weight: 8,750 lbs
    • Axle Loading Front: 12,284 lbs (With Load)
    • Axle Loading Rear: 1,466 lbs (With Load)
  • Wheel Specifications:
    • Front Tires: 21x7x15
    • Rear Tires: 16x5x10 ½
    • Tread (Front/Rear): 36/36 in
  • Transmission:
    • Transmission Type: Powershift
    • Number of Speeds (Forward/Reverse): 1/1
  • Brakes:
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical, hand operated
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
