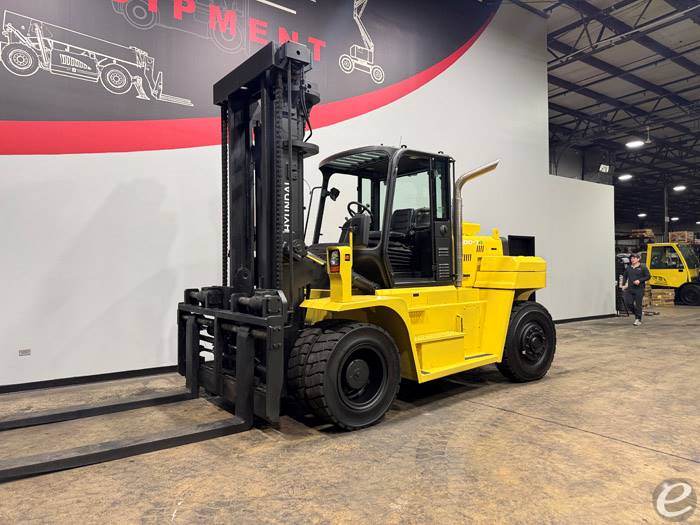

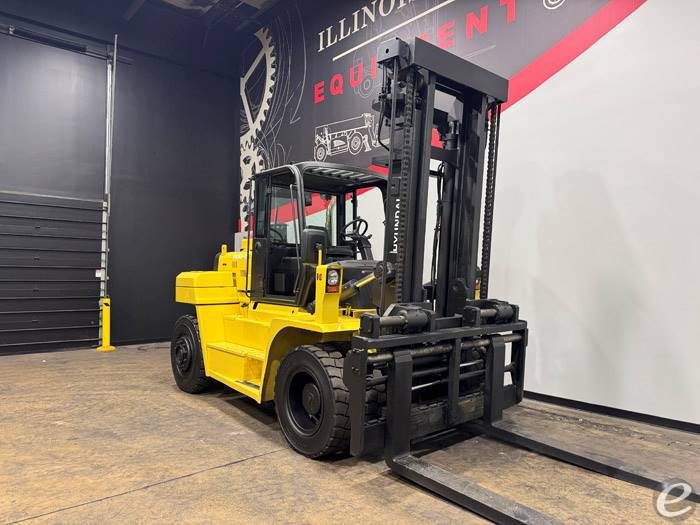

2014 Hyundai 110D-7A

diesel pneumatic tire 4 wheel sit down

Call for price
Illinois Lift Equipment
CONTACT INFO
Name:
John Hellyer
Phone:

ADDRESS
Illinois Lift Equipment
640 Industrial Dr
CaryIllinois 60013
ATTRIBUTES
STOCK #:
15566
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
24000
FUEL:
Diesel
MAST TYPE:
Two Stage
MAST HEIGHT:
151 / 158 in
SIDE SHIFTER:
Yes
CONDITION:
Used
LOCATION:
Illinois [60013]
DESCRIPTION:
24,000LB CAPACITY 2 STAGE MAST 151" LOWERED 158" RAISED
POST DATE:
4/4/2025
Equipment Description
24,000LB CAPACITY 2 STAGE MAST 151" LOWERED HEIGHT 158" RAISED HEIGHT DIESEL FUEL PNEUMATIC TIRES PARTIAL CAB 4-WAY HYDRAULICS PLUMBED TO CARRIAGE SIDESHIFTING FORK POSITIONER FORKS INCLUDED OVER 450 UNITS AVAILABLE FOR SALES AND RENTAL FORKLIFTS, TELEHANDLERS, BOOM LIFTS, SCISSOR LIFTS AND SKID STEERS LEARN MORE BY CHECKING OUT WWW.ILLINOISLIFT.COM OR CALL TOLL FREE 888.745.0577
  • Model Number: 110D-7A
  • Manufacturer: Hyundai
  • Type: Forklift
  • Fuel Type: Diesel
  • Engine
    • Type: Turbocharged Diesel Engine
    • Model: Cummins QSB6.7
    • Power (SAE Gross): Approximately 158 hp @ 2200 RPM
    • Displacement: 409 cubic inches
    • Fuel Tank Capacity: 82 gallons
  • Dimensions
    • Overall Length (without forks): 186.1 inches
    • Overall Width: 86.6 inches
    • Overall Height (overhead guard): 113.4 inches
    • Ground Clearance: 9.8 inches
    • Wheelbase: 110.2 inches
    • Turning Radius: 131 inches
  • Performance
    • Load Capacity: 24,250 lbs
    • Travel Speed (unladen): 21.7 mph
    • Lifting Speed (laden): 88 feet per minute
    • Lowering Speed (laden): 98 feet per minute
    • Gradeability (laden): 32%
  • Hydraulic System
    • Hydraulic Pump Type: Gear Pump
    • Hydraulic Pressure: 2,986 psi
  • Tires
    • Front: Dual Pneumatic
    • Rear: Single Pneumatic
    • Tire Size Front: 8.25 x 15-14PR
    • Tire Size Rear: 8.25 x 15-14PR
  • Brakes
    • Service Brake: Wet Disc
    • Parking Brake: Mechanical Lever
