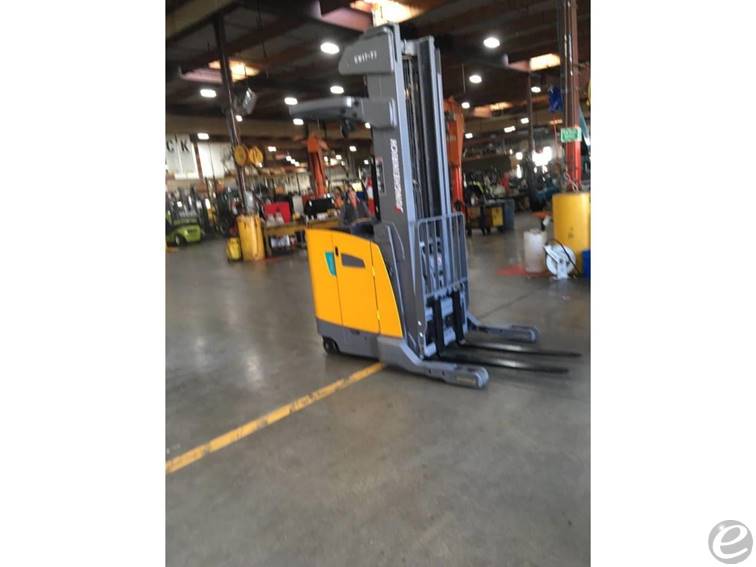

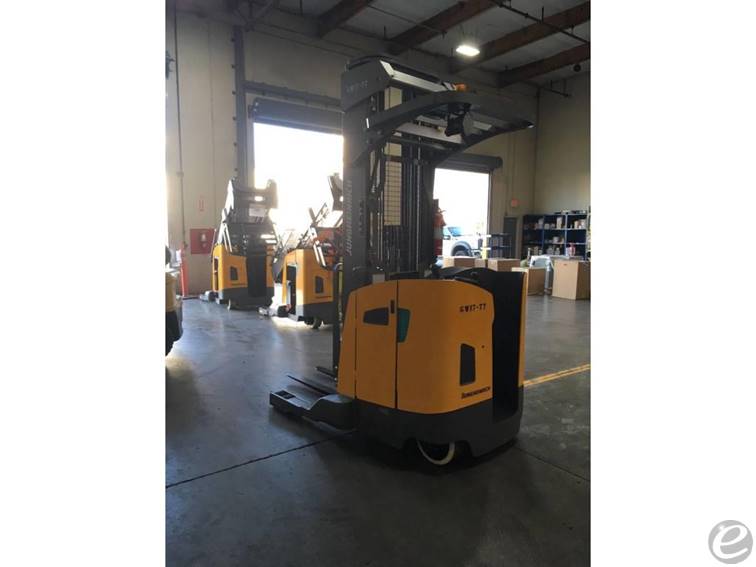

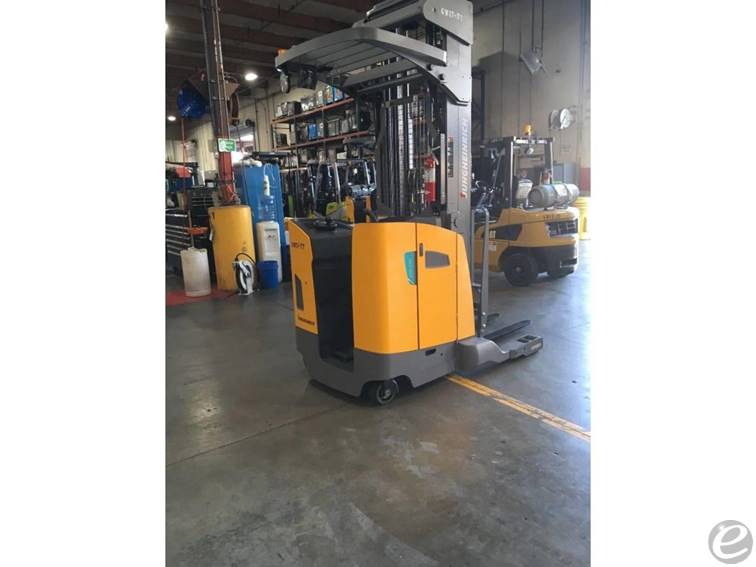

2017 Jungheinrich ETR235

electric narrow aisle single reach

$27,900 USD
CONTACT INFO
Name:
David
Phone:
Fax:

ADDRESS
Holt of California
3850 Channel Dr
W SacramentoCalifornia 95691
ATTRIBUTES
STOCK #:
GW17-77
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
257 / 113 in
SERIAL #:
82823386
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
7875
LOCATION:
California [95691]
POST DATE:
3/18/2025
Equipment Description
3500# SGL REACH 36 VOLT,REVERSE STEERING, 257/113 TRIPLEX MAST, 42" BASELEG OPENING, INTEGRAL SIDESHIFT,42" FORKS BATTERY COMPARTMENT DOORS, LIFT HEIGHT INDICATOR, POWER HOOK UP, TILT POSITION ASSIST, DC/DC CONVERTER, OPERATOR FAN SMART ALARM, LED DOME LIGHT, SPOT LIGHT - REVERSE ACTIVATED, AMBER STROBE, 18-125-13 BATTERY 750 AMP HR
  • General Specifications
    • Model Number: ETR235
    • Manufacturer: Jungheinrich
    • Type: Forklift
  • Dimensions
    • Overall Length: Approximately 7.8 ft (varies with attachment)
    • Overall Width: Approximately 3.5 ft
    • Height to Top of Overhead Guard: Approximately 7.9 ft
    • Turning Radius: Approximately 4.75 ft
    • Clearance: Approximately 4.5 in
  • Performance
    • Load Capacity: 5,500 lbs
    • Travel Speed: Up to 6.8 mph with load
    • Lift Speed: Approximately 80 ft/min
    • Lowering Speed: Approximately 110 ft/min with load
  • Power
    • Drive Motor: 3-phase AC, 6.2 HP
    • Lift Motor: AC, 20 HP
    • Battery Voltage: 36V
    • Battery Capacity: 775 Ah
  • Tires
    • Front Tire Size: 14 in x 5 in Polyurethane
    • Rear Tire Size: 12 in x 7.9 in Polyurethane
  • Features
    • Electric Power Steering
    • Regenerative Braking System
    • Multifunction Control Handle
    • Seat and Operator Presence System
    • Operator Display with Diagnostics
  • Forks
    • Length: Varies
    • Width: Approximately 4 in
    • Thickness: Approximately 1.5 in
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
