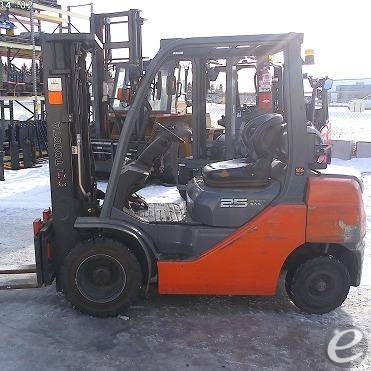

2014 Toyota 8FGCU25

dual fuel cushion tire 4 wheel sit down (indoor warehouse)

Call for price
CONTACT INFO
Name:
Sales Rep

ADDRESS
Global Fleet Solutions
17300 W Valley Hwy
SeattleWashington 98188
ATTRIBUTES
STOCK #:
CI-EQ15360
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
Dual Fuel
MAST TYPE:
Three Stage
MAST HEIGHT:
189 in
SERIAL #:
48952
SIDE SHIFTER:
Yes
HOUR METER:
5889
LOCATION:
POST DATE:
1/21/2025
Equipment Description
5889 Hours 2014 used TOYOTA 8FGCU25 for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #CI-EQ15360, Stock Number: CI-EQ15360, Make: TOYOTA, Model: 8FGCU25, Year: 2014, Auxilliary Hydralic Valves: 0, Capacity: 5000 Lbs, Carriage: S/S, Carriage Width: 0.00", Fork Length: 0.00", Fork Thickness: 0.00", Full Free Height: 0.00", Load Center: 24", Mast: Triplex, Max Fork Height: 189.00", Overall Lowered Height: 86.00", Operator Protection: Open Overhead Guard, Hours: 5889, Chassis: 2 Wheel Drive, Fuel: Dual Fuel
  • Manufacturer: Toyota
  • Model Number: 8FGCU25
  • General Specifications:
    • Power Type: LPG (Liquid Petroleum Gas)
    • Operator Position: Sit-down
    • Tire Type: Cushion
    • Number of Wheels: 4
  • Dimensions:
    • Length to Face of Forks: 8.17 ft
    • Overall Width (Without Load): 3.5 ft
    • Height to Top of Overhead Guard: 7 ft
    • Turning Radius: 80.5 in
    • Minimum Outside Turning Radius: 5.5 ft
    • Wheelbase: 5.08 ft
  • Performance:
    • Rated Load Capacity: 5,000 lbs
    • Load Center: 24 in
    • Travel Speed (Loaded): 11.2 mph
    • Travel Speed (Unloaded): 11.5 mph
    • Lifting Speed (Loaded): 118 ft/min
    • Lifting Speed (Unloaded): 131 ft/min
    • Lowering Speed (Loaded): 98 ft/min
    • Lowering Speed (Unloaded): 98 ft/min
  • Engine Specifications:
    • Engine Model: Toyota 4Y
    • Engine Type: 4-cylinder, water-cooled
    • Displacement: 142 in³
    • Rated Power: 51 hp @ 2,400 RPM
    • Torque: 118.6 lbf·ft @ 1,600 RPM
  • Weights:
    • Service Weight: 8,750 lbs
    • Axle Loading Front: 12,284 lbs (With Load)
    • Axle Loading Rear: 1,466 lbs (With Load)
  • Wheel Specifications:
    • Front Tires: 21x7x15
    • Rear Tires: 16x5x10 ½
    • Tread (Front/Rear): 36/36 in
  • Transmission:
    • Transmission Type: Powershift
    • Number of Speeds (Forward/Reverse): 1/1
  • Brakes:
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical, hand operated
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.


1 Review Shipping Dimensions
Schematic for Toyota 8FGCU25
These dimensions are taken from the base model. If your equipment has been modified, please update the dimensions.
Length
ft in m
Width
ft in m
Height
ft in m
Weight
lbs kg
