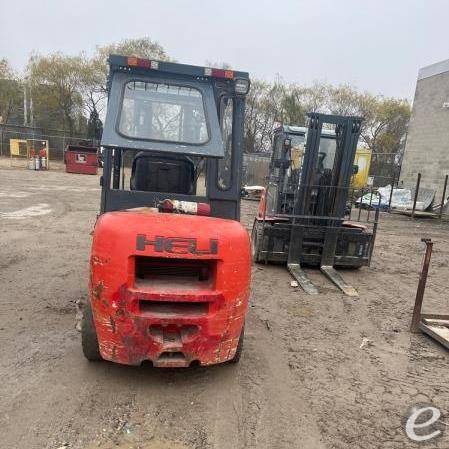

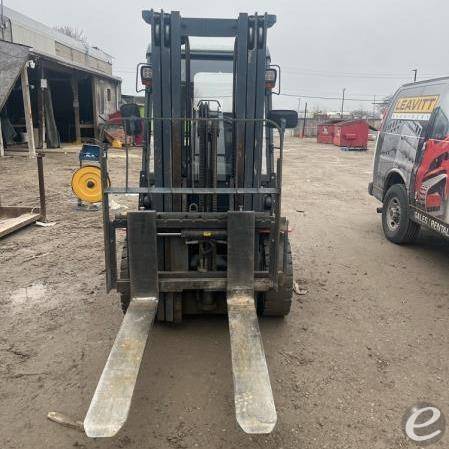

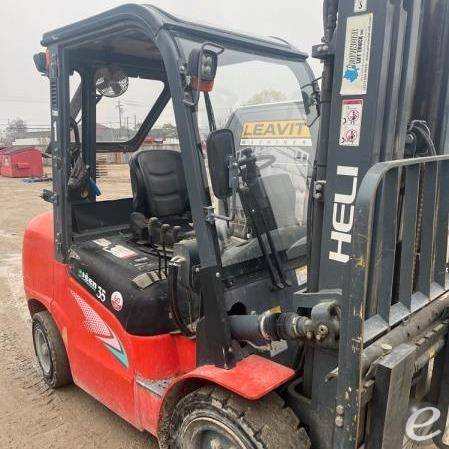

2019 Diesel Heli CPCD35-KU10G Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
Global Fleet Solutions
17300 W Valley Hwy
Seattle, Washington 98188
CONTACT :
Sales Rep
PHONE :
Stock #:
EQC073032
YEAR:
2019
Manufacturer:
MODEL #:
CAPACITY:
5500
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
182 in
SERIAL #:
010352B0835
SIDE SHIFTER:
Yes
HOUR METER:
3809
LOCATION:
Equipment Description:
3809 Hours 2019 used HELI CPCD35-KU10G for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #EQC073032, Stock Number: EQC073032, Make: HELI, Model: CPCD35-KU10G, Year: 2019, Auxilliary Hydralic Valves: 4, Capacity: 5500 Lbs, Carriage: S/S, Fork Length: 48.00", Fork Taper: 2 Stage Lumber, Fork Thickness: 1.75", Fork Width: 7.00", Full Free Height: 230.00", Load Center: 24", Mast: Triplex, Max Fork Height: 182.00", Overall Lowered Height: 85.00", Operator Protection: Enclosed Cab, Rear Tires: Solid Pneumatic, Hours: 3809, Chassis: 2 Wheel Drive, Fuel: Diesel
  • General Specifications
    • Model: Heli CPCD35-KU10G
    • Type: Internal combustion counterbalance forklift truck
    • Fuel: Diesel
    • Nominal Load Capacity: 3,500 kg
    • Load Center: 500 mm
  • Engine Specifications
    • Engine Model: Kubota V3600-T
    • Rated Power: 51 kW at 2400 rpm
    • Displacement: 3600 cc
    • Cylinder Quantity: 4
  • Dimensions
    • Overall Length: 3,800 mm
    • Overall Width: 1,225 mm
    • Overall Height (mast lowered): 2,250 mm
    • Wheelbase: 1,700 mm
    • Ground Clearance (under mast): 135 mm
  • Performance
    • Max. Travel Speed (loaded/unloaded): 18/19 km/h
    • Max. Lift Speed (loaded/unloaded): 470/520 mm/s
    • Gradeability (loaded): 20%
    • Lift Height: 3,000 mm
  • Tires
    • Front Tires: 28x9-15-12PR
    • Rear Tires: 6.50-10-10PR
    • Tire Type: Pneumatic
  • Steering
    • Steering System: Hydraulic power steering
    • Steering Angle (deg): 90° each side
  • Brake System
    • Service Brake: Hydraulic foot pedal
    • Parking Brake: Hand operated mechanical
  • Weight
    • Service Weight: 4,750 kg
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
