Equipment Description:

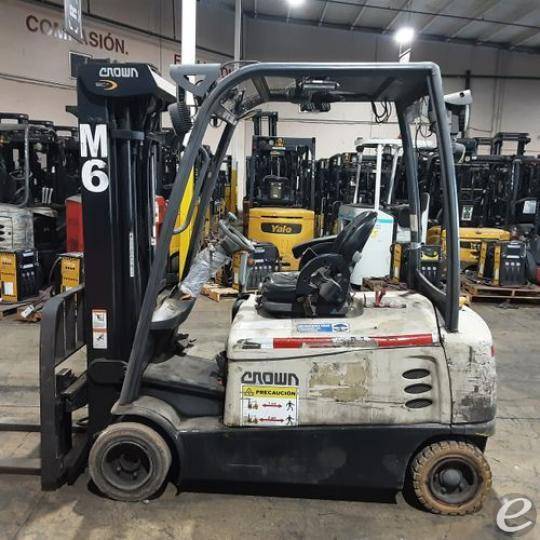

2019 Electric Crown SCF6061-1.8 Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

Call for price

Contact Information

Russell Equipment
1793 Enterprise Parkway
Twinsburg, Ohio 44087

CONTACT :

Sales Dept.

PHONE :

330-529-9010

FAX :

330-752-2131

Stock #:

198055

YEAR:

2019

Manufacturer:

Crown

MODEL #:

SCF6061-1.8

CAPACITY:

4000

FUEL:

Electric

SUBCATEGORY:

Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

LOCATION:

Ohio [44087]

DESCRIPTION:

Equipment Description:

This product was posted on 12/30/2024

General Specifications
- Model: Crown SCF6061-1.8
- Type: Electric Counterbalanced Forklift
- Operator Type: Sit-Down Rider
Performance
- Load Capacity: 1,800 kg
- Lift Height: Typically up to 6 meters (varies based on configuration)
- Travel Speed: Approximately 12 km/h (loaded) and 14 km/h (unloaded)
- Lift Speed: Approximately 0.5 meters/sec (unloaded) and 0.35 meters/sec (loaded)
- Gradeability: Typically 10% (loaded) and 15% (unloaded)
Dimensions
- Overall Length: Approximately 3 meters (depends on fork length and mast configuration)
- Overall Width: Approximately 1.1 meters
- Height to Top of Overhead Guard: Approximately 2.2 meters
- Wheelbase: Approximately 1.5 meters
- Ground Clearance: Approximately 90 mm under mast
Power
- Power Source: Electric
- Battery Voltage / Capacity: Typically 48V with various Ah configurations
- Traction Motor: Three-phase AC motor
- Lift Motor: Three-phase AC motor
Controls & Ergonomics
- Steering: Electric power steering with adjustable steering column
- Control Systems: Multi-functional display with diagnostics
- Operator Seat: Suspension seat with multiple adjustments
Braking System
- Service Brake: Regenerative braking system for energy efficiency
- Parking Brake: Mechanically actuated parking brake
Tires
- Tire Type: Cushion or pneumatic based on configuration
- Tire Size: Common sizes are 18-inch front and 15-inch rear
Safety Features
- Overhead Guard: Integrated for operator protection
- Seat Belt: Standard seat belt with safety interlock
- Lighting: Standard front and rear work lights
- Warning System: Audible backup alarm and horn
Optional Features
- Integrated Side-shifter
- Cold Store Configuration
- Load Backrest Extension

Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
