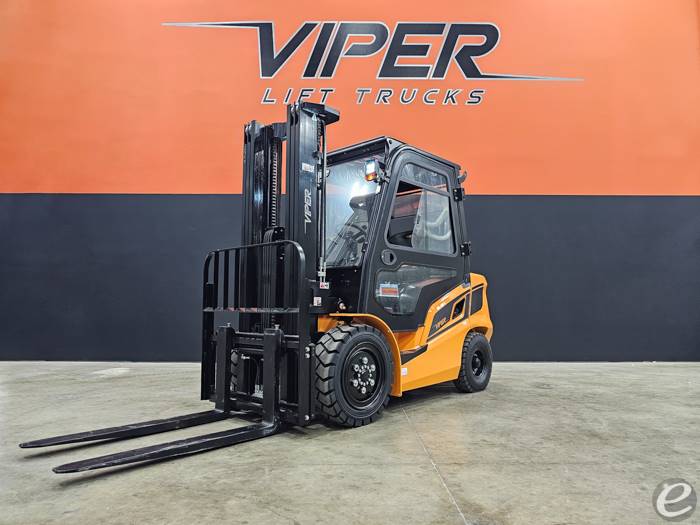

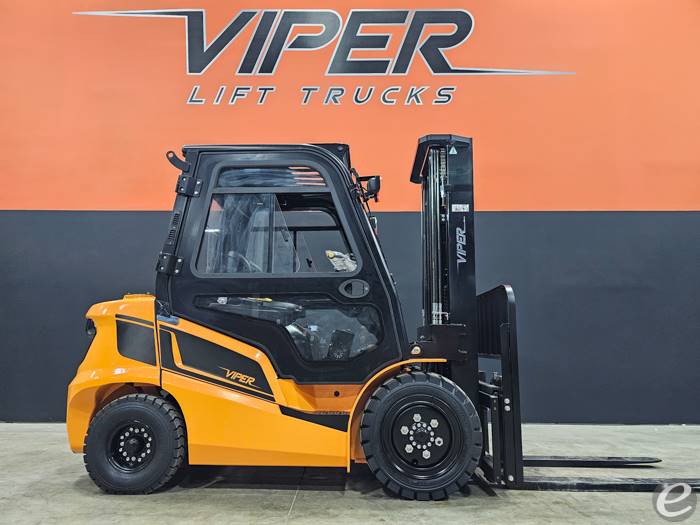

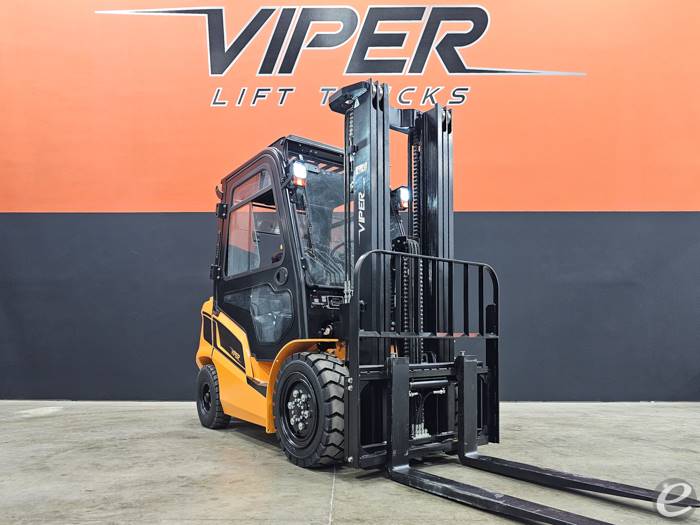

2025 Diesel Viper Lift Trucks FD35F Pneumatic Tire 4 Wheel Sit Down

$41,649 USDNew
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
2025VIPERFD35FCAB
YEAR:
2025
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
88 / 189 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
DESCRIPTION:
8000LB BASE CAPACITY 3 STAGE MAST 88" LOWERED 189" RAISED
Equipment Description:
8000LB BASE CAPACITY 3 STAGE MAST 88" LOWERED 189" RAISED DIESEL FUEL ENGINE WARRANTY LED LIGHT PACKAGE STROBE LIGHT USB PORT ENCLOSED CAB WITH HEAT AIR PNEUMATIC TIRES 4 WAY HYDRAULICS SIDE SHIFTER 48" FORKS 12 MONTH / 2000 HR WARRANTY
  • Capacity
    • Rated Capacity: 7,700 lbs (3,500 kg)
  • Engine
    • Engine Type: Diesel engine
    • Rated Power: 52 kW (69.7 HP) @ 2,500 rpm
  • Transmission
    • Transmission Type: Hydraulic Powershift
    • Gears: 1/1 automatic
  • Dimensions
    • Overall Length (with forks): 148.4 inches (3,770 mm)
    • Overall Width: 48.6 inches (1,235 mm)
    • Height to Top of Overhead Guard: 87.4 inches (2,220 mm)
    • Wheelbase: 68.5 inches (1,740 mm)
  • Mast
    • Mast Type: Duplex
    • Mast Lowered Height: 87.4 inches (2,220 mm)
    • Mast Extended Height: 179.1 inches (4,550 mm)
  • Tires
    • Tire Type: Pneumatic
    • Front Tires: 28x9-15-14PR
    • Rear Tires: 6.50-10-10PR
  • Performance
    • Max Travel Speed: 12.4 mph (20 km/h)
    • Gradeability (loaded): 20%
  • Hydraulic System
    • Hydraulic Tank Capacity: 18 gallons (68 liters)
  • Weight
    • Service Weight: 11,684 lbs (5,300 kg)
