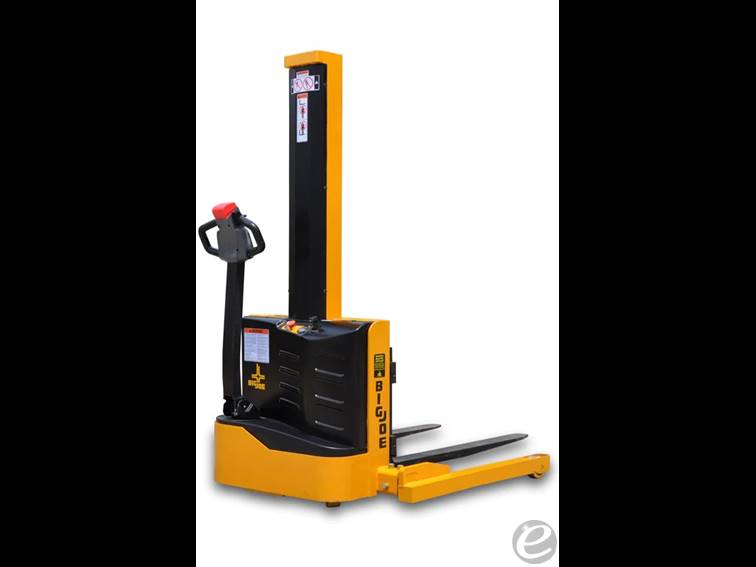

2025 Big Joe S22-62

electric walkie straddle stacker

$6,750 USDNew
CONTACT INFO
Name:
Ed Valdes
Phone:

ADDRESS
Forklift Consulting LLC
6551 Lake Como Terrace
Miami LakesFlorida 33014
ATTRIBUTES
STOCK #:
S22-62
YEAR:
2025
Manufacturer:
MODEL #:
CAPACITY:
2200
FUEL:
Electric
MAST TYPE:
Two Stage
MAST HEIGHT:
62 in
SIDE SHIFTER:
No
CONDITION:
New
HOUR METER:
1
LOCATION:
Florida [33178]
DESCRIPTION:
POST DATE:
2/27/2025
Equipment Description
The S22 - S22-R Features: • 24volt system • High efficiency drive motors. • Adjustable straddles. S22-62R Fork over configuration available. • Infinitely variable speed operation for tight turning in close quarters • Ergonomic handle with safety reversing switch and horn • Maintenance free integral batteries and 110volt charger • Battery discharge indicator, Emergency power disconnect • Key switch to limit access to approved personnel The S22 - S22-R Specifications: • Vehicle Type Walkie Straddle Stackers • Capacity 2,200lbs. @ 24” load center • Power 24 volt - S22 DC / S30 AC • Max Lift Heights S22 62", 96", 116" • Fork Dimensions 42" x 4" x 1.5" / S22-62R 45" x 22" • Vehicle Dimensions See model specification sheet • Turning Radius See model specification sheet • Travel Speed 2.5 mph • Battery Compartment See model specification sheet • Battery Capacity S22 60AH to 85AH • Charger Integral to pack, 110v plug-in
  • Model Number: S22-62
  • Manufacturer: Big Joe
  • Type: Forklift
  • Subtype: Electric Walkie Straddle Stacker
  • Fuel Type: Electric
  • Dimensions:
    • Overall Length: 75 inches
    • Overall Width: 40 inches
    • Fork Length: Varies
    • Carriage Width: 32 inches
    • Overall Height (Collapsed): 78 inches
    • Wheelbase: 54 inches
    • Ground Clearance: 2 inches
    • Turning Radius: 53 inches
  • Performance:
    • Load Capacity: 2,200 lbs
    • Drive Speed (Loaded): 2.8 mph
    • Drive Speed (Unloaded): 3.1 mph
  • Power:
    • Battery Voltage: 24V
    • Battery Capacity: 195 Ah
    • Charger Type: Built-in automatic
  • Operational Features:
    • Control System: Electronic with tiller arm
    • Brake Type: Electromagnetic
    • Drive Motor: AC Motor
    • Lift Motor: DC Motor
    • Steering: Manual with power assist
  • Wheels:
    • Drive Tire Material: Polyurethane
    • Load Wheel Material: Polyurethane
    • Drive Wheel Size: 10 inches
    • Load Wheel Size: 4 inches
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
