Equipment Description:

60' MAX LIFT HEIGHT 66' WORK HEIGHT 4X4 DEUTZ ENGINE DIESEL FUEL 500-1000LB CAPACITY PNEUMATIC TIRES

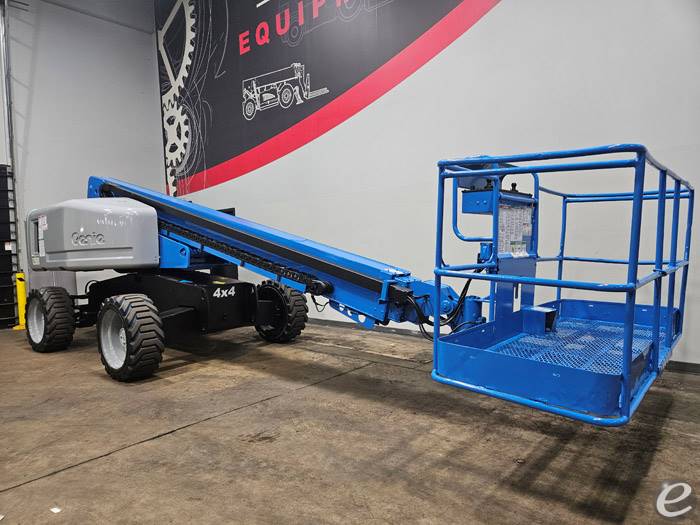

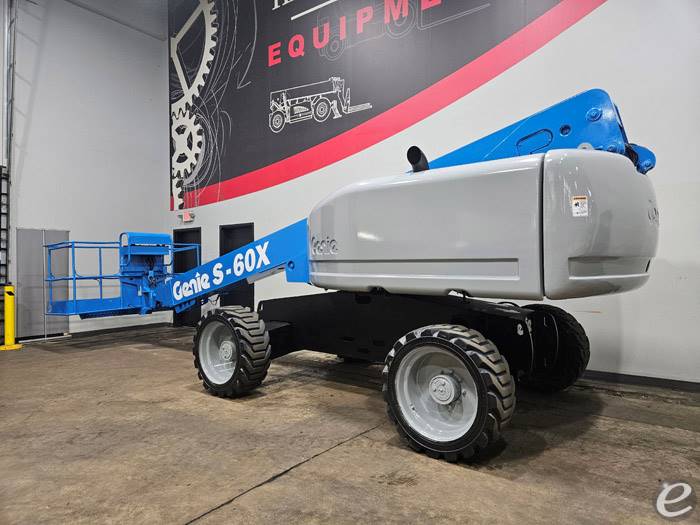

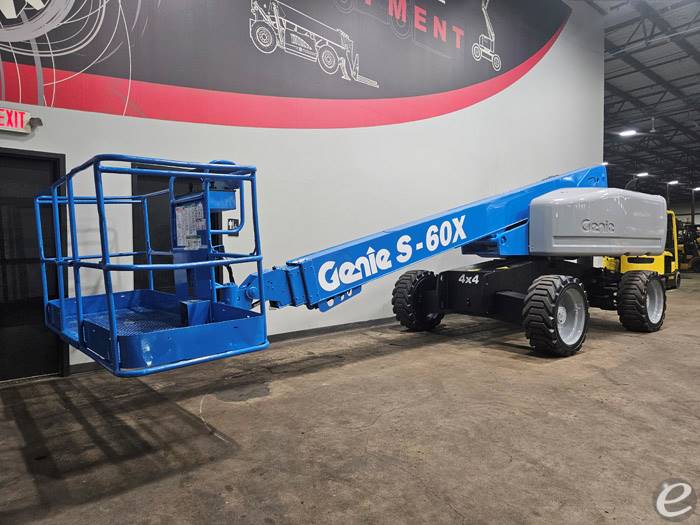

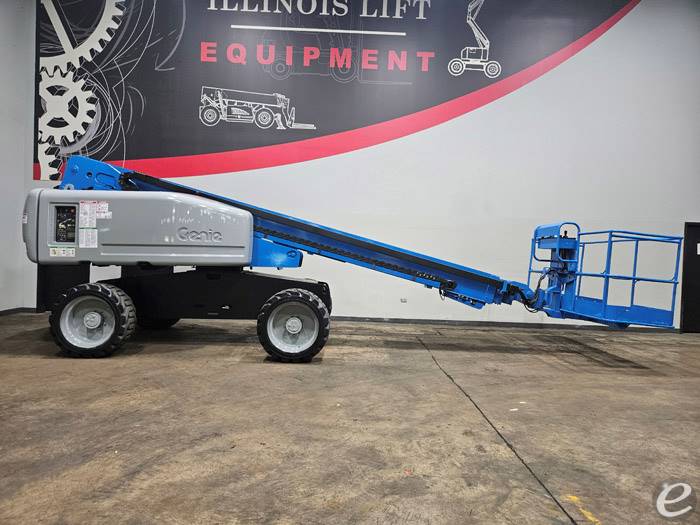

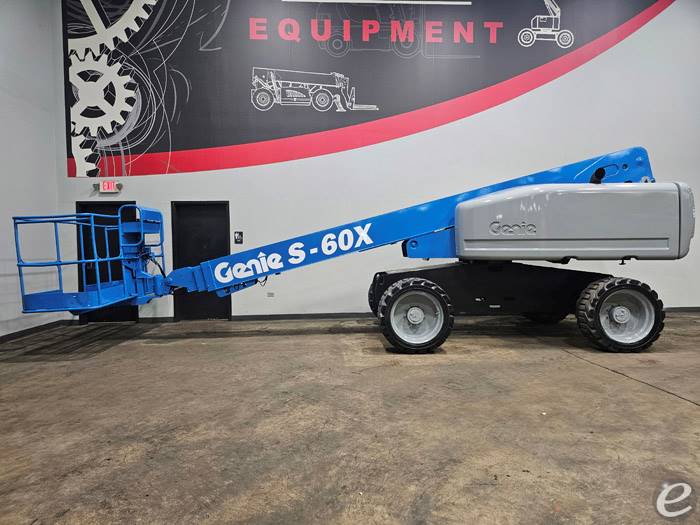

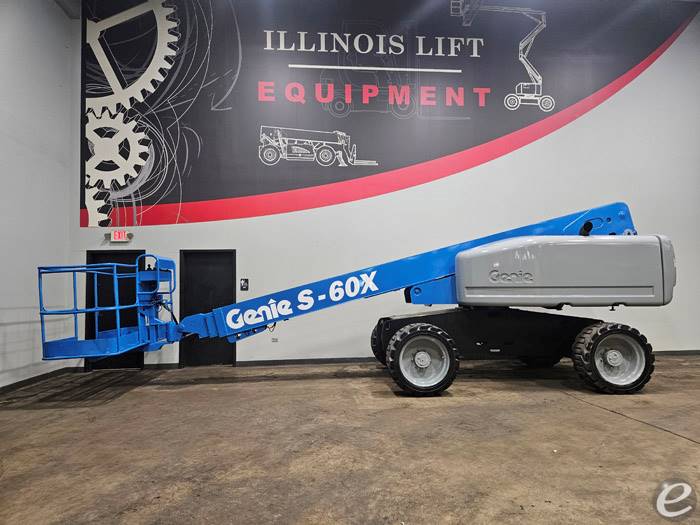

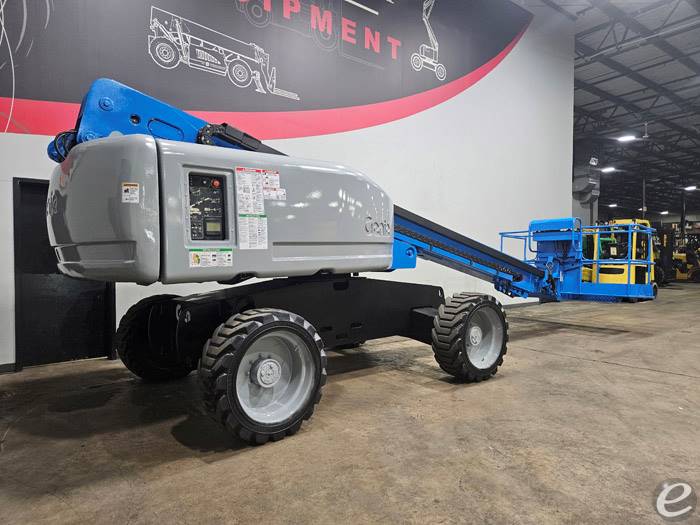

2013 Diesel Genie S60X Telescopic Boom

Call for price

Contact Information

Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013

CONTACT :

John Hellyer

PHONE :

Stock #:

12532

YEAR:

2013

Manufacturer:

MODEL #:

Drive:

4WD

SUBCATEGORY:

Height:

60 ft

FUEL:

Diesel

CONDITION:

Used

LOCATION:

DESCRIPTION:

60' MAX LIFT HEIGHT 66' WORK HEIGHT 4X4 DEUTZ ENGINE DIESEL

Equipment Description:

60' MAX LIFT HEIGHT 66' WORK HEIGHT 4X4 DEUTZ ENGINE DIESEL FUEL 500-1000LB CAPACITY PNEUMATIC TIRES

This product was posted on 12/16/2024

Overview
- Type: Telescopic Boom Lift
- Brand: Genie
- Model: S-60X
Dimensions
- Length (stowed): 8.53 m (28 ft 0 in)
- Width: 2.49 m (8 ft 2 in)
- Height (stowed): 2.72 m (8 ft 11 in)
Working Height
- Maximum Working Height: 20.39 m (66 ft 2 in)
Reach Specifications
- Horizontal Reach: 15.48 m (50 ft 8 in)
- Up and Over Clearance: 7.39 m (24 ft 3 in)
Lifting Capacity
- Lift Capacity: 750 lbs (340 kg)

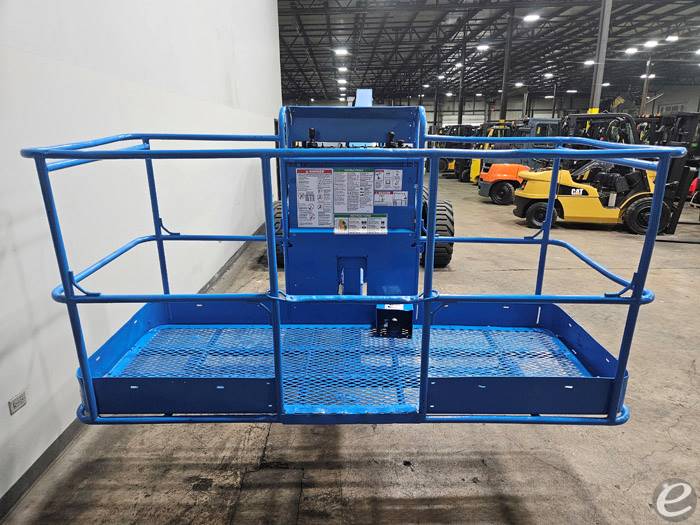

Platform
- Platform Length: 0.91 m (3 ft)
- Platform Width: 2.44 m (8 ft)
- Platform Rotation: 160°
Power Source
- Engine: 74 hp (55.2 kW) Deutz TD2.9 L4 Turbo Diesel Engine
Performance
- Drive Speed: 4.5 mph (7.2 km/h)
- Gradeability: 45%
Weights
- Machine Weight: 21,300 lbs (9,662 kg)
Operational Features
- Turning Radius: 5.94 m (19 ft 6 in) inside, 6.71 m (22 ft) outside
- Controls: Fully Proportional Hall Effect Joystick Controls
- Four-Wheel Drive
- Four-Wheel Brakes
Safety

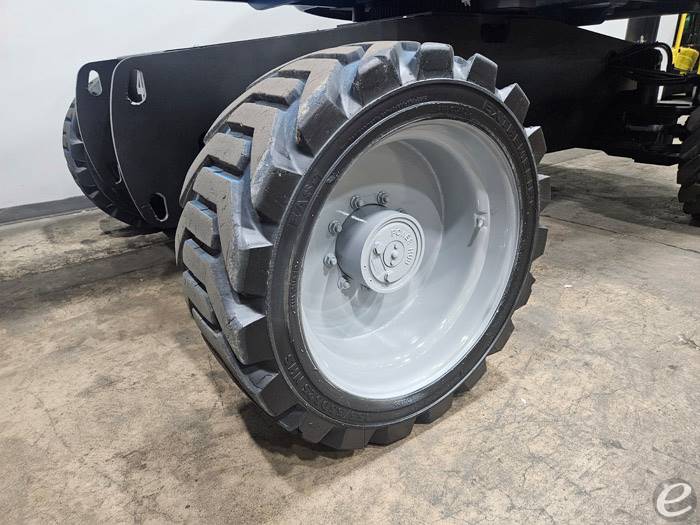

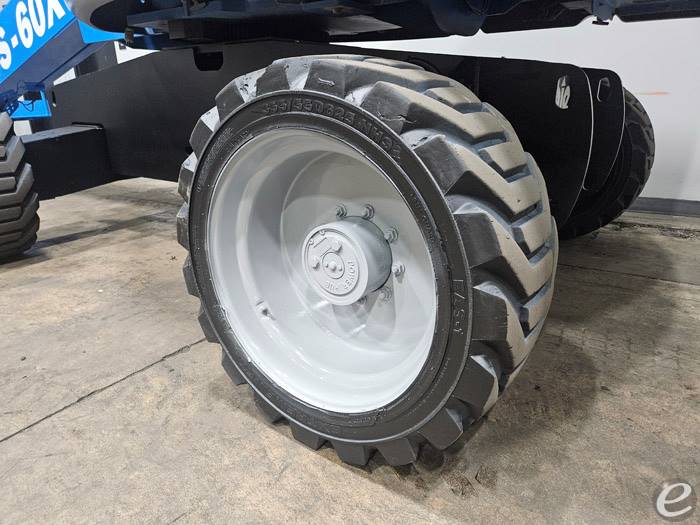

- Foam-Filled Tires
- Drive Enable System
- Horn
