Xtreme XR2042-C

diesel

Call for priceNew
Western Material Handling
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
42 ft
CAPACITY:
20000
MAX FORWARD REACH:
24.1
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:

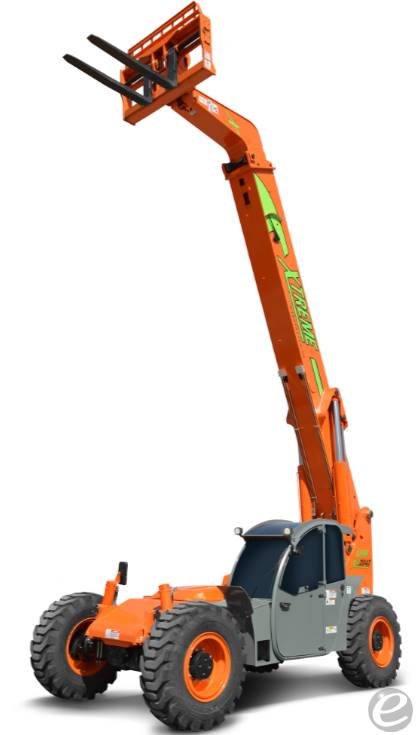

NEW XTREME XR2042-C 20K TELEHANDLER WITH 42' MAX HEIGHT
POST DATE:
12/5/2024
Equipment Description

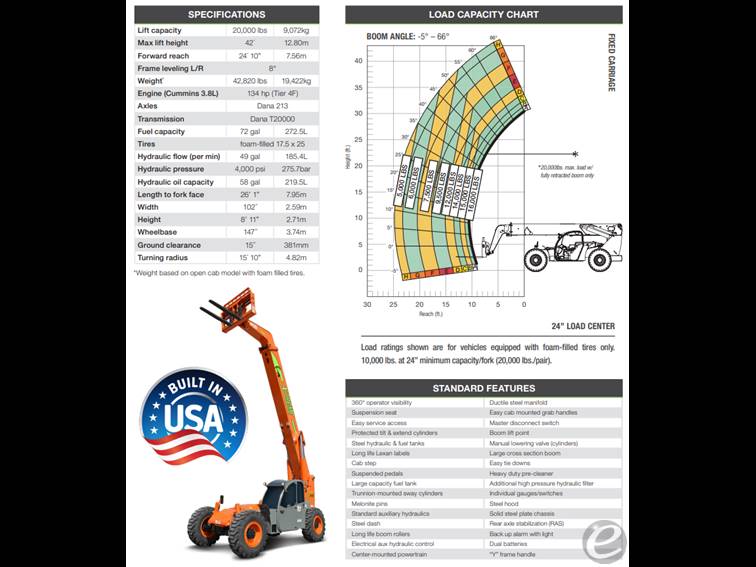

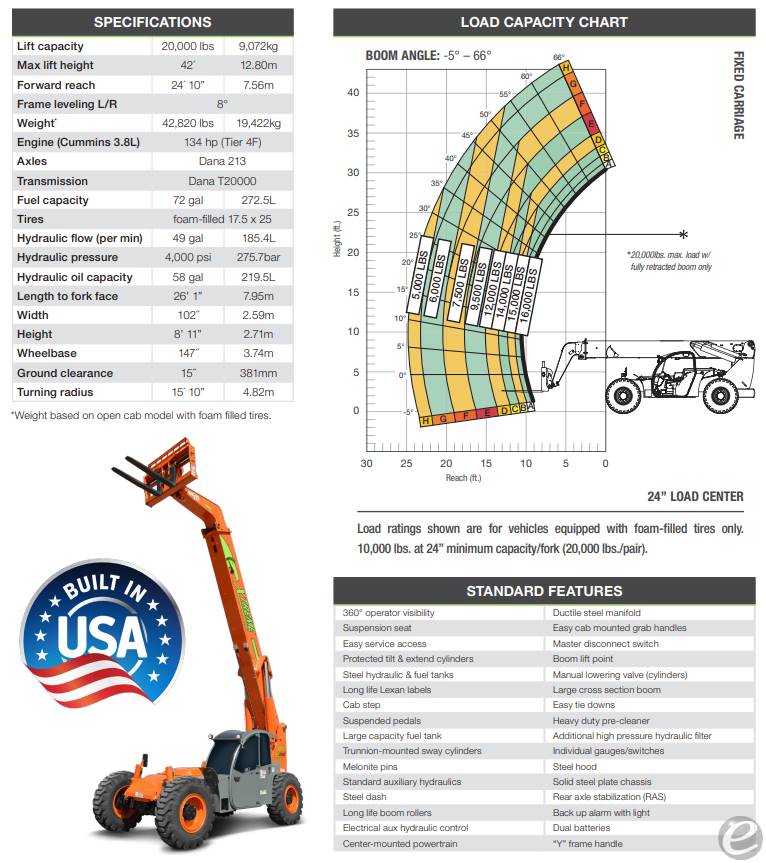

New Xtreme XR2042-C Telehandler with 20,000 lb. Capacity (Less de-rate), 42' of max lift height, 24' 10" of max forward reach, Cummins 3.8L Diesel engine - 134 hp T4f, Dana 213 axles, Dana T20000 transmission, 72gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)
  • General Specifications
    • Model Number: XR2042-C
    • Manufacturer: Xtreme
    • Type: Telehandler
    • Fuel Type: Diesel
  • Engine
    • Engine Type: Inline 4-cylinder
    • Fuel Capacity: Approx. 40 gallons
    • Horsepower: Approximately 120 hp
    • Emission Standard: Tier 4 Final
  • Dimensions
    • Length: Approx. 21 feet
    • Width: Approx. 8 feet
    • Height: Approx. 8.5 feet
    • Wheelbase: Approx. 10 feet
    • Ground Clearance: Approx. 17 inches
  • Performance
    • Maximum Lift Capacity: 20,000 lbs
    • Travel Speed: Up to 20 mph
    • Turning Radius: Approx. 18 feet
  • Hydraulic System
    • Hydraulic Capacity: Approx. 45 gallons
    • Hydraulic Pressure: Approx. 4,000 psi
  • Tires
    • Tire Size: 17.5 x 25 inches
    • Tread Type: All-terrain
  • Operational Features
    • Steering: 4-wheel steer, 4-wheel drive
    • Brake Type: Wet disc brakes
  • Cab Features
    • Operator Seat: Adjustable, suspension seat
    • Air Conditioning: Yes
    • Instrumentation: Digital display
  • Attachments
    • Fork Length: Varies
    • Attachment Options: Bucket, jib, lifting hook
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
