Xtreme XR1547-C

diesel

Call for priceNew
Western Material Handling
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
47 ft
CAPACITY:
15000
MAX FORWARD REACH:
31.6
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:
NEW XTREME XR1547-C 15K TELEHANDLER WITH 47' MAX HEIGHT
POST DATE:
12/5/2024
Equipment Description

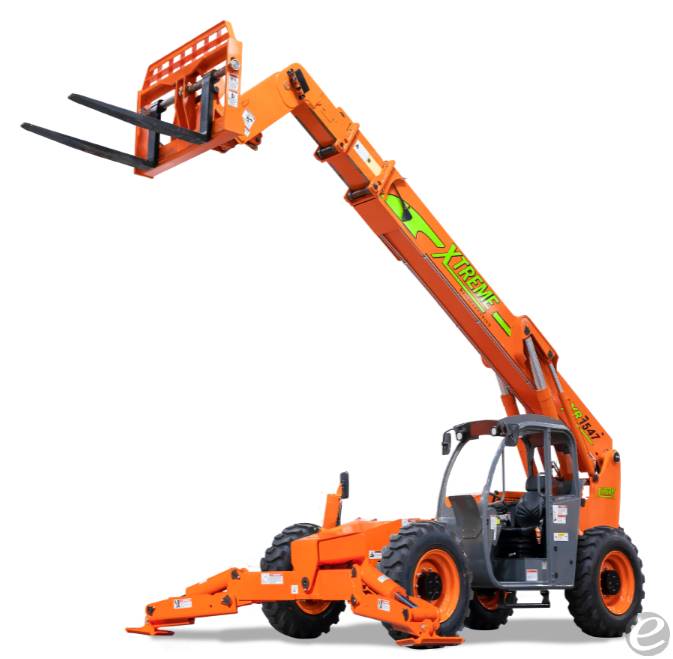

New Xtreme XR1547-C Telehandler with 15,000 lb. Capacity (Less de-rate), 47' of max lift height, 31' 6" of max forward reach, Cummins 3.8L Diesel engine - 120 hp T4f, Dana 213 axles, Dana T20000 transmission, 50gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)

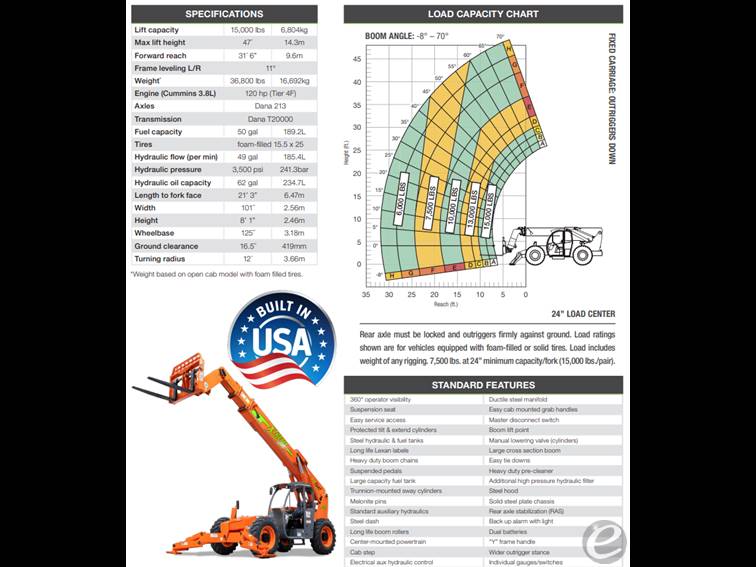

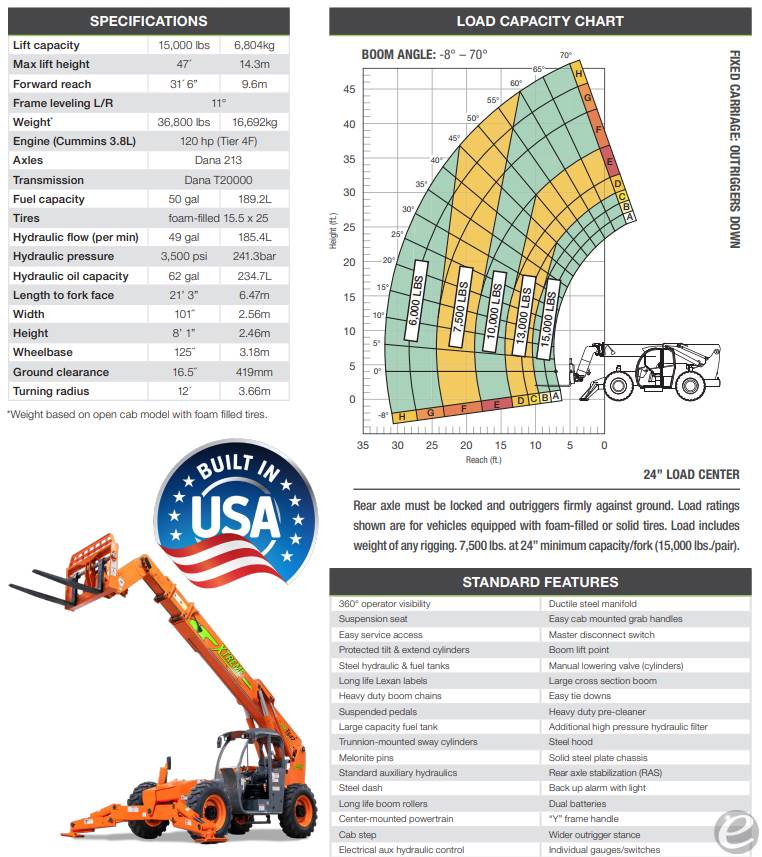

  • General Information
    • Model Number: XR1547-C
    • Manufacturer: Xtreme
    • Type: Telehandler
  • Engine Specifications
    • Fuel Type: Diesel
    • Engine Power: 120 horsepower
    • Engine Displacement: 4.5 liters
  • Dimensions and Weight
    • Total Length: 20 feet
    • Total Width: 8 feet
    • Total Height: 8.5 feet
    • Wheelbase: 10 feet
    • Operating Weight: 22,000 pounds
  • Performance Metrics
    • Lift Capacity: 15,000 pounds
    • Travel Speed: 20 mph
    • Turning Radius: 13 feet
  • Hydraulic System
    • Hydraulic Flow: 38 gallons per minute
    • System Pressure: 3,500 psi
  • Tires and Brakes
    • Tire Type: Foam filled
    • Tire Size: 15.5x25 inches
    • Brakes: Wet disc brakes
  • Cab Features
    • Seating Capacity: 1
    • Climate Control: Available
    • Instrumentation: Digital display
  • Fork Specifications
    • Fork Length: Varies
    • Fork Adjustment: Manual
