Equipment Description:

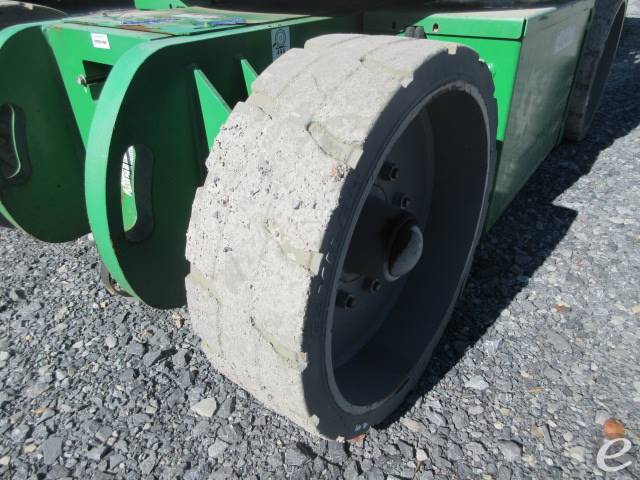

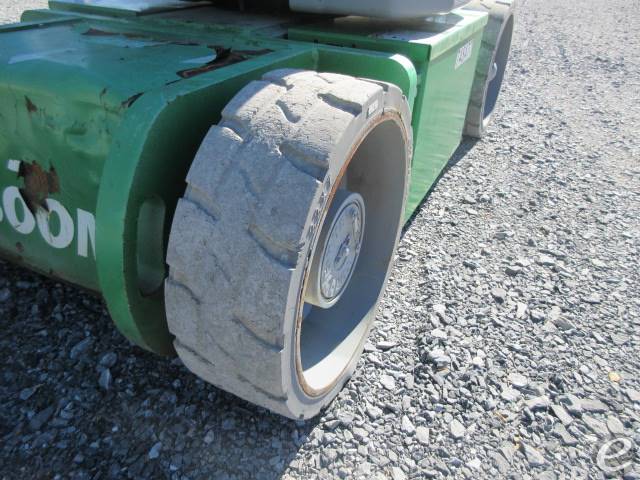

30’ Platform Height / 36’ Work Height / 20’ Horizontal Reach, 480 HOURS, DC Electric Motor (Batteries), 2WD, Non-Marking Tires, Rotating JIB

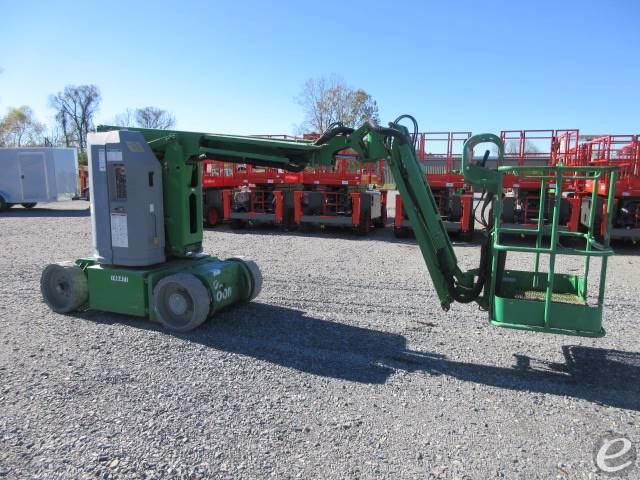

2015 Electric Genie Z-30/20N Articulated Boom

Name: 2015 Genie Z-30/20N
Brand: Genie
Price: 24950 USD
Availability: InStock

$24,950 USD

Contact Information

Foxtrot Equipment Co.
720 South Eastwood Dr. #154
Woodstock, Illinois 60098

CONTACT :

Matthew Reyes

PHONE :

Stock #:

YEAR:

2015

Manufacturer:

MODEL #:

SUBCATEGORY:

Height:

30 ft

FUEL:

Electric

CONDITION:

Used

HOUR METER:

480

LOCATION:

DESCRIPTION:

2015 Genie Z-30/20N

Equipment Description:

30’ Platform Height / 36’ Work Height / 20’ Horizontal Reach, 480 HOURS, DC Electric Motor (Batteries), 2WD, Non-Marking Tires, Rotating JIB

This product was posted on 12/3/2024

Overview
- Model: Genie Z-30/20N
- Type: Electric Articulating Boom Lift
Dimensions
- Max Working Height: 36 ft 3 in (11.14 m)
- Max Platform Height: 30 ft 3 in (9.22 m)
- Horizontal Reach: 20 ft 8 in (6.25 m)
- Up and Over Clearance: 12 ft 4 in (3.76 m)
- Platform Length: 2 ft 6 in (0.76 m)
- Platform Width: 4 ft 8 in (1.42 m)
- Height Stowed: 6 ft 6 in (1.98 m)
- Length Stowed: 18 ft 1 in (5.52 m)
- Width: 4 ft 11 in (1.50 m)
- Wheelbase: 5 ft 1 in (1.55 m)
- Ground Clearance: 3.5 in (8.89 cm)
Capacity
- Lift Capacity: 500 lbs (227 kg)
- Turntable Rotation: 180 degrees
Performance
- Drive Speed - Stowed: 3.5 mph (5.6 km/h)
- Drive Speed - Raised: 0.68 mph (1.1 km/h)
- Gradeability: 35%
- Turning Radius Inside: 5 ft 2 in (1.57 m)
- Turning Radius Outside: 11 ft 2 in (3.40 m)

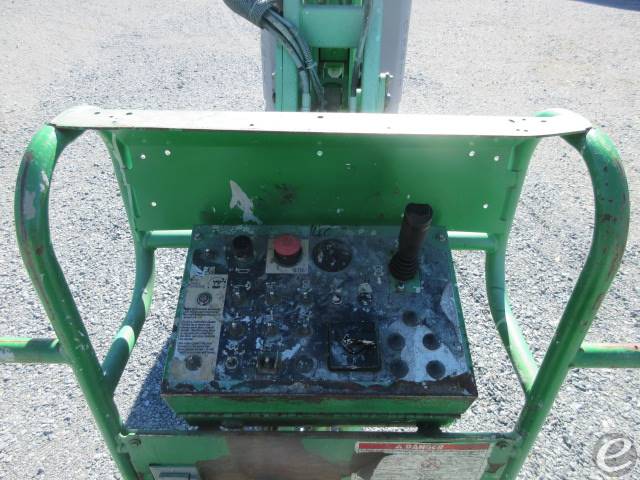

- Controls: Proportional
Power

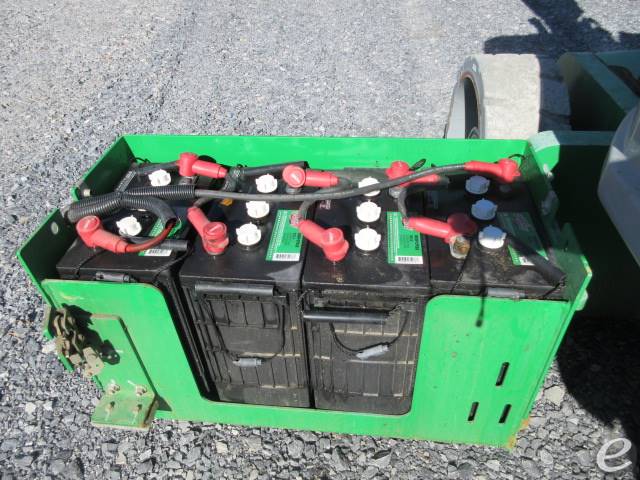

- Power Source: 48 V DC (Eight 6 V 350 Ah batteries)
- Charger: 25 A High Frequency Smart Charger
Weight
- Machine Weight: 14,100 lbs (6,396 kg)
Features
- Jib: 4 ft 11 in (1.50 m) with 139-degree range of motion
- Self-leveling Platform
- Zero Tail Swing
- Biodegradable Hydraulic Oil
- AC Wiring to Platform
