Overview
Spec Sheet
Shipping/Freight

Xtreme XR7038-F

diesel

Call for priceNew
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
38.2 ft
CAPACITY:
70000
MAX FORWARD REACH:
22
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:

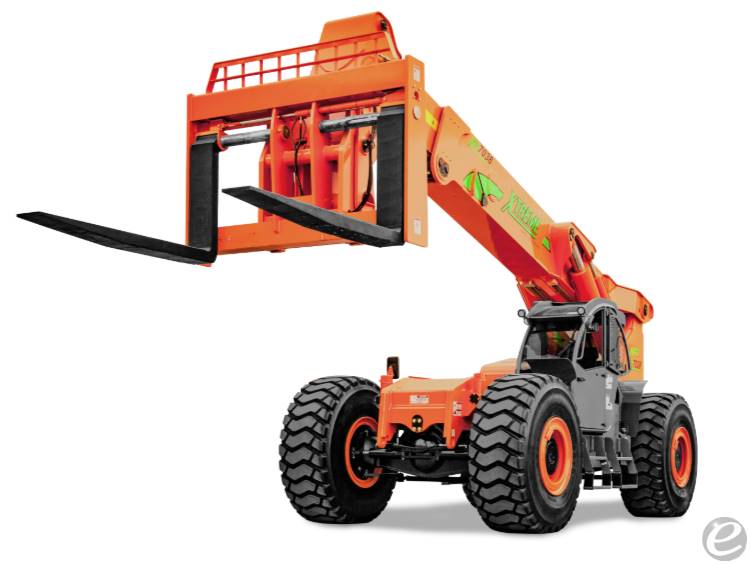

NEW XTREME XR7038-F 70K TELEHANDLER WITH 38' MAX HEIGHT
POST DATE:
12/1/2024
Equipment Description

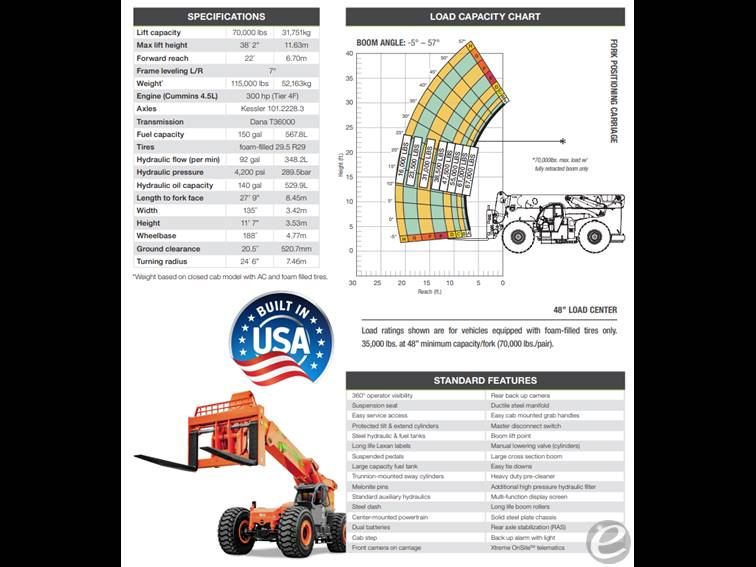

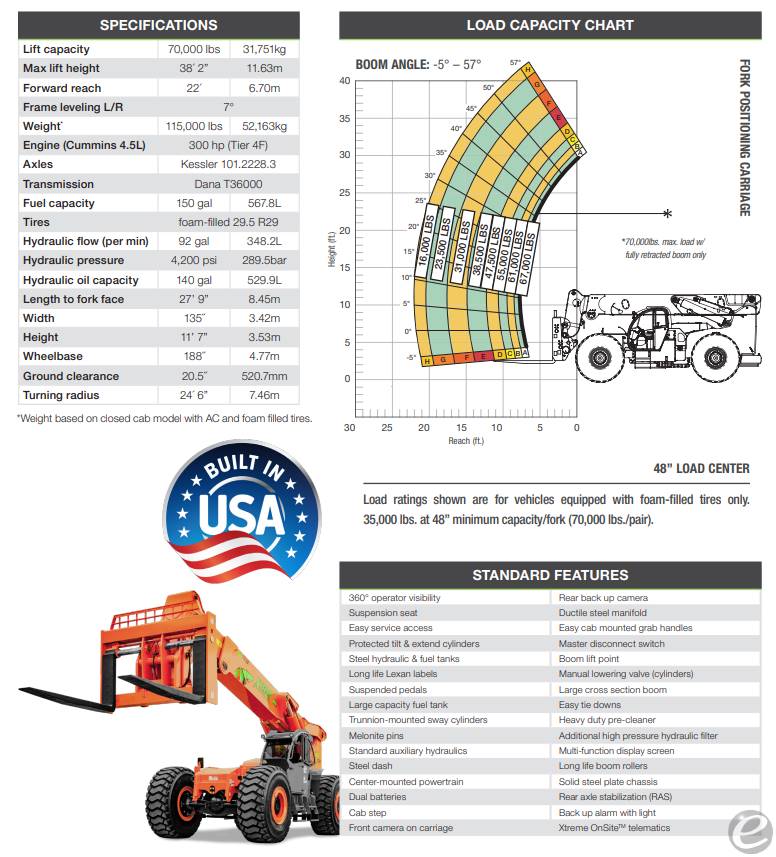

The award-winning Xtreme Manufacturing XR7038 is a large capacity forklift that lifts an incredible 70,000 lbs. (Less de-rate) for heavy duty applications. 38' 2" of max lift height, 22' of max forward reach, Cummins 4.5L Diesel engine - 300 hp T4f, Kessler 101.2228.3 axles, Dana T36000 transmission, 150gal Fuel tank, foam filled tires, suspension seat, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)
  • Make: Xtreme
  • Model: XR7038-F
  • Type: Telehandler
  • Engine Specifications:
    • Fuel Type: Diesel
    • Engine Start: Fuel Start
    • Engine Brand: DrivePower
    • Power Output: 147 hp
    • Displacement: 4.5 liters (approximately 275 cu in)
  • Performance:
    • Max Lift Capacity: 7,000 lbs
    • Max Forward Reach: 24 ft
    • Travel Speed: 20 mph
  • Dimensions:
    • Overall Length (without forks): 20 ft
    • Overall Width: 8 ft
    • Overall Height: 8.5 ft
    • Wheelbase: 10 ft
    • Ground Clearance: 1.5 ft
  • Hydraulic System:
    • Hydraulic Flow: 31 gallons per minute
    • Hydraulic Pressure: 3,625 psi
  • Axle and Tires:
    • Drive Configuration: 4x4
    • Tire Size: 16.00x24
    • Type: Foam-Filled
  • Capacity and Weight:
    • Fuel Tank Capacity: 50 gallons
    • Total Machine Weight: 26,000 lbs
