Equipment Description:

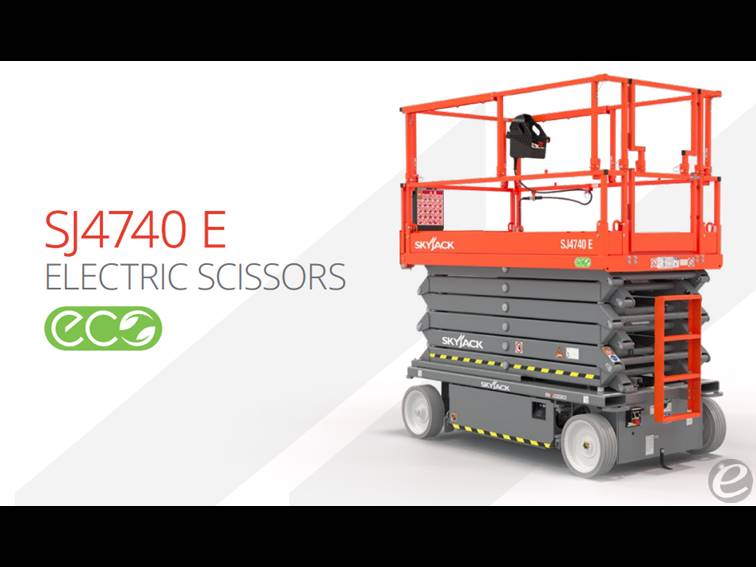

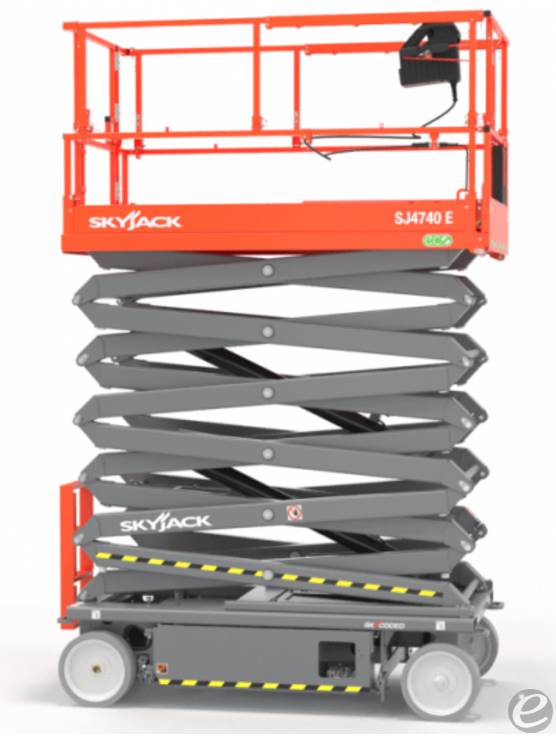

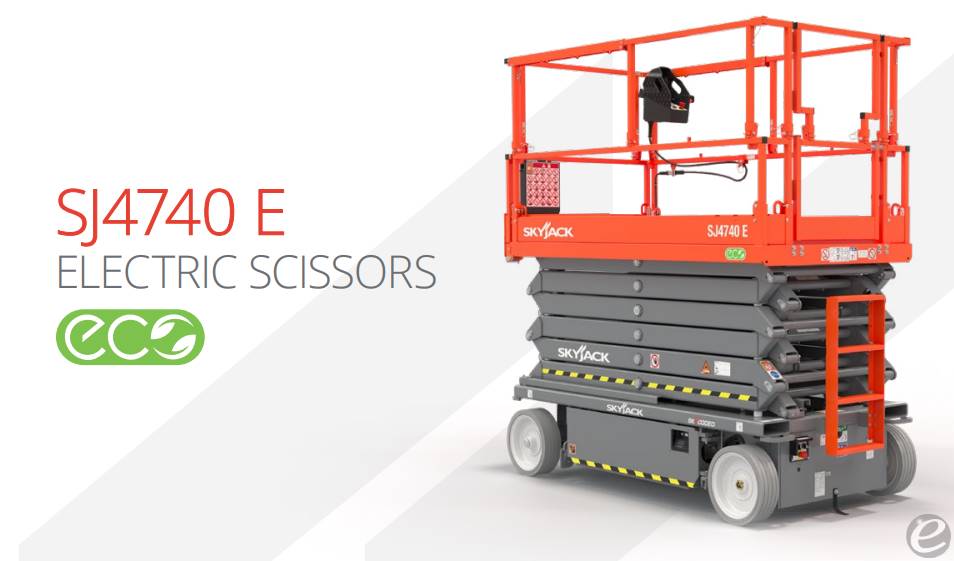

New SkyJack SJ4740E Scissor Lift with 45' of work height, 47" overall width, 95.2" overall length, foldable railing, 79/99" stowed height (rails either down/up), 3' roll out extension deck, 25% gradeability, 88 second lift speed, 770 lb. Overall capacity, operable at full height, solid non-marking tires, 24volt deep cycle battery system with charger included, plus a beautiful finish! (STOCK PHOTOS)

Electric Skyjack SJ4740E Slab

Call for priceNew

Contact Information

Western Material Handling
1113 N. College Ave
Ft Collins, Colorado 80524

CONTACT :

Dennis Firkins

PHONE :

303-625-6477

FAX :

970-224-5471

Stock #:

CHECK AVAILABILITY

Manufacturer:

Skyjack

MODEL #:

SJ4740E

Drive:

2WD

SUBCATEGORY:

Slab

Height:

44.11 ft

FUEL:

Electric

CONDITION:

New

LOCATION:

Colorado [80022]

DESCRIPTION:

NEW SKYJACK SJ4740E SCISSOR LIFT 31 LIFT 24VOLT BATTERY

Equipment Description:

This product was posted on 11/29/2024

Platform Height: 46 ft (14.0 m)
Working Height: 52 ft (15.9 m)
Platform Capacity: 550 lbs (249 kg)
Platform Capacity (Extension): 250 lbs (113 kg)
Machine Width: 3 ft 10 in (1.17 m)
Machine Length: 8 ft 3 in (2.51 m)
Stowed Height (Rails Up): 7 ft 10 in (2.40 m)
Stowed Height (Rails Down): 6 ft 6 in (1.98 m)
Platform Dimensions:
- Length: 7 ft 7 in (2.31 m)
- Width: 3 ft 9 in (1.14 m)
Extension Deck Length: 3 ft (0.91 m)
Ground Clearance (Stowed): 4 in (10.2 cm)
Ground Clearance (Raised): 0.7 in (1.8 cm)
Wheelbase: 6 ft 9 in (2.06 m)
Turning Radius (Inside): 2 ft 7 in (0.79 m)
Turning Radius (Outside): 12 ft (3.66 m)
Gradeability: 25%
Drive Speed (Stowed): 2 mph (3.2 km/h)
Drive Speed (Raised): 0.5 mph (0.8 km/h)
Lift Time (With Rated Load): 53 seconds
Lower Time (With Rated Load): 53 seconds
Power Source: 24V DC Electric
Batteries: 4 x 6V, 220Ah
Charger: 25 Amp, 24V
Total Weight: 7,214 lbs (3,272 kg)
