Skyjack SJ16E

electric vertical mast

Call for priceNew
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
SUBCATEGORY:
POWER:
Electric
Height:
21 ft
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:

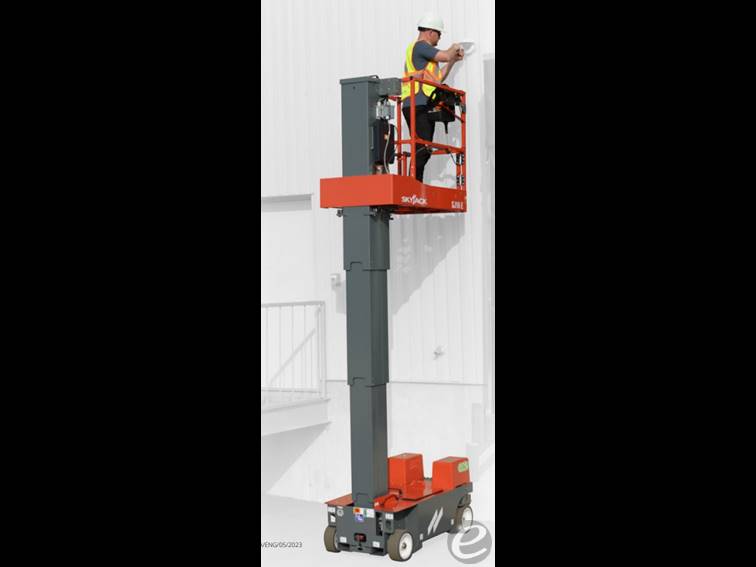

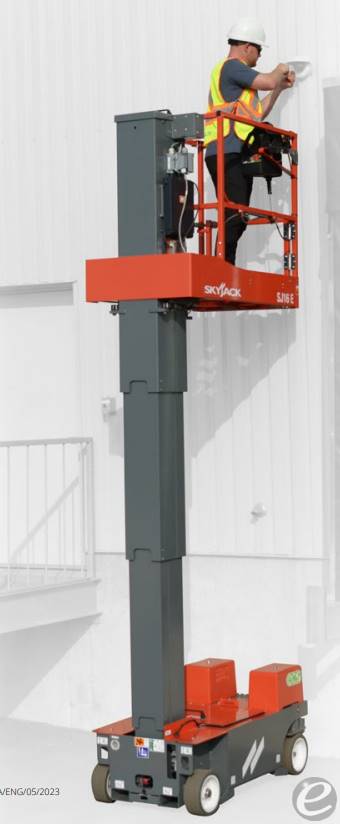

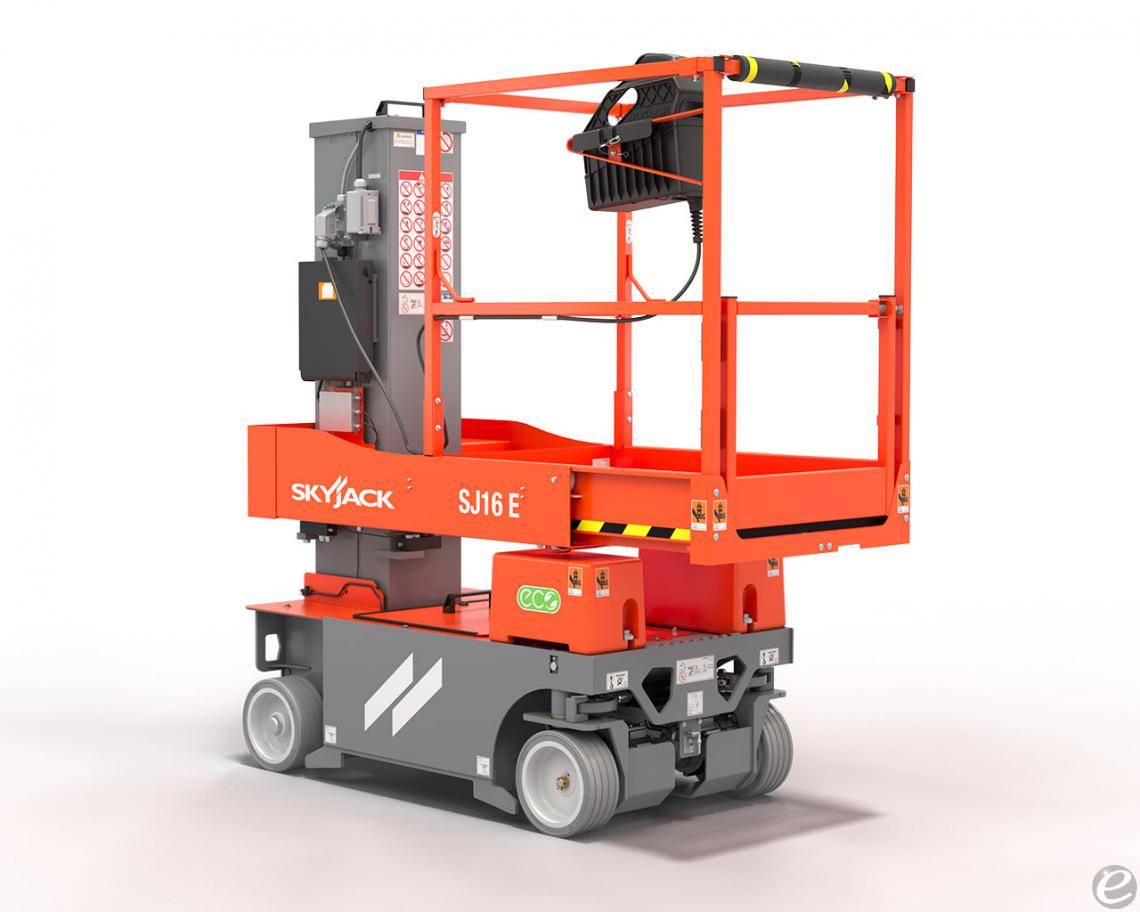

NEW SKYJACK SJ16E VERTICAL MAST PERSONNEL LIFT 21' 6" LIFT
POST DATE:
11/29/2024
Equipment Description
New SkyJack SJ16E Personnel lift with vertical mast, 21' 6" of work height, 30" overall width, 54" overall length, 74" stowed height, 16" roll out extension deck, 25% gradeability, 21 second lift speed, 500 lb. Capacity, operable at full height, solid non-marking tires, 24volt deep cycle battery system with universal smart 110volt charger with extract charging data via Bluetooth, plus a beautiful finish! (STOCK PHOTOS, OTHER SIZE/OPTIONS AVAILABLE)
  • Model Number: SJ16E
  • Manufacturer: Skyjack
  • Type: Aerial Work Platform
  • Subtype: Vertical Mast
  • Fuel Type: Electric
  • Performance:
    • Drive Speed (Platform Lowered): 3.0 mph
    • Drive Speed (Platform Elevated): 0.5 mph
    • Gradeability: 25%
    • Turning Radius (Inside): 0 inches
    • Turning Radius (Outside): 5 feet 8 inches
  • Dimensions:
    • Platform Height: 15 feet 9 inches
    • Platform Dimensions: 27 inches x 39 inches
    • Overall Width: 2 feet 6 inches
    • Overall Length: 4 feet 7 inches
    • Overall Height (Stowed): 6 feet 6 inches
    • Ground Clearance: 2 inches
  • Capacity:
    • Rated Load Capacity: 500 lbs
  • Weights:
    • Overall Weight: 2,130 lbs
  • Wheels:
    • Tire Type: Solid Non-marking
    • Wheelbase: 3 feet 4 inches
  • Power:
    • Power Source: 24V DC Electric
    • Battery Capacity: 225 Ah
    • Charger: 20 Amp
  • Additional Features:
    • Proportional Controls for Drive & Lift
    • Drivable at Full Height
    • Automatic Pothole Protection
    • Tilt Alarm with Drive & Lift Cut-out
    • Descent Alarm
    • All Motion Alarm
    • Dual Holding Brakes
    • 24V DC Power to Platform
    • Solid Rubber, Non-marking Tires
