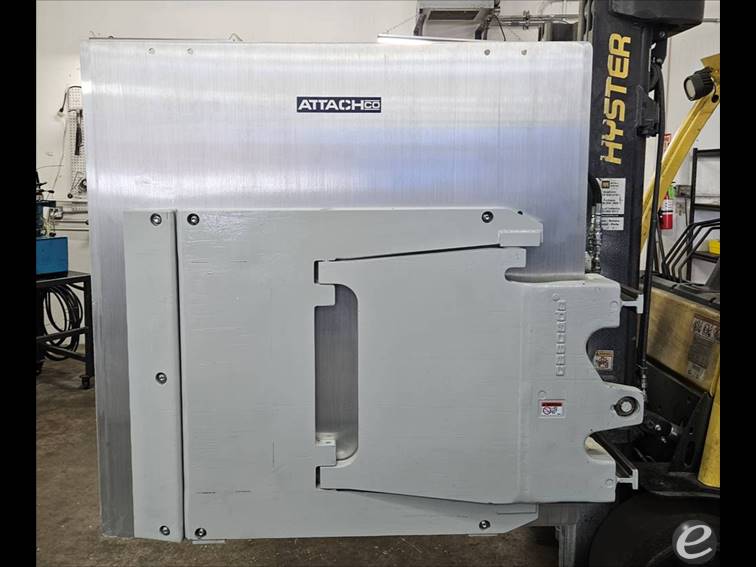

2020 Cascade 50D-CCS-142

carton clamps

$1 USDFor Rent

$1 USD per day

$1 USD per week

$1 USD per month

CONTACT INFO
Name:
Andrew Forde
Phone:
Website:

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach California 90813
ATTRIBUTES
STOCK #:
CC-165
YEAR:
2020
Manufacturer:
MODEL #:
CAPACITY:
5000
CLASS:
III
SUBCATEGORY:
SERIAL #:
PTL1888788-2
CONDITION:
Rental
LOCATION:
California [90813]
DESCRIPTION:
Class 2/3 Convertible
POST DATE:
11/15/2024
Equipment Description
Arm Height 48" Arm Length 48" Arm/Pad Standard Articulating - Aluminum Backed Capacity 5000 lbs @ 24" Load Center Design Features Shim Out Pads For Positive Camber Estimated Weight 1886 Effective Thickness 6" Frame Width 40" Horizontal Center of Gravity 18.5" Lateral CG at Max Lat Offset 9.5" Maximum Flow 15 gpm Maximum Pressure 2300 psi Max Lateral Offset 13" Minimum Flow 5 gpm Min Truck Carriage Width Req 37" Mounting Size Class III] Mounting Type Bolt On Opening Range 21" Min to 73" Max Pad Facing 5/8" Thick Pad - Aluminum Backed, 55 Durometer Rubber Product Function Carton Clamp Recommended Flow 12 gpm Required Truck Aux Functions 2 Sideshift Yes Size/Gen 50D Vertical Center of Gravity 14.5"
  • Model Number: 50D-CCS-142
  • Manufacturer: Cascade
  • Type: Attachment
  • Subtype: Carton Clamps
  • Dimensions:
    • Arm Thickness: Approx. 2.95 inches
    • Overall Width: Approx. 55.91 inches
    • Height: Approx. 38.98 inches
    • Opening Range: Approx. 5.91 inches to 142.13 inches
  • Performance:
    • Load Capacity: Approx. 5,000 lbs
    • Clamping Force: Adjustable
    • Tilt Angle: ± 5 degrees
  • General Features:
    • Surface Type: Rubber-coated contact pads
    • Hydraulic System: Dual cylinder, independent circuit
    • Mounting Type: Hook-on/Quick disconnect
  • Compatibility:
    • Fork Size: Varies
    • Mounting: Class II/III
  • Additional Features:
    • Pressure Relief Valve
    • Backrest Options Available
    • Side Shift Functionality: Optional
