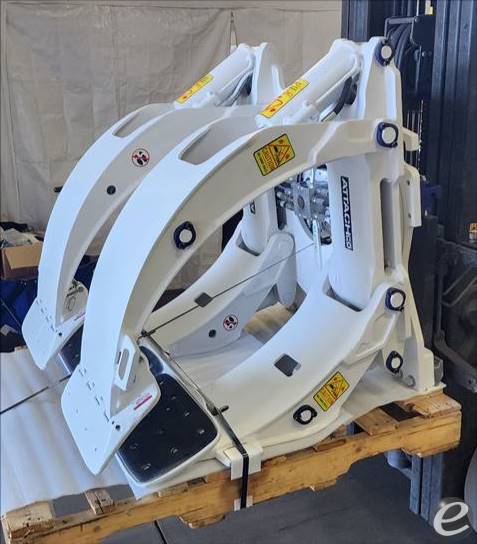

2020 Cascade 25H-RDP-B801R0

paper roll clamps

$1 USDBuy or Rent

$1 USD per day

$1 USD per week

$1 USD per month

Instant Quote Eligible Listing - CLICK HERE!
ATTACHCO
CONTACT INFO
Name:
Andrew Forde
Phone:
Website:

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach California 90813
ATTRIBUTES
STOCK #:
PRC-024
YEAR:
2020
Manufacturer:
MODEL #:
CAPACITY:
5500
CLASS:
III
SUBCATEGORY:
SERIAL #:
PTL1018811-1RO
CONDITION:
Used/Rental
LOCATION:
California [90813]
DESCRIPTION:
25.5" Load Center for Up To 51" Rolls
POST DATE:
11/14/2024
Equipment Description
Arm Powered Long Arm & Positioned Short Arm Arm Split Long Arm for Two Roll Handling Arm/Pad Solid Pad on Short Arm Attachment 360 Degree Revolving Capacity 5500 lbs at 25.5" Estimated Weight 1,539 lbs Effective Thickness 7.7 Inches Horizontal Center of Gravity 10.5 Inches To Handle Max Roll Diameter 51 Inches To Handle Min Roll Diameter 8 Inches Mounting Type Bolt On Mounting Size Class III, Zero Degree Pad Facing Bolt On Black Non- Marking Rubber Pad Height 39.4 inches, Split Pad 7.9" Gap Pad Width 9.5 inches Product Function Paper Roll Clamp Vertical Center of Gravity 16.7 Inches
  • Model Number: 25H-RDP-B801R0
  • Manufacturer: Cascade
  • Type: Attachment
  • Subtype: Paper Roll Clamps
Specifications
  • Design: Rotating
  • Capacity:
    • Minimum Roll Diameter: 12 inches
    • Maximum Roll Diameter: 80 inches
    • Load Capacity: 5,500 pounds
  • Arm Dimensions:
    • Arm Thickness: 2.36 inches
    • Pad Length: Varies
Performance
  • Rotation: 360 degrees continuous rotation
  • Clamping Force:
    • Variable pressure control
    • Adjustable pressures with a range to suit different paper types
  • Adjustment Range:
    • Wide adjustment range for handling varied roll diameters
Features
  • Damage Reduction: Options for custom pad surfaces to reduce potential damage to rolls
  • Visibility: Designed for optimal visibility during operation
  • Durability: Heavy-duty construction designed for reliability in demanding environments
  • Compatibility: Suited for integration with various forklift models
Requirements
  • Hydraulic System: Requires hydraulic system capable of supporting attachment
  • Power Supply: Compatible with standard forklift hydraulic power supplies
Operation and Maintenance
  • Ease of Use: User-friendly controls for efficient operation
  • Maintenance: Built for low maintenance to minimize downtime
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
