Equipment Description:

New Genie GS-4655 Electric scissor lift with 770 lb. Lifting capacity, 24volt lead acid battery system with onboard 110volt charger, slide out extension deck, AC power to platform, diamond plate platform deck, dual LED beacon, lanyard attachment points, platform control guard, platform load sense system, SmartLink dual zone controls, auxiliary platform lowering, drivable at full height, pothole guards, rear fork pockets, non-marking tires, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)

Electric Genie GS-4655 Slab

Call for priceNew

Contact Information

Western Material Handling
1113 N. College Ave
Ft Collins, Colorado 80524

CONTACT :

Dennis Firkins

PHONE :

303-625-6477

FAX :

970-224-5471

Stock #:

CHECK AVAILABILITY

Manufacturer:

Genie

MODEL #:

GS-4655

Drive:

2WD

SUBCATEGORY:

Slab

Height:

51 ft

FUEL:

Electric

CONDITION:

New

LOCATION:

Colorado [80022]

DESCRIPTION:

NEW GENIE GS-4655 ELECTRIC SCISSOR LIFT 45' WORKING HEIGHT

Equipment Description:

This product was posted on 11/14/2024

Overview

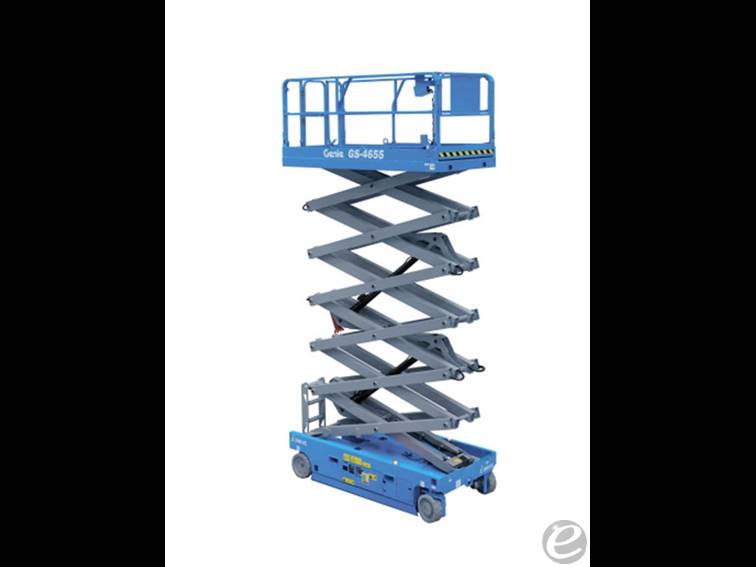

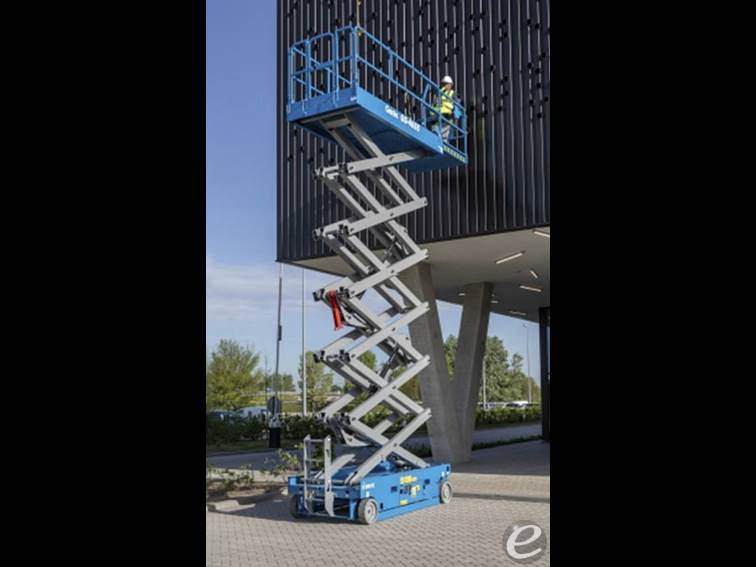

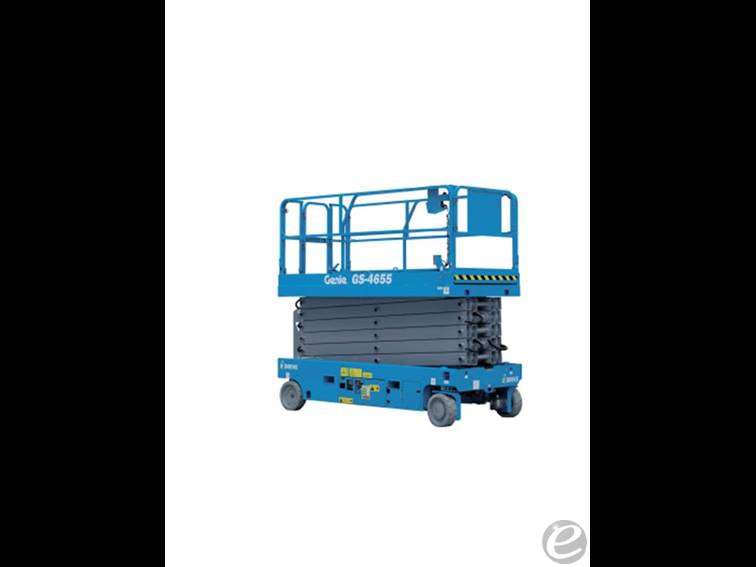

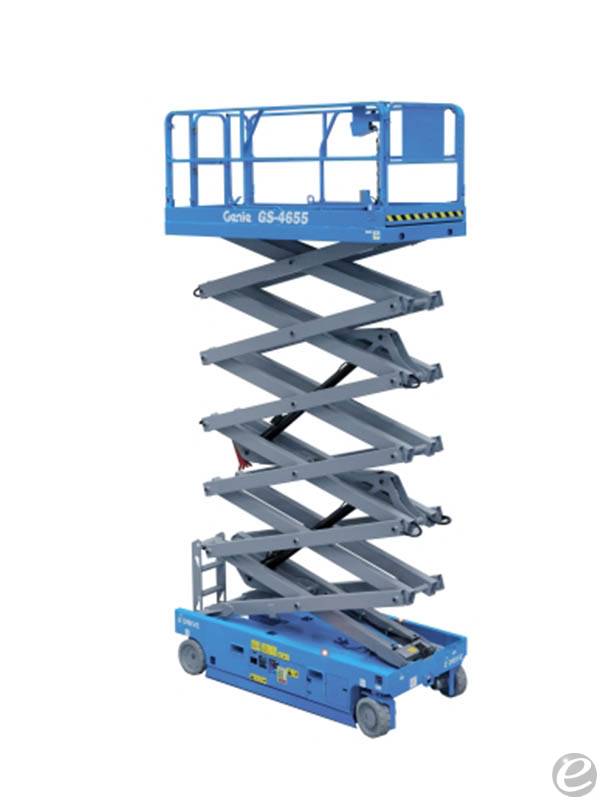

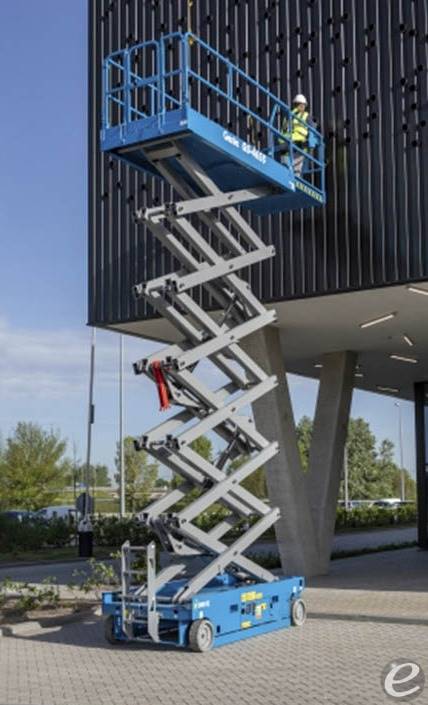

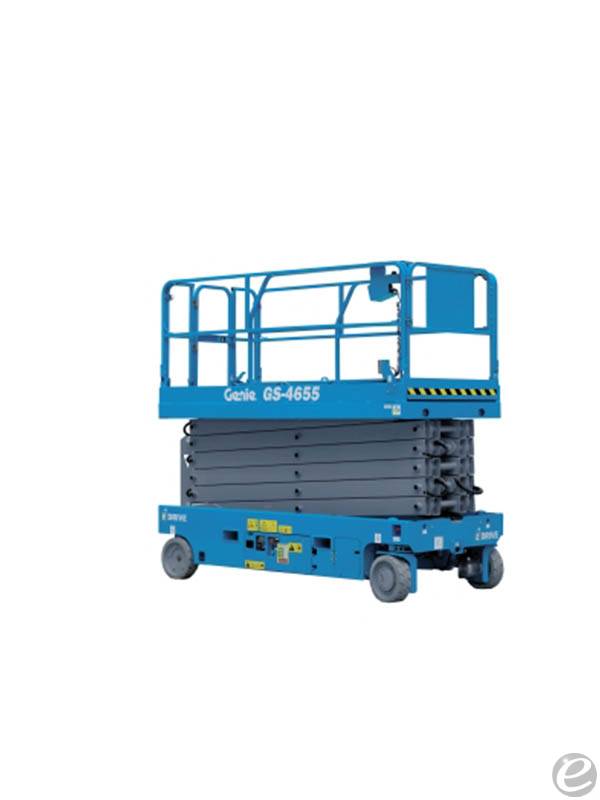

Genie GS-4655 is an electric scissor lift.
Engineered for indoor and outdoor applications.
Environmentally friendly with zero emissions.

Dimensions

Maximum Platform Height: 45 ft 6 in (13.94 m).
Maximum Working Height: 51 ft 6 in (15.94 m).
Overall Length: 8 ft 11 in (2.72 m).
Overall Width: 4 ft 9 in (1.45 m).
Height - Stowed: 7 ft 6 in (2.29 m).
Height - Rails Folded: 6 ft 7 in (2.00 m).

Performance

Lift Capacity: 770 lbs (350 kg).
Drive Speed - Stowed: 2.5 mph (4.0 km/h).
Drive Speed - Raised: 0.5 mph (0.8 km/h).
Gradeability: 25%.

Power

Power Source: 24 V DC (8 x 6V 315 Ah batteries).
Hydraulic System Capacity: 1.85 gal (7 L).

Operational

Platform Length: 8 ft 2 in (2.48 m).
Platform Extension: 3 ft (0.91 m).
Platform Extension Capacity: 249 lbs (113 kg).

Safety Features

Emergency Stop at both platform and ground controls.
Automatic 1.2° Levelling Jack System for outdoor use.
Proportional lift and drive controls for precise positioning.

Usage

Intended for construction, maintenance, and installation tasks.
Suitable for applications requiring access to high and tight spaces.
