Equipment Description:

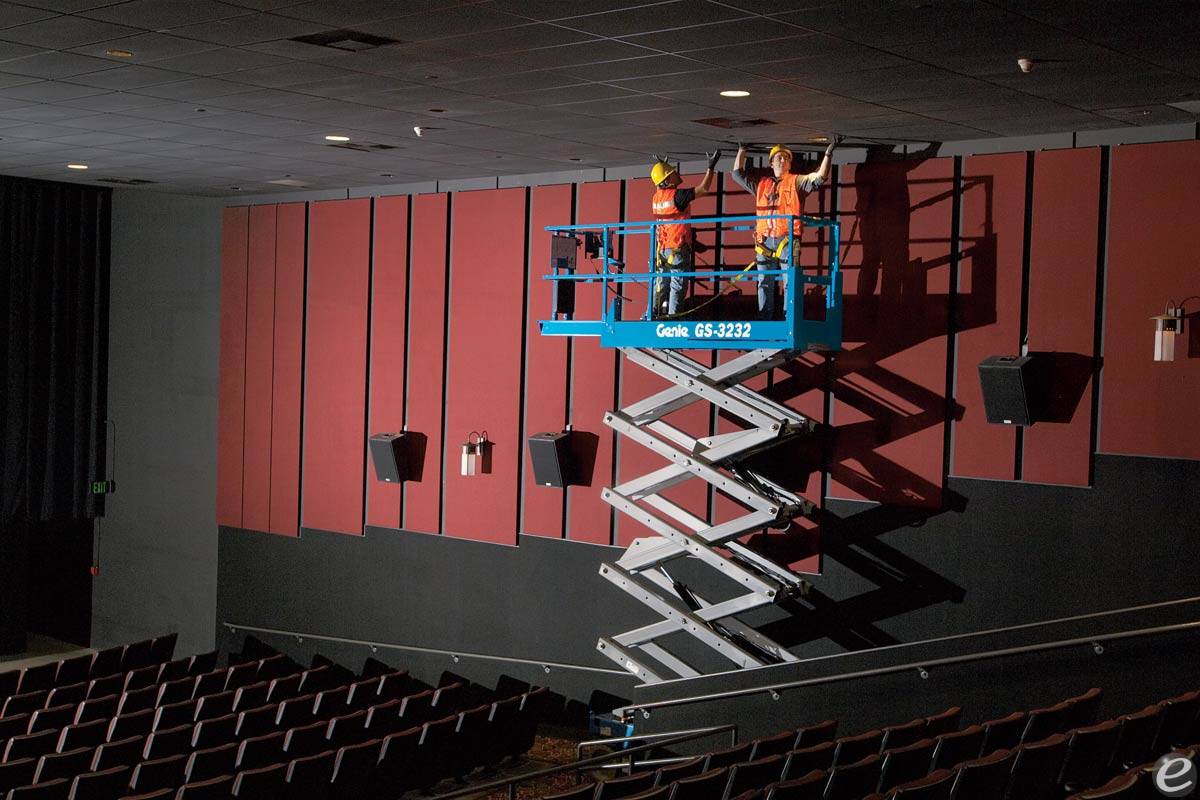

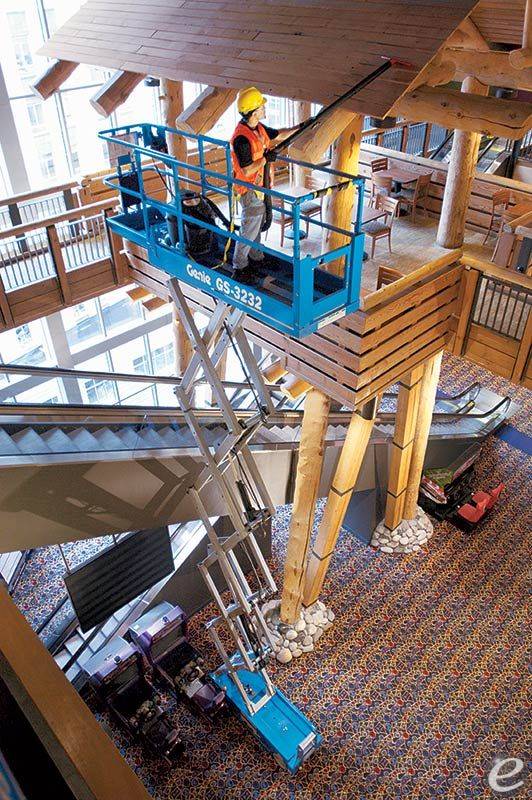

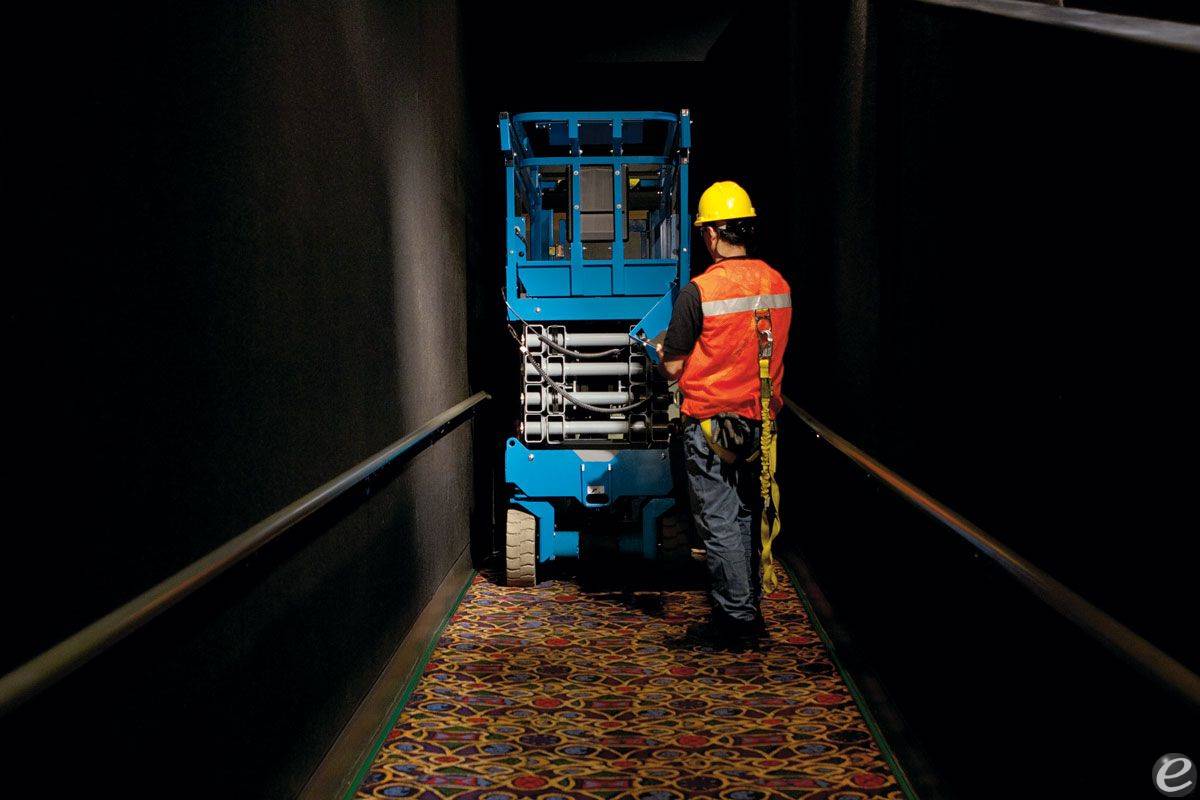

New Genie GS-3232 Electric scissor lift with 500 lb. Lifting capacity, 24volt lead acid battery system with onboard 110volt charger, slide out extension deck, AC power to platform, diamond plate platform deck, dual LED beacon, lanyard attachment points, platform control guard, platform load sense system, SmartLink dual zone controls, auxiliary platform lowering, drivable at full height, pothole guards, rear fork pockets, non-marking tires, plus a beautiful finish! (STOCK PHOTOS, OTHER SIZE/OPTIONS AVAILABLE)

Electric Genie GS-3232 Slab

Call for priceNew

Contact Information

Western Material Handling
1113 N. College Ave
Ft Collins, Colorado 80524

CONTACT :

Dennis Firkins

PHONE :

303-625-6477

FAX :

970-224-5471

Stock #:

CHECK AVAILABILITY

Manufacturer:

Genie

MODEL #:

GS-3232

Drive:

2WD

SUBCATEGORY:

Slab

Height:

38 ft

FUEL:

Electric

CONDITION:

New

LOCATION:

Colorado [80022]

DESCRIPTION:

NEW GENIE GS-3232 ELECTRIC SCISSOR LIFT 38' WORKING HEIGHT

Equipment Description:

This product was posted on 11/14/2024

Platform Height
- Max platform height: 32 ft (9.75 m)
Working Height
- Max working height: 38 ft (11.58 m)
Lift Capacity
- Lift capacity: 500 lbs (227 kg)
Platform Dimensions
- Platform length: 7 ft 6 in (2.26 m)
- Platform width: 2 ft 8 in (0.81 m)
- Extension deck length: 3 ft (0.91 m)
Machine Dimensions
- Stowed height: 7 ft 10 in (2.39 m)
- Stowed height with railings: 7 ft 10 in (2.39 m)
- Stowed height without railings: 6 ft 6 in (1.98 m)
- Overall width: 2 ft 8 in (0.81 m)
- Length: 8 ft 1 in (2.46 m)
Power
- Power source: 24 V DC (four 6V 225Ah batteries)
- Battery charger: 20 amp
Performance
- Drive speed - stowed: 2.5 mph (4.0 km/h)
- Drive speed - raised: 0.5 mph (0.8 km/h)
- Turning radius - inside: 0 degree
- Turning radius - outside: 7 ft 5 in (2.26 m)
- Gradeability: 25%
Weight
- Total weight: 5,185 lbs (2,352 kg)
Hydraulics
- Hydraulic tank capacity: 3.8 gal (14.4 L)
Tires
- Tire size: 15 x 5 in (38 x 13 cm)
