Equipment Description:

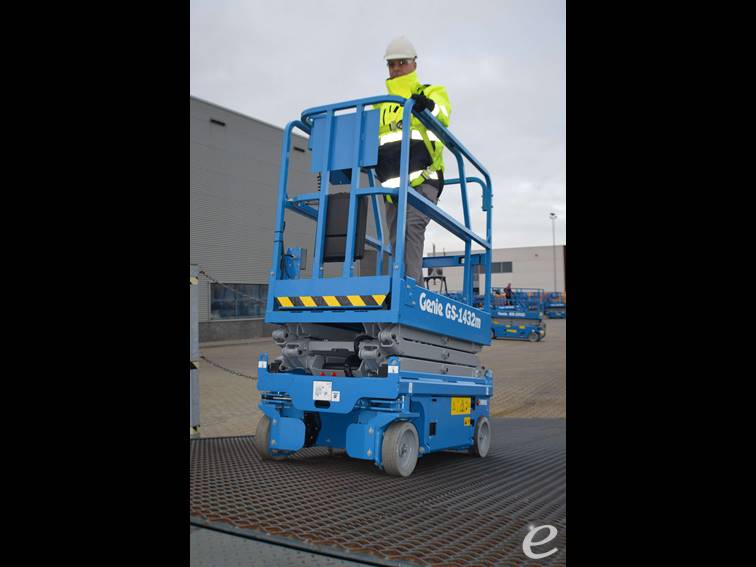

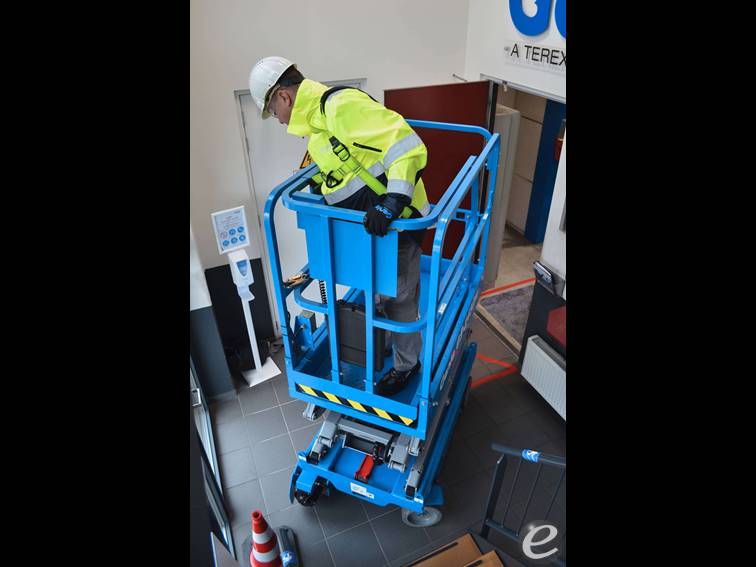

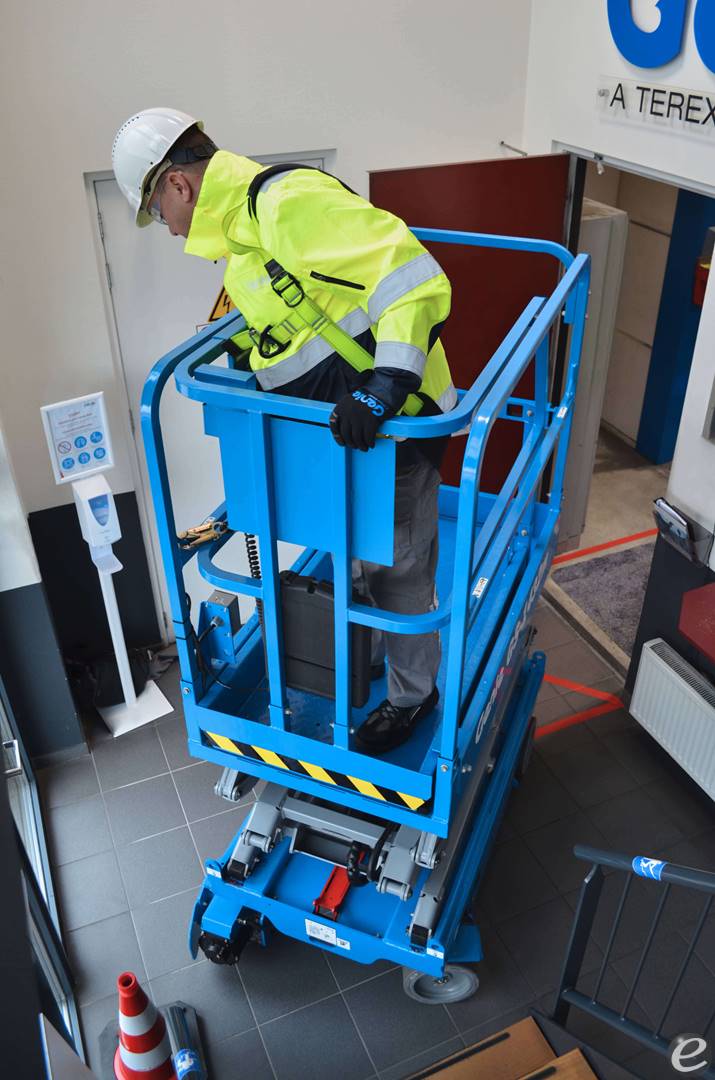

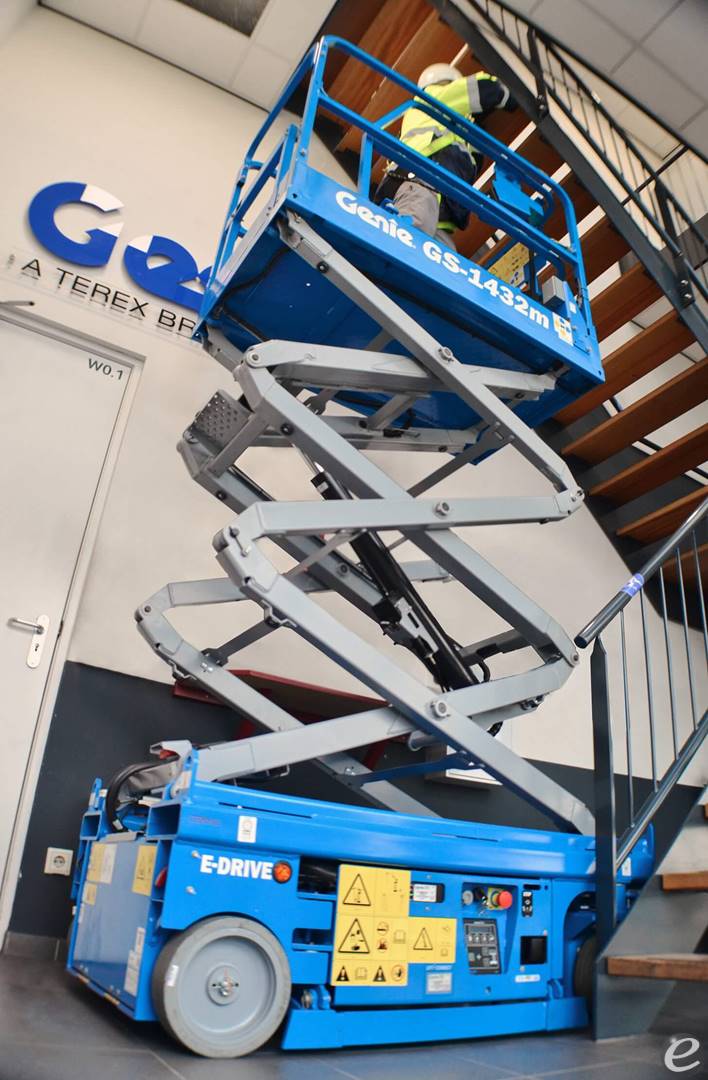

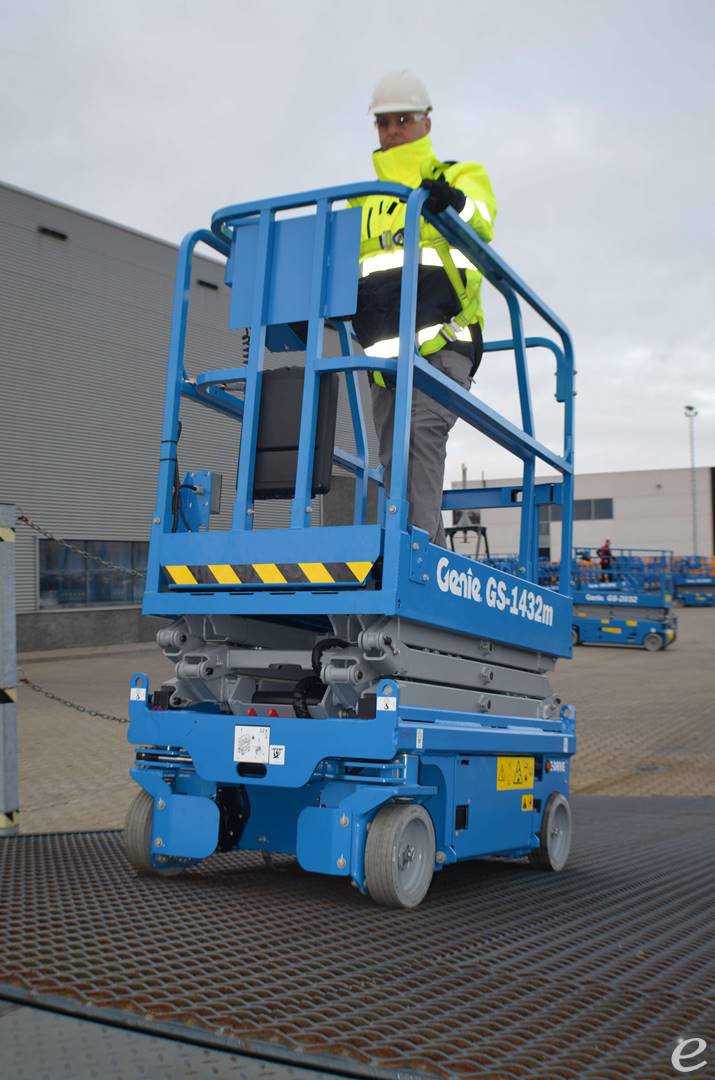

New Genie GS-1432m Electric scissor lift with 500 lb. Lifting capacity, 24volt lead acid battery system with onboard 110volt charger, slide out extension deck, AC power to platform, diamond plate platform deck, dual LED beacon, lanyard attachment points, platform control guard, platform load sense system, SmartLink dual zone controls, auxiliary platform lowering, drivable at full height, pothole guards, rear fork pockets, non-marking tires, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)

Electric Genie GS-1432m Slab

Call for priceNew

Contact Information

Western Material Handling
1113 N. College Ave
Ft Collins, Colorado 80524

CONTACT :

Dennis Firkins

PHONE :

303-625-6477

FAX :

970-224-5471

Stock #:

CHECK AVAILABILITY

Manufacturer:

Genie

MODEL #:

GS-1432m

Drive:

2WD

SUBCATEGORY:

Slab

Height:

20 ft

FUEL:

Electric

CONDITION:

New

LOCATION:

Colorado [80022]

DESCRIPTION:

NEW GENIE GS-1432m ELECTRIC SCISSOR LIFT 20' WORKING HEIGHT

Equipment Description:

This product was posted on 11/14/2024

Platform Height: 14 ft
Working Height: 20 ft
Lift Capacity: 500 lbs
Machine Width: 2 ft 8 in
Machine Length: 4 ft 6 in
Machine Height: 6 ft 6 in (rails up) / 4 ft 6 in (rails down)
Wheelbase: 3 ft 6 in
Ground Clearance: 2 in
Platform Dimensions: Length: 4 ft 1 in, Width: 2 ft 5 in
Extension Deck Length: 21.6 in
Drive Speed: Stowed: 2.5 mph, Elevated: 0.5 mph
Turning Radius: Inside: 5 in, Outside: 5 ft 1 in
Power Source: 24 V DC (four 6V/210 Ah batteries)
Gradeability: 25%
Weight: 2,051 lbs
Tire Type: Solid, non-marking
Control System: Proportional control system
Brakes: Dual rear wheel brakes
Hydraulic System Capacity: 1.3 gal
Battery Charger: Smart charger
Standards Compliance: ANSI A92.20
