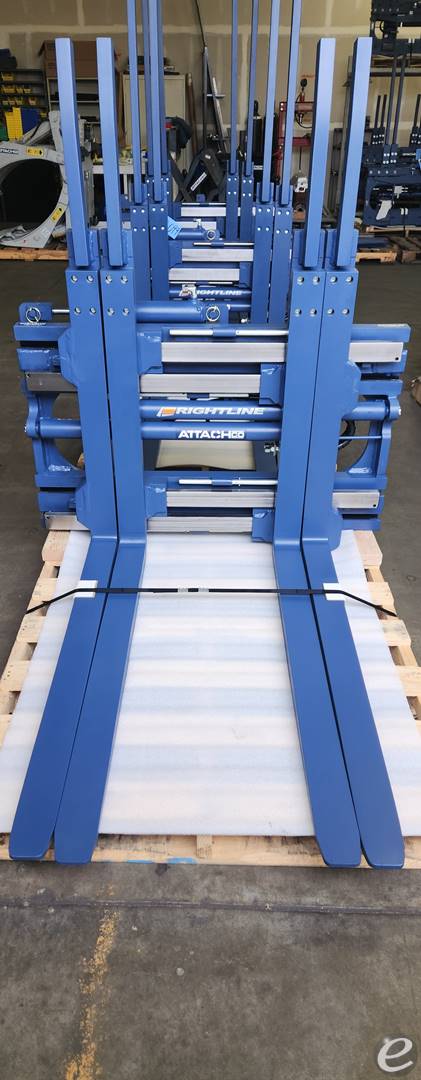

2016 Rightline LP5C-C5BZ-C

multi pallet handlers

$1 USDFor Rent

$1 USD per day

$1 USD per week

$1 USD per month

Instant Quote Eligible Listing - CLICK HERE!
ATTACHCO
CONTACT INFO
Name:
Andrew Forde
Phone:
Website:

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach California 90813
ATTRIBUTES
STOCK #:
SD-133
YEAR:
2016
Manufacturer:
MODEL #:
CAPACITY:
5500
CLASS:
II
SUBCATEGORY:
SERIAL #:
161608
CONDITION:
Rental
LOCATION:
California [90813]
DESCRIPTION:
Class 2/3 Convertible
POST DATE:
11/13/2024
Equipment Description
Capacity 5500 lbs. @ 24 in. load center Dual Mode Max 79.8 in. Dual Mode Min. 57.6 in. Dual Mode Fork Spread Min 5.0 in. Dual Fork Mode Max 27.2 in. Fork Length (In) 42.0 in. Fork Spread 26.3 in Fork Thickness 1.97 in. (50MM) Fork Width 3.15 in. (80MM) Frame Width 42.0 in Horizontal Center of Gravity 7.9 in. Load Back Rest Height 80.0 in. Lost Load 7.7 in. Lower Hook bolt-on Maximum Flow 8.0 gpm Maximum Pressure 2250 psi Minimum Flow 4.0 gpm Min Truck Carriage Width Req 36.0 in. Mounting Class ITA II & III Recommended Flow 6.0 gpm Recommended Pressure 2000 psi Required Truck Aux Functions 2 FUNCTION Single Mode ID Max 27.2 in Single Mode ID Min 13.7 in. Single Mode OD Max 39.8 in. Single Mode OD Min 26.3 in. Total Shift 7.88 in. Total Weight 1214 lbs Vertical Center of Gravity 14.9 in
  • General Specifications
    • Manufacturer: Rightline
    • Model: LP5C-C5BZ-C
    • Type: Forklift
    • Power Source: Liquid Propane
  • Dimensions
    • Total Length: Approximately 12.5 feet
    • Width: 3.9 feet
    • Height (Overhead Guard): 7.1 feet
  • Weight
    • Operating Weight: Approximately 9,000 lbs
  • Performance
    • Load Capacity: 5,000 lbs
    • Travel Speed: 11 mph
  • Engine
    • Type: Internal Combustion
    • Fuel Type: Liquid Propane
    • Power Output: 55 HP
  • Fork Details
    • Fork Length: Varies
    • Fork Width: 4 inches
  • Tires
    • Tire Type: Pneumatic
    • Tire Size Front: 18 x 7-8
    • Tire Size Rear: 16 x 6-8
  • Operators Area
    • Seating: Driver seat with safety belt
    • Control Type: Hydraulic Levers
    • Steering: Power Steering
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
