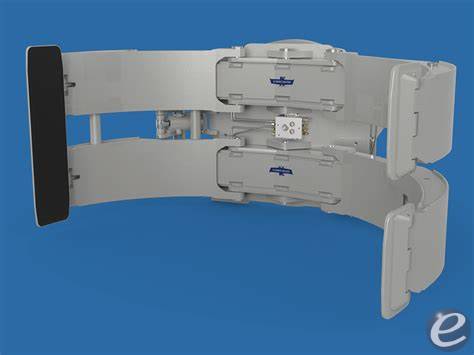

2020 Cascade 34H-RCP-4A-0025

paper roll clamps

$1 USDBuy or Rent

$1 USD per day

$1 USD per week

$1 USD per month

Instant Quote Eligible Listing - CLICK HERE!
ATTACHCO
CONTACT INFO
Name:
Andrew Forde
Phone:
Website:

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach California 90813
ATTRIBUTES
STOCK #:
PRC-051
YEAR:
2020
Manufacturer:
MODEL #:
CAPACITY:
7500
CLASS:
IV
SUBCATEGORY:
SERIAL #:
PTL2701624-2R2
CONDITION:
Used/Rental
LOCATION:
California [90813]
POST DATE:
11/13/2024
Equipment Description
Arm Powered Long Arm and Positioned Short Arm Attachment 360 Degree Revolving Capacity 7500 lbs Estimated Weight 2170 LBS Effective Thickness 8" Horizontal Center of Gravity 12.3" Load Center 30" Maximum Flow 15 gpm Maximum Pressure 2300 psi To Handle Max Roll Diameter 60" Minimum Flow 5 gpm Min Truck Carriage Width Req 38.5" To Handle Min Roll Diameter 8" Mounting Size Class IV, Zero Degree Mounting Type Bolt On Pad Facing Ribbed Herringbone Pad Height 40" Pad Width 10" Recommended Flow 10 gpm Required Truck Aux Functions 2 Size/Gen 34H Total Attachment Functions 2 Vertical Center of Gravity 19.6"
  • Manufacturer: Cascade
  • Model Number: 34H-RCP-4A-0025
  • Type: Attachment
  • Subtype: Paper Roll Clamps
  • Dimensions & Capacities:
    • Clamp Opening Range: Approximately 2 inches to 67 inches
    • Arm Length: Varies
    • Frame Width: Approximately 47 inches
    • Weight: Approximately 1,500 lbs
    • Maximum Roll Diameter: Up to 67 inches
    • Minimum Roll Diameter: Approximately 2 inches
  • Performance:
    • Load Capacity: 5,500 lbs
    • Optimal Operating Pressure: 2,000 psi
    • Hydraulic Flow: Minimum 7 gal/min
  • Features:
    • Side shifting function for better maneuverability
    • Non-marking rubber pads to protect paper rolls
    • 360-degree rotation capability
    • Durable construction for heavy-duty use
    • Compatible with various forklift models
  • Operational Requirements:
    • Requires hydraulic system
    • Mounting Class: Varies based on specific forklift configuration
