Equipment Description:

Attachment Non-Sideshifting Bin Dimensions - Height - Max 48" Bin Dimensions - Height - Min 24" Bin Dimenstions - Depth 48" Bin Dimensions - Width 48" Capacity 4000 lbs @ 24" load center Design Features 130 Degrees Forward Tilt Estimated Weight 1390 lbs Effective Thickness 9.5" Fixed Fork Range (Out to Out) 30" Fork Length (In) 47" Fork Thickness 1.6" Fork Width 4" Horizontal Center of Gravity 14" Maximum Flow 10 gpm Maximum Pressure 2300 psi Minimum Flow 5 gpm Mounting Size Class III/II Mounting Type bolt-on Recommended Flow 7.5 gpm Required Truck Aux Functions 1 Total Attachment Functions 1 Vertical Center of Gravity 7"

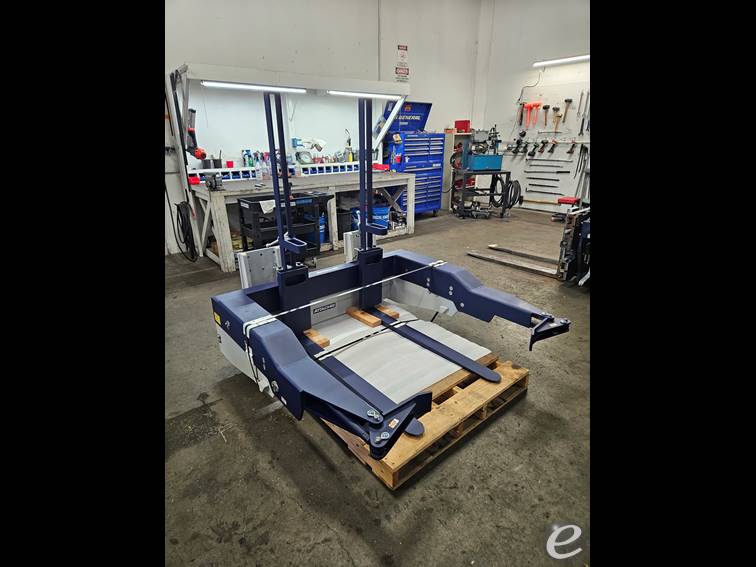

2012 Cascade Bin Dumper Model 40D - 42037R0f Specialized & Other

Name: 2012 Cascade Bin Dumper Model 40D - 42037R0f
Brand: Cascade
SKU: BD-016
Price: 1 USD
Availability: InStock

$1 USDFor Rent

$1 USD per day

$1 USD per week

$1 USD per month

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

ATTACHCO
665 W Cowles St
Long Beach , California 90813

CONTACT :

Andrew Forde

PHONE :

310-308-9893

Stock #:

BD-016

YEAR:

2012

Manufacturer:

Cascade

MODEL #:

Bin Dumper Model 40D - 42037R0f

CAPACITY:

4000

CLASS:

III

SUBCATEGORY:

Specialized & Other

SERIAL #:

SPR1229118-3R0

CONDITION:

Rental

LOCATION:

California [90813]

Equipment Description:

This product was posted on 11/11/2024

Capacity:
- 4,000 lbs (approximately 1,814 kg)
Bin Width Range:
- Minimum: 36 inches (approximately 914 mm)
- Maximum: 60 inches (approximately 1,524 mm)
Fork Pocket Centers:
- 28 to 31 inches (approximately 711 mm to 787 mm) adjustable range
Hydraulic Pressure:
- 1,500 to 2,000 psi (approximately 103 to 138 bar) operating range
Hydraulic Flow:
- 5 to 8 gallons per minute (GPM) (approximately 19 to 30 liters per minute)
Weight:
- Approximately 1,620 lbs (approximately 735 kg)
Bin Holding Capability:
- Handles various types of bins for multiple applications
Dumping Angle:
- 135 degrees
Dump Cycle Time:
- Approximately 10 to 15 seconds (depends on hydraulic settings)
Attachment Type:
- Class II and Class III forklift carriage mount
Material Construction:
- High-strength steel for durability and longevity
Safety Features:
- Secure bin clamping mechanism for operator safety
- Non-skid surfaces on critical contact points
Optional Features:
- Custom bin adapters for specific applications
- Additional safety and ergonomic enhancements
