Equipment Description:

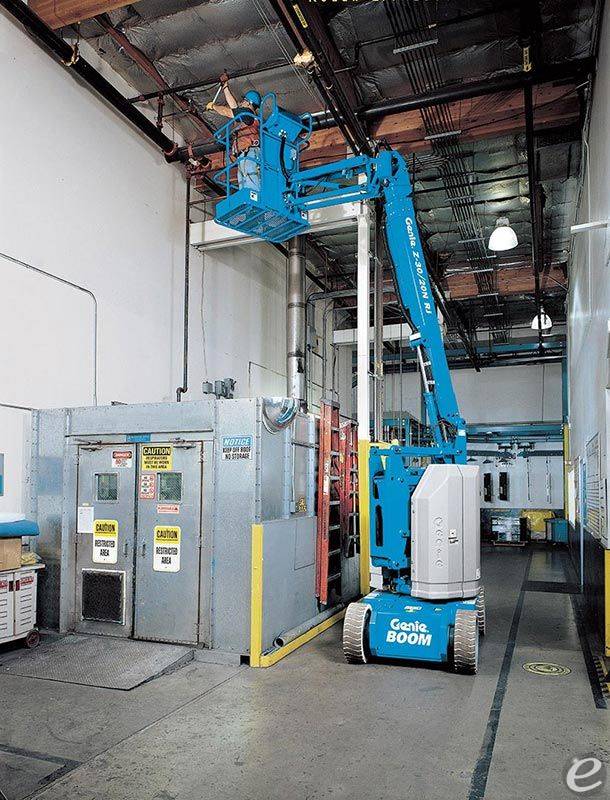

New Genie Z-30/20N Electric Articulating Boom Lift with 2WD, Standard FLA flooded lead acid battery, 3' 10" steel platform, 4ft/1.2m Jib, AC Power cord to platform, Drive enable system, Horn, Lift Guard Contact Alarm, Platform load sense system, Proportional controls, Self-leveling platform, Travel alarm package: flashing beacons, descent, travel and tilt alarms, Lift Connect Telematics, Chassis tilt drive function cut-out, Dual parallelogram lift linkage, Solid non-marking tires, Zero tail swing, plus a beautiful finish! (STOCK PHOTOS, OTHER OPTIONS AVAILABLE)

DC Power Genie Z-30/20N Articulated Boom

Call for priceNew

Contact Information

Western Material Handling
1113 N. College Ave
Ft Collins, Colorado 80524

CONTACT :

Dennis Firkins

PHONE :

303-625-6477

FAX :

970-224-5471

Stock #:

CHECK AVAILABILITY

Manufacturer:

Genie

MODEL #:

Z-30/20N

Drive:

2WD

SUBCATEGORY:

Articulated Boom

Height:

36 ft

FUEL:

DC Power

CONDITION:

New

LOCATION:

Colorado [80022]

DESCRIPTION:

NEW GENIE Z-30/20N ELECTRIC ARTICULATING BOOM LIFT 48V

Equipment Description:

This product was posted on 11/9/2024

Overview
- Model: Genie Z-30/20N
- Type: Electric Articulating Boom Lift
Dimensions
- Max Working Height: 36 ft 3 in (11.14 m)
- Max Platform Height: 30 ft 3 in (9.22 m)
- Horizontal Reach: 20 ft 8 in (6.25 m)
- Up and Over Clearance: 12 ft 4 in (3.76 m)
- Platform Length: 2 ft 6 in (0.76 m)
- Platform Width: 4 ft 8 in (1.42 m)
- Height Stowed: 6 ft 6 in (1.98 m)
- Length Stowed: 18 ft 1 in (5.52 m)
- Width: 4 ft 11 in (1.50 m)
- Wheelbase: 5 ft 1 in (1.55 m)
- Ground Clearance: 3.5 in (8.89 cm)
Capacity
- Lift Capacity: 500 lbs (227 kg)
- Turntable Rotation: 180 degrees
Performance
- Drive Speed - Stowed: 3.5 mph (5.6 km/h)
- Drive Speed - Raised: 0.68 mph (1.1 km/h)
- Gradeability: 35%
- Turning Radius Inside: 5 ft 2 in (1.57 m)
- Turning Radius Outside: 11 ft 2 in (3.40 m)
- Controls: Proportional
Power
- Power Source: 48 V DC (Eight 6 V 350 Ah batteries)
- Charger: 25 A High Frequency Smart Charger
Weight
- Machine Weight: 14,100 lbs (6,396 kg)
Features
- Jib: 4 ft 11 in (1.50 m) with 139-degree range of motion
- Self-leveling Platform
- Zero Tail Swing
- Biodegradable Hydraulic Oil
- AC Wiring to Platform
