2024 LP Gas Heli CPYD25-M1H Pneumatic Tire 4 Wheel Sit Down

Call for priceNew
Contact Information
SS Lift
317 E Hill St
Oklahoma City, Oklahoma 73105
CONTACT :
Scot Salsberry
PHONE :
Stock #:
SS2410Q
YEAR:
2024
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
84 / 185 in
SERIAL #:

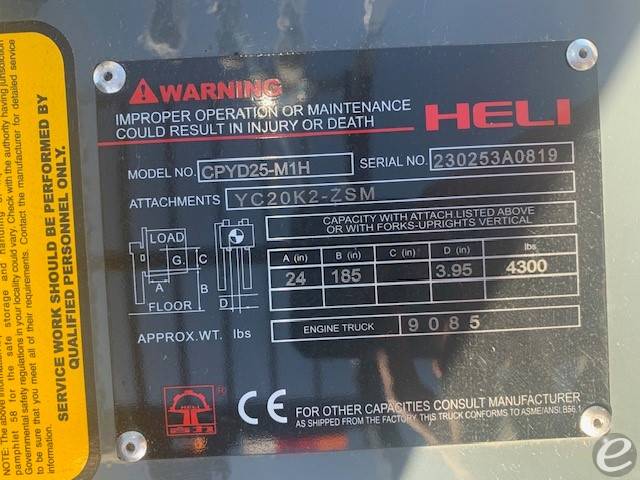

230253A0819
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
Equipment Description:
  • General Specifications
    • Model: CPYD25-M1H
    • Engine Type: Diesel
    • Load Capacity: 2,500 kg
    • Drive: 2-wheel Drive
  • Dimensions
    • Overall Length: 3,640 mm
    • Overall Width: 1,150 mm
    • Overall Height (mast lowered): 2,140 mm
    • Overall Height (mast extended): 4,240 mm
    • Fork Dimensions: 1,070 mm x 100 mm x 40 mm
  • Performance
    • Travel Speed (loaded): 18.5 km/h
    • Travel Speed (unloaded): 19.5 km/h
    • Lift Speed (loaded): 470 mm/s
    • Lift Speed (unloaded): 500 mm/s
    • Max Gradeability (loaded): 20%
  • Engine Specifications
    • Engine Model: Xinchai A490BPG
    • Engine Power: 44.1 kW
    • Rated Speed: 2,350 rpm
    • Number of Cylinders: 4
    • Displacement: 2.67 L
  • Chassis
    • Tires: Pneumatic
    • Front Tire Size: 7.00-12
    • Rear Tire Size: 6.00-9
    • Wheelbase: 1,600 mm
    • Ground Clearance: 120 mm
  • Hydraulics
    • Hydraulic Tank Capacity: 45 L
    • Hydraulic Pressure: 20 MPa
  • Fuel
    • Fuel Tank Capacity: 60 L
  • Additional Features
    • Optional Attachments: Side shift, fork positioner
    • Steering Type: Hydraulic power steering
    • Braking System: Hydraulic braking
