Diesel Hangcha FD70 Pneumatic Tire 4 Wheel Sit Down

Call for priceNew
Contact Information
CONTACT :
Dennis Firkins
PHONE :
FAX :
Stock #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
CAPACITY:
15500
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
196 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
DESCRIPTION:
NEW HANGCHA FD70 15.5K PNEU 3STG SS DEUTZ DIESEL
Equipment Description:

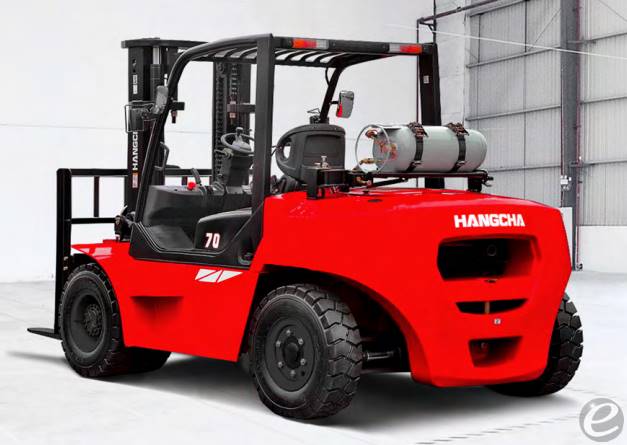

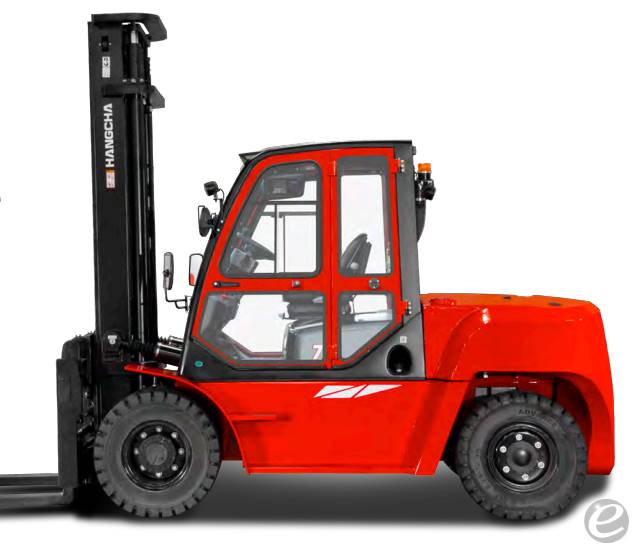

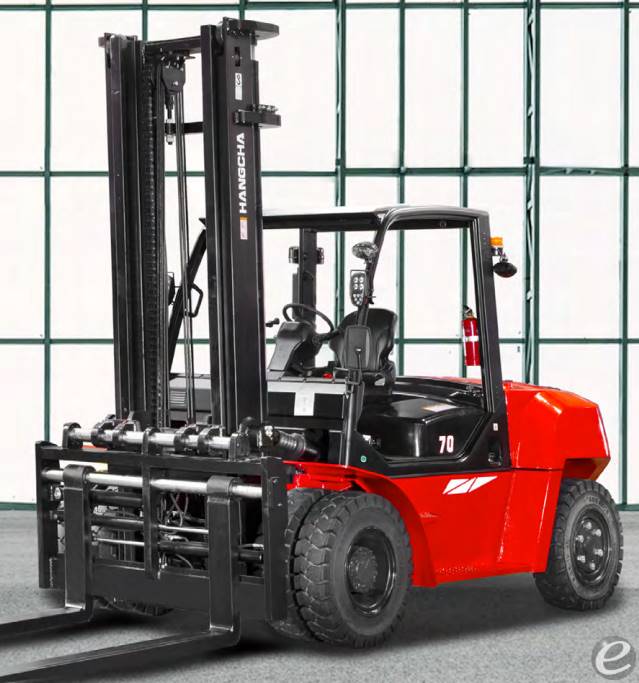

New Hangcha FD70, 15.5K Pneumatic tire forklift with the Deutz T4F Diesel Engine, Dual Drive Solid Pneumatic Tires, 67" Side Shift Carriage with Load Back Rest, Power Steering, Tilt Wheel, LED Combination Lights, Rear View Mirror, Head Lights, Panoramic Mirror, 48" Class 3 Forks, and Tilt Cylinder Boots! Plus, a beautiful finish! (STOCK PHOTOS, OTHER CAPACITIES/OPTIONS AVAILABLE)
  • General Specifications
    • Model: Hangcha FD70
    • Type: Diesel Forklift
    • Load Capacity: 7,000 kg
    • Load Center: 600 mm
  • Dimensions
    • Overall Length (without forks): 3,441 mm
    • Overall Width: 2,245 mm
    • Overall Height (cab): 2,480 mm
    • Wheelbase: 2,250 mm
    • Turning Radius: 3,320 mm
  • Engine Specifications
    • Engine Model: Isuzu 6BG1
    • Engine Type: Diesel, Water-cooled, 4-stroke, 6-cylinder
    • Rated Power: 82 kW (110 HP) / 2,000 rpm
    • Max Torque: 440 Nm / 1,500 rpm
    • Displacement: 6.5 L
    • Fuel Tank Capacity: 140 L
  • Performance
    • Travel Speed (Loaded/Unloaded): 26/27 km/h
    • Lifting Speed (Loaded/Unloaded): 420/440 mm/s
    • Lowering Speed (Loaded/Unloaded): 500/450 mm/s
    • Max Drawbar Pull: 53 kN
    • Gradeability (Loaded): 20%
  • Tires
    • Tire Type: Pneumatic
    • Front Tires: 8.25-15-14PR
    • Rear Tires: 8.25-15-14PR
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical
  • Transmission
    • Transmission Type: Hydraulic
    • Number of Gears (Forward/Reverse): 2/2
