Equipment Description:

6575 Hours 2019 used HYUNDAI 30D-9 for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #LS12484, Stock Number: LS12484, Make: HYUNDAI, Model: 30D-9, Year: 2019, Auxilliary Hydralic Valves: 3, Capacity: 6000 Lbs, Carriage: S/S, Full Free Height: 0.00", Load Center: 24", Mast: Triplex, Max Fork Height: 185.00", Overall Lowered Height: 86.00", Rear Tires: Solid Pneumatic, Hours: 6575, Chassis: 2 Wheel Drive, Fuel: Diesel

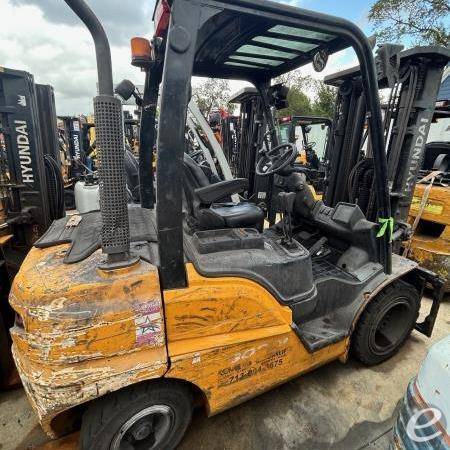

2019 Diesel Hyundai 30D-9 Pneumatic Tire 4 Wheel Sit Down

Call for price

Contact Information

Global Fleet Solutions
17300 W Valley Hwy
Seattle, Washington 98188

CONTACT :

Sales Rep

PHONE :

1 888 451 2398

Stock #:

LS12484

YEAR:

2019

Manufacturer:

Hyundai

MODEL #:

30D-9

CAPACITY:

6000

FUEL:

Diesel

SUBCATEGORY:

Pneumatic Tire 4 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

185 in

SERIAL #:

HHKHHN13TK0003140

SIDE SHIFTER:

Yes

HOUR METER:

6575

LOCATION:

Texas

Equipment Description:

This product was posted on 11/1/2024

Model: Hyundai 30D-9
- Type: Diesel Forklift
Engine Specifications
- Engine Model: Kubota V3307
- Rated Power: 55.4 kW at 2,300 RPM
- Max Torque: 265 Nm at 1,600 RPM
- No. of Cylinders: 4
Dimensions & Capacity
- Overall Length: 3,790 mm
- Overall Width: 1,240 mm
- Overall Height: 2,125 mm (Overhead Guard)
- Wheelbase: 1,700 mm
- Ground Clearance: 140 mm
Performance
- Load Capacity: 3,000 kg
- Max Travel Speed: 18.5 km/h
- Lifting Speed (Loaded): 530 mm/s
- Lifting Speed (Unloaded): 650 mm/s
- Gradeability: 35% (Full Load)
Weight
- Service Weight: 4,590 kg
Brakes
- Service Brake: Hydraulic
- Parking Brake: Mechanical, Hand Lever Actuated
Tires
- Front: 7.00-12-12PR
- Rear: 6.00-9-10PR
Steering System
- Type: Hydrostatic Power Steering
Fuel Tank
- Fuel Tank Capacity: 60 liters
Hydraulic System
- Hydraulic System Pressure: 180 kgf/cm²
Mast
- Lift Height: 3,000 mm
- Free Lift: 145 mm
- Forward Tilt: 6 degrees
- Backward Tilt: 12 degrees
