Electric Hangcha FBE38Li Electric 4 Wheel Sit Down

Call for priceNew
Contact Information
CONTACT :
Dennis Firkins
PHONE :
FAX :
Stock #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
CAPACITY:
7600
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
196 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
DESCRIPTION:
NEW HANGCHA FBE38Li 7.6K ELEC PNEUMATIC SITDOWN 3STG SS
Equipment Description:

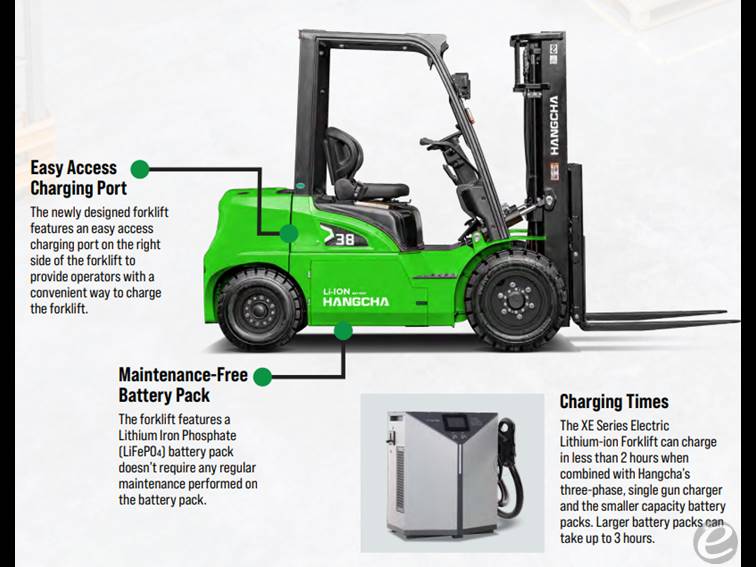

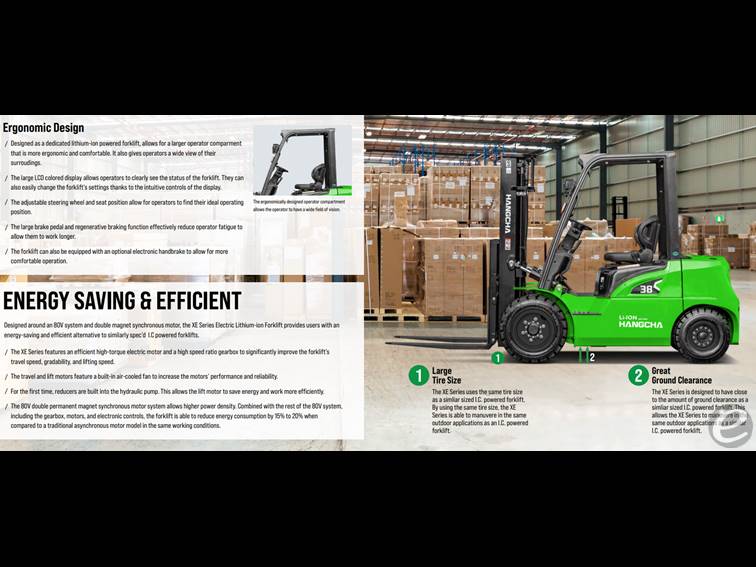

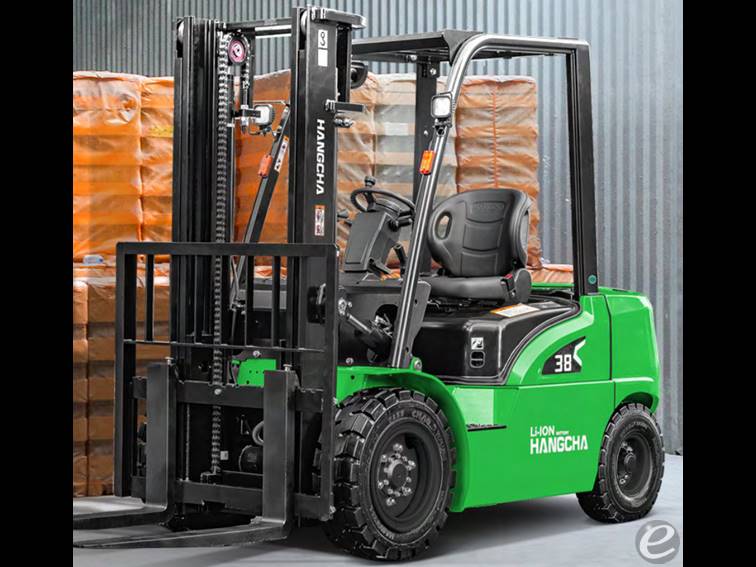

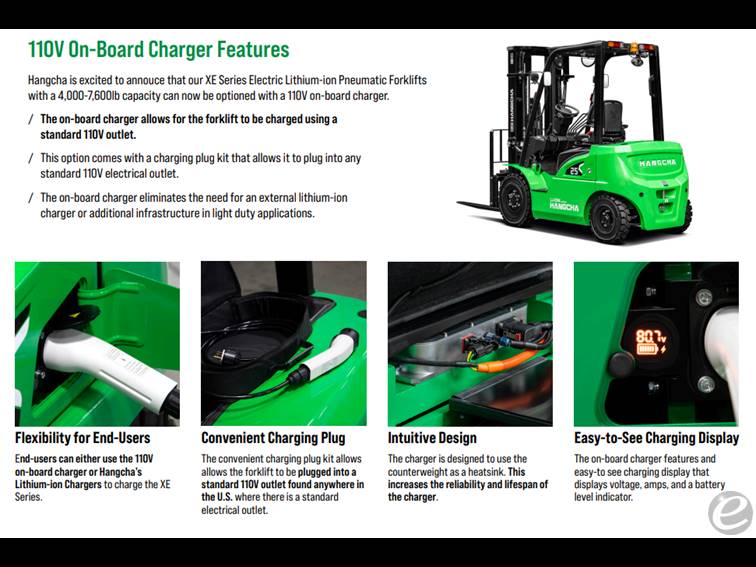

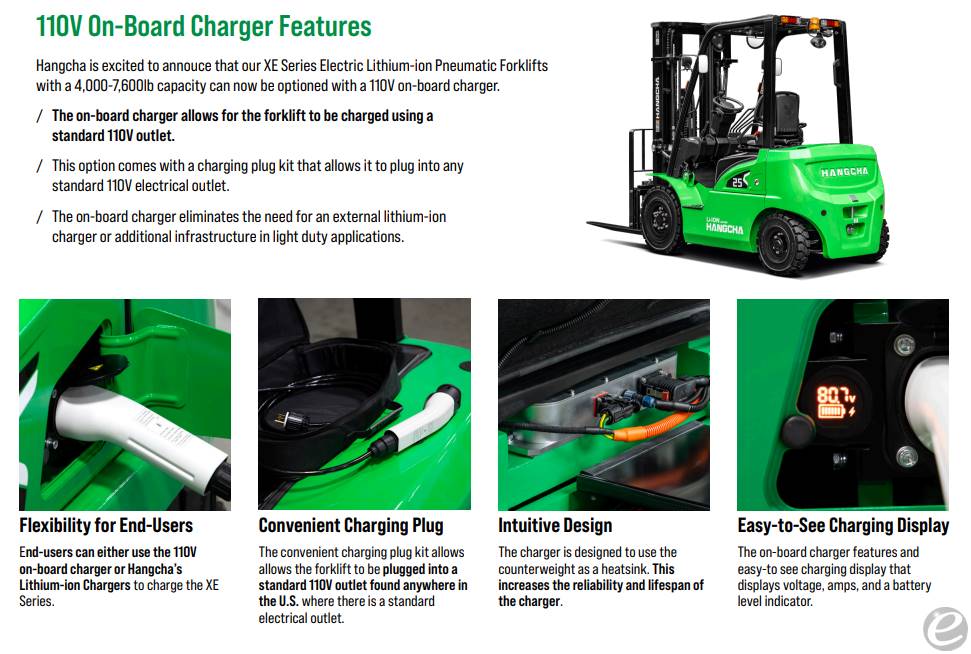

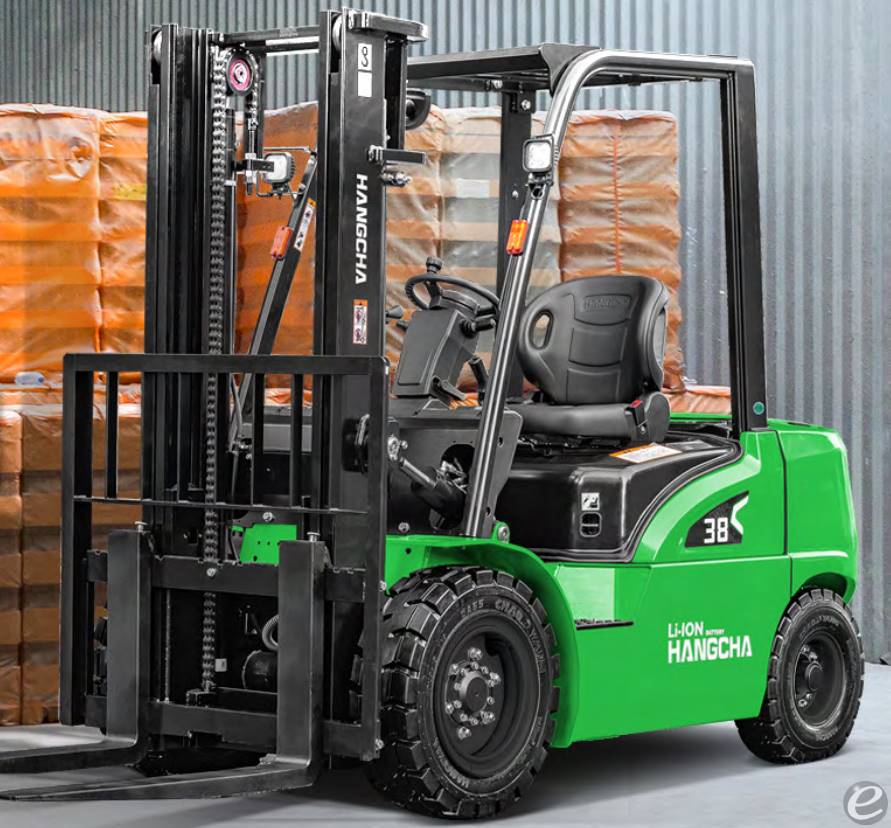

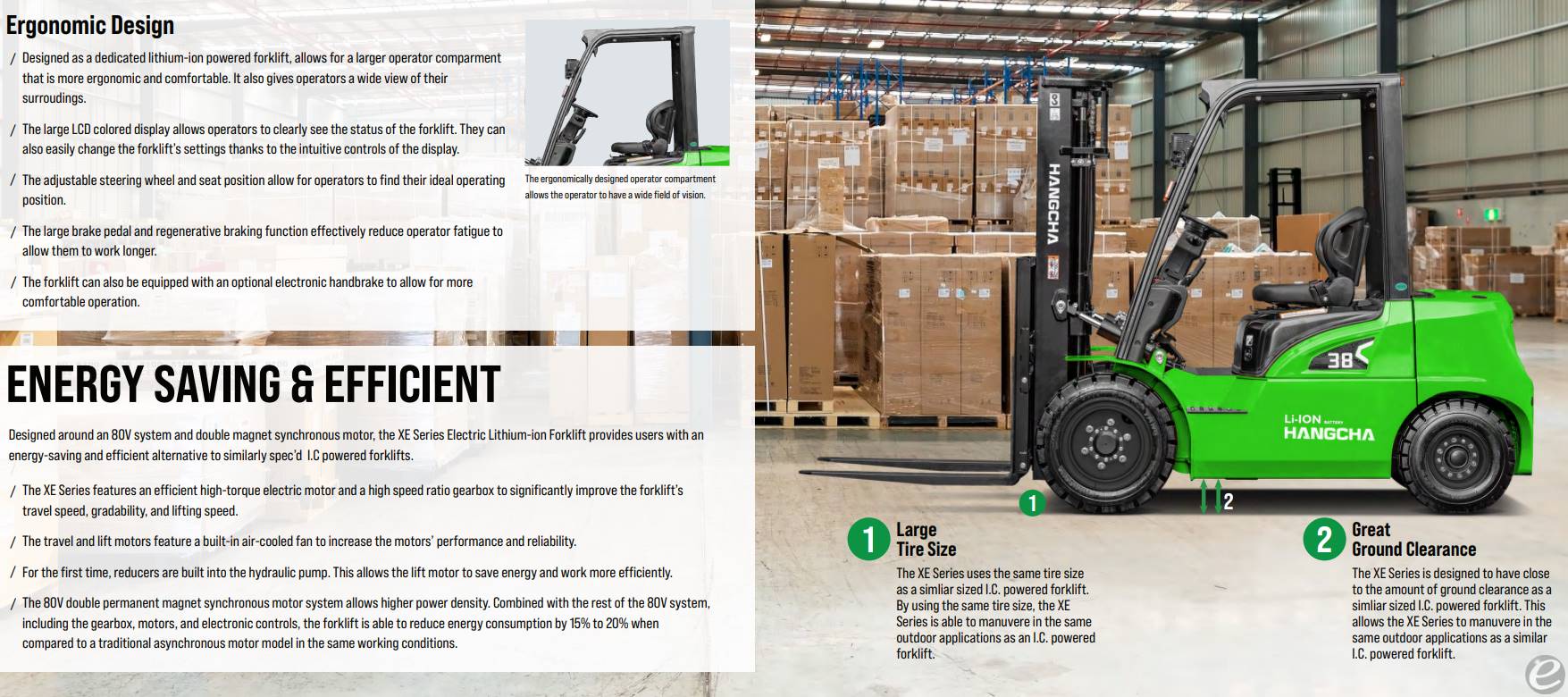

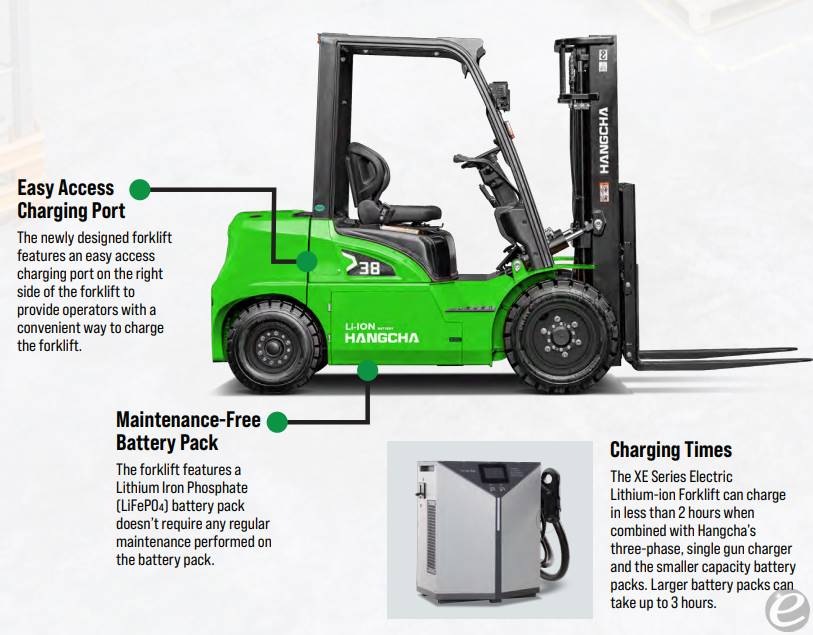

New Hangcha FBE38Li, 7.6K Electric 4-Wheel Sit-down forklift with the innovative Lithium-ion battery, 196” triple stage mast, side-shift carriage, back up alarm, strobe light, LED work lights, rear view mirror, 43” carriage w/LBR, panoramic mirror, 42" standard forks, 80volt li-ion battery & charger included, (FBE Models have 110volt on-board charger options as well), plus a beautiful finish! (STOCK PHOTOS, OTHER CAPACITIES/OPTIONS AVAILABLE)
  • Performance
    • Load Capacity: 3,800 kg
    • Load Center: 500 mm
    • Max Lifting Height: 7,000 mm
    • Max Travel Speed: 17 km/h (loaded)
    • Max Lifting Speed: 0.43 m/s (loaded)
  • Dimensions
    • Overall Length: 3,550 mm (without forks)
    • Overall Width: 1,250 mm
    • Overall Height (mast lowered): 2,260 mm
    • Fork Dimensions: 1,070 mm x 125 mm x 50 mm
    • Turning Radius: 2,200 mm
  • Power Source
    • Battery Type: Lithium-ion
    • Battery Voltage: 80V
    • Battery Capacity: 540 Ah
    • Charger Type: External, high-frequency
  • Drive
    • Drive Motor: AC, dual drive
    • Lifting Motor: AC
    • Transmission: Hydrostatic
  • Brakes
    • Service Brake: Hydraulic, foot-operated
    • Parking Brake: Electric, hand-operated
  • Tires
    • Tire Type: Pneumatic
    • Front Tire Size: 23x10-12
    • Rear Tire Size: 18x7-8
  • Additional Features
    • Steering Mode: Power steering
    • Safety Features: Overload protection, LED lights
    • Operator Compartment: Ergonomic design, adjustable seat
    • Display: Digital multifunction display
