Hangcha FB55CLi

electric 4 wheel sit down

Call for priceNew
Western Material Handling
CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
CAPACITY:
12000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
196 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:
NEW HANGCHA FB55CLi 12K ELEC CUSHION SITDOWN 3STG SS
POST DATE:
4/28/2025
Equipment Description

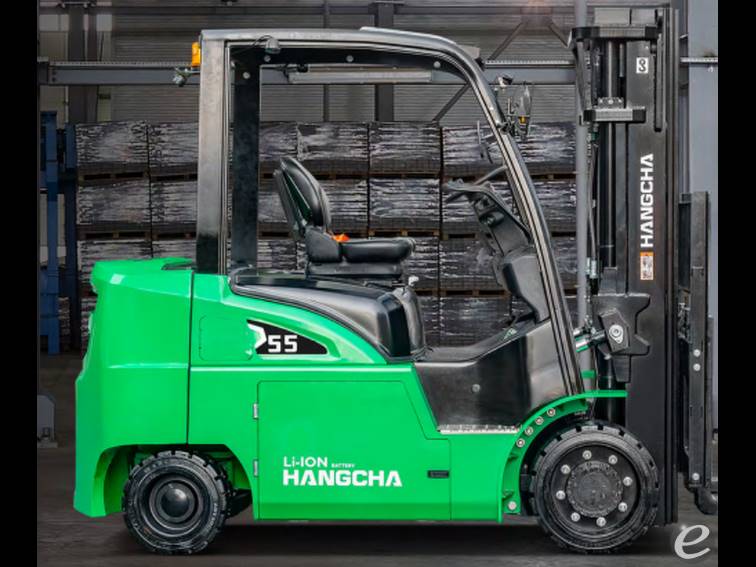

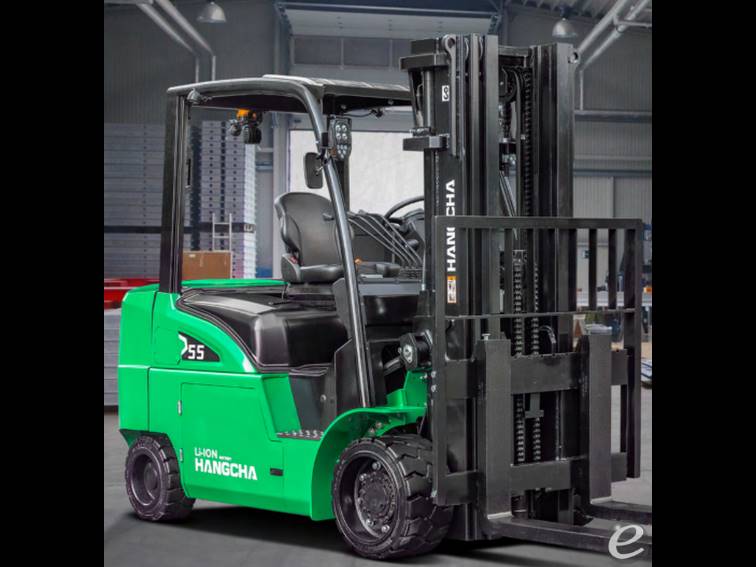

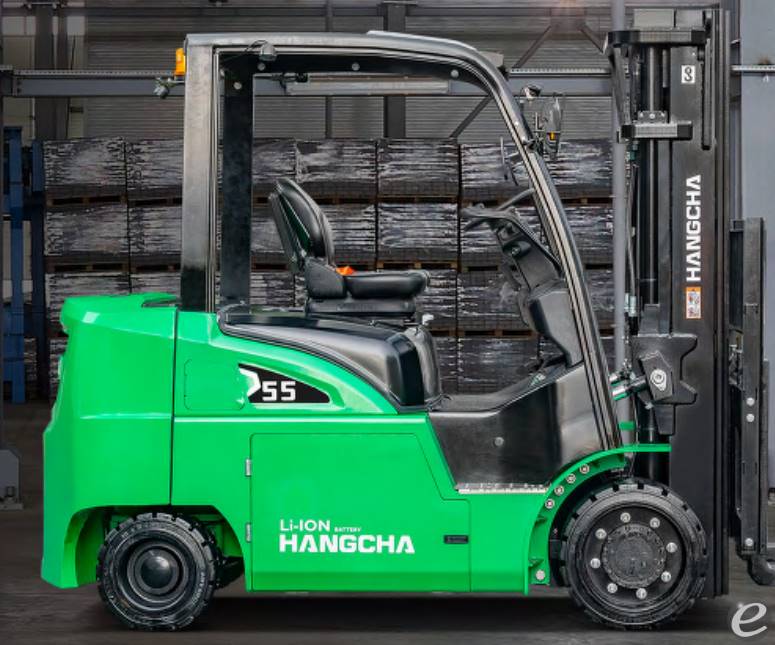

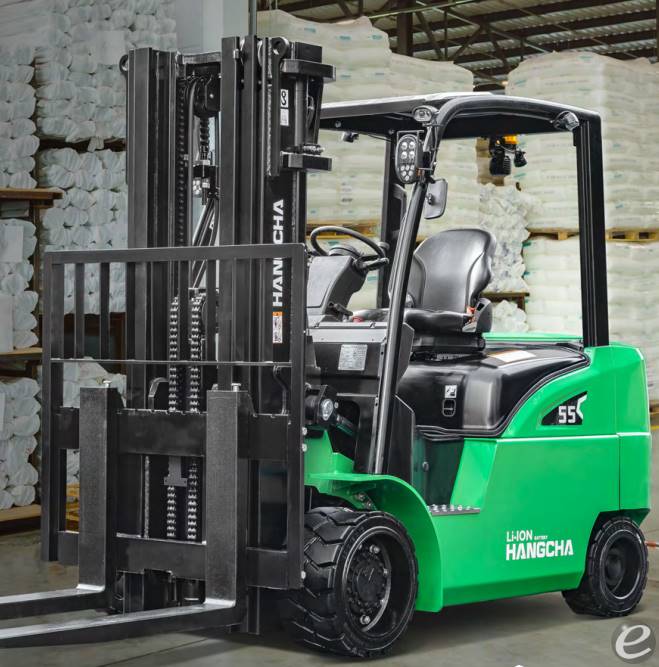

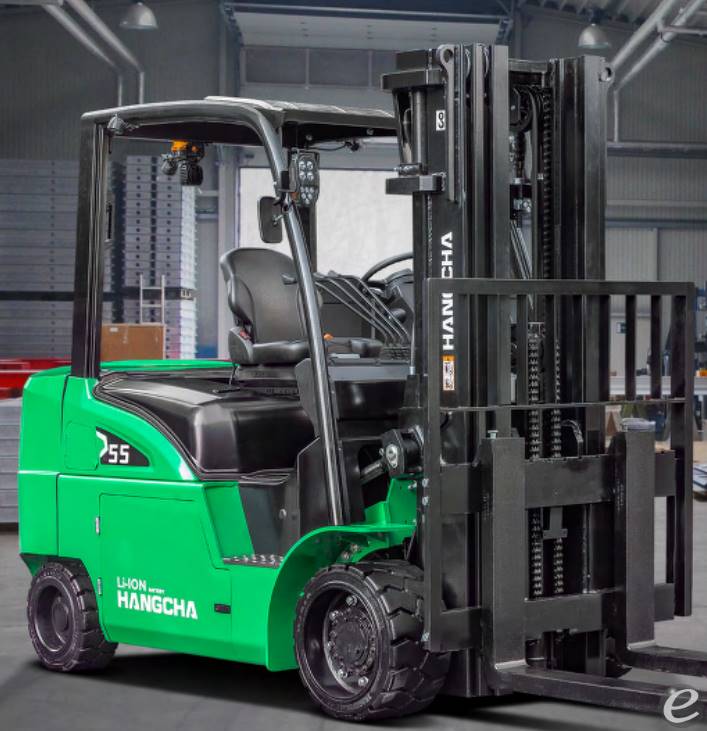

New Hangcha FB55CLi, 12K Electric Cushion 4-Wheel Sit-down forklift with traction cushion tires, the innovative Lithium-ion battery, 196” triple stage mast, side-shift carriage, back up alarm, strobe light, LED work lights, rear view mirror, 51” carriage w/LBR, panoramic mirror, 48" standard forks, 80volt li-ion battery & charger included, plus a beautiful finish! (STOCK PHOTOS, OTHER CAPACITIES/OPTIONS AVAILABLE)
  • Model Number: FB55CLI
  • Manufacturer: Hangcha
  • Type: Forklift
  • Subtype: Electric 4 Wheel Sit Down
  • Fuel Type Used: Electric
  • General Specifications
    • Rated Load Capacity: 11,000 lbs
    • Overall Length: Varies with fork length
    • Overall Width: Approximately 55 in
    • Overall Height (Cab Height): Approximately 88 in
    • Wheelbase: Approximately 78 in
    • Tread (Front/Rear): Approximately 47/42 in
    • Ground Clearance: Approximately 5.5 in
  • Performance
    • Travel Speed (Loaded/Unloaded): 11/12 mph
    • Lift Speed (Loaded/Unloaded): 59/63 ft/min
    • Lowering Speed (Loaded/Unloaded): Approximately 59 ft/min
    • Maximum Drawbar Pull: 5,200 lbs
    • Gradeability (Loaded): 15%
  • Weight
    • Service Weight: Approximately 16,500 lbs
  • Tires
    • Tire Type (Front/Rear): Pneumatic
    • Tire Size Front: 28x9-15
    • Tire Size Rear: 6.50-10
  • Electric System
    • Battery Voltage/Capacity: 80V/600Ah
    • Motor Type: AC Drive Motor
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical
  • Steering
    • Steering Type: Hydraulic Power Steering
    • Steering Angle: Approximately 90 degrees
  • Standard Features
    • Operator's Cabin: Yes, with ergonomic seat
    • Lighting System: LED headlights and tail lights
    • Display Panel: Multi-function digital display
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
