2014 LP Gas Toyota 8FG45U Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
15054
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
10000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
101 / 218 in
SIDE SHIFTER:
No
CONDITION:
Used
LOCATION:
DESCRIPTION:
10000LB CAPACITY 3 STAGE MAST 101" LOWERED 218" RAISED
Equipment Description:

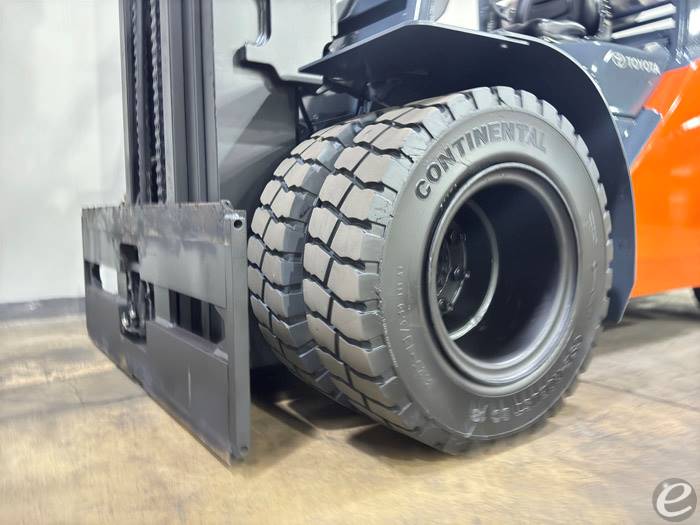

10000LB CAPACITY 3 STAGE MAST 101" LOWERED HEIGHT 218" MAX RAISED HEIGHT LPG FUEL PNEUMATIC TIRES DUAL DRIVE TIRES 3-WAY HYDRAULICS PLUMBED TO CARRIAGE FORKS INCLUDED
  • Model: Toyota 8FG45U
  • Engine Type: Internal Combustion
  • Engine Model: Toyota 4Y
  • Power Source: LPG/Gasoline
  • Load Capacity: 10,000 lbs
  • Lift Height: 169 inches
  • Overall Width: 57 inches
  • Overall Length (without forks): 134 inches
  • Wheelbase: 77 inches
  • Turning Radius: 115 inches
  • Travel Speed Loaded: 11.8 mph
  • Travel Speed Unloaded: 11.8 mph
  • Lift Speed Loaded: 118 fpm
  • Lift Speed Unloaded: 127 fpm
  • Lowering Speed Loaded: 98 fpm
  • Lowering Speed Unloaded: 98 fpm
  • Fuel Tank Capacity: 33.5 gallons (126.8 liters)
  • Tire Type: Pneumatic
  • Front Tire Size: 8.25-15-14PR
  • Rear Tire Size: 7.00-12-12PR
  • Braking System: Wet Disc Brakes
  • Steering System: Fully Hydrostatic Power Steering

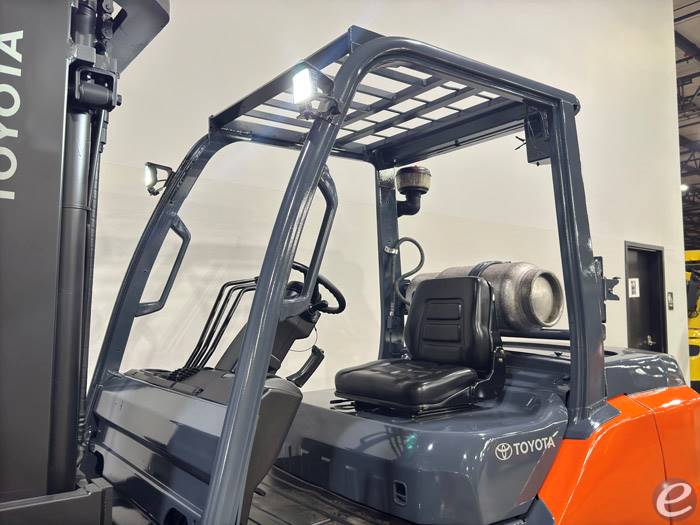

  • Operator Compartment: Pillarless Overhead Guard
  • Emissions Compliance: EPA/CARB Tier 2
  • Optional Features
    • Cab with Heater
    • Air Conditioning
    • Side Shifters
    • Fork Positioners
