Equipment Description:

6000LB CAPACITY 3 STAGE MAST 89" LOWERED HEIGHT 187" RAISED HEIGHT LPG FUEL NEW AIR PNEUMATIC TIRES 3 WAY PLUMBED HYDRAULICS PLUMBED TO CARRIAGE FORKS

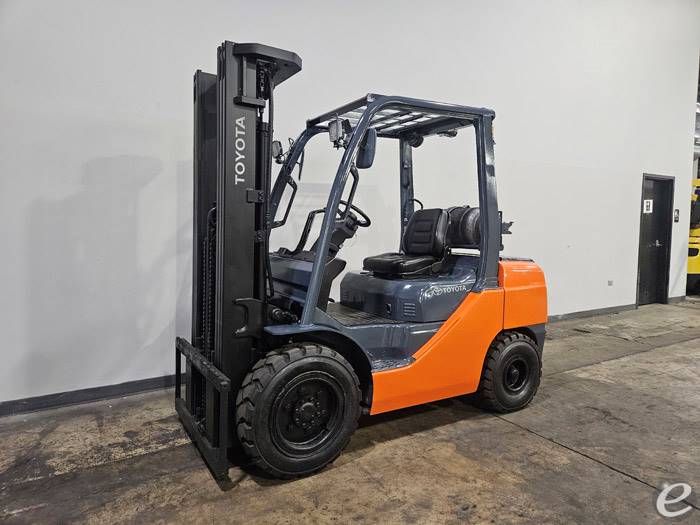

2016 LP Gas Toyota 8FGU30 Pneumatic Tire 4 Wheel Sit Down

$18,950 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013

CONTACT :

John Hellyer

PHONE :

224-404-3255

Stock #:

14629

YEAR:

2016

Manufacturer:

Toyota

MODEL #:

8FGU30

CAPACITY:

6000

FUEL:

LP Gas

SUBCATEGORY:

Pneumatic Tire 4 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

89 / 187 in

CONDITION:

Used

LOCATION:

Illinois [60013]

DESCRIPTION:

6000LB CAPACITY 3 STAGE MAST 89" LOWERED 187" RAISED

Equipment Description:

6000LB CAPACITY 3 STAGE MAST 89" LOWERED HEIGHT 187" RAISED HEIGHT LPG FUEL NEW AIR PNEUMATIC TIRES 3 WAY PLUMBED HYDRAULICS PLUMBED TO CARRIAGE FORKS

This product was posted on 11/8/2024

Engine Specifications
- Engine Type: 4-cylinder, 4.3-liter gasoline engine
- Model: Toyota 1FS Engine
- Fuel Type: LPG/Gasoline
- Displacement: 223.8 cubic inches (3,670 cc)
- Rated Output: Approximately 60 HP
Performance
- Load Capacity: 6,000 lbs (2,722 kg)
- Load Center: 24 inches
- Max Travel Speed: 11.8 mph (19 km/h) without load
Dimensions
- Overall Length: 147.0 inches (with forks)
- Overall Width: 45.9 inches
- Overall Height: 83.5 inches (overhead guard)
- Turning Radius: 86.6 inches
Mast Specifications
- Mast Type: 3-stage
- Standard Lift Height: 185 inches
- Free Lift: 37.4 inches
- Lowered Height: 83.5 inches
Chassis and Body
- Tire Type: Pneumatic
- Front Tires: 7.00-12-12PR
- Rear Tires: 6.00-9-10PR
- Wheelbase: 70.9 inches
- Ground Clearance: 5.9 inches at the center of the wheelbase
Hydraulic System
- Hydraulic Pump: Gear type
- Hydraulic Fluid Capacity: 15 gallons
Other Features
- Operator Compartment: Ergonomic design with adjustable seat
- Steering System: Hydrostatic power steering
- Brakes: Fully hydraulic system
- Noise Level: 85 dB(A)
