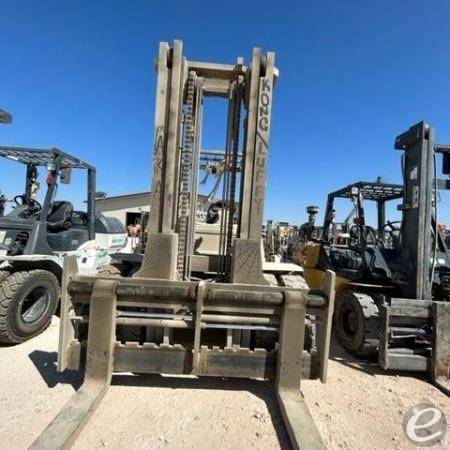

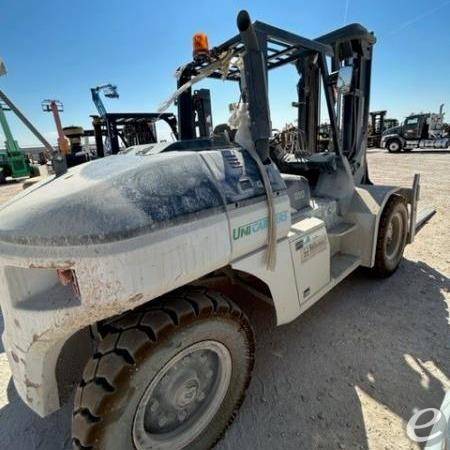

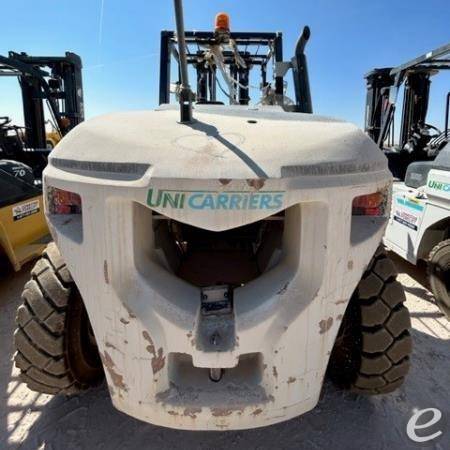

2022 Diesel Unicarriers FD100 Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
Global Fleet Solutions
17300 W Valley Hwy
Seattle, Washington 98188
CONTACT :
Sales Rep
PHONE :
Stock #:
LS20527
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
22000
FUEL:
Diesel
MAST TYPE:
Two Stage
MAST HEIGHT:
138 in
SERIAL #:
4B700371
SIDE SHIFTER:
Yes
HOUR METER:
787
LOCATION:
Equipment Description:
787 Hours 2022 used UNICARRIERS FD100 for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #LS20527, Stock Number: LS20527, Make: UNICARRIERS, Model: FD100, Year: 2022, Auxilliary Hydralic Valves: 4, Capacity: 22000 Lbs, Carriage: SSFP, Fork Length: 96.00", Full Free Height: 0.00", Load Center: 24", Mast: Simplex, Max Fork Height: 138.00", Overall Lowered Height: 122.00", Rear Tires: Standard Pneumatic, Hours: 787, Chassis: 2 Wheel Drive, Fuel: Diesel
  • Engine
    • Type: Diesel
    • Model: Mitsubishi S6S-Y2T61
    • Power: 126 HP (93 kW) at 2300 RPM
    • Displacement: 5.5 L
    • Cylinders: Inline 6
  • Performance
    • Lifting Capacity: 10,000 kg
    • Load Center: 600 mm
    • Turning Radius: 3,500 mm
    • Travel Speed: 24 km/h (unloaded)
    • Lift Speed: 440 mm/s (unloaded)
    • Lowering Speed: 500 mm/s (unloaded)
  • Dimensions
    • Overall Length with Forks: 5,375 mm
    • Overall Width: 2,170 mm
    • Overall Height: 2,875 mm (to top of overhead guard)
    • Fork Length: 2,440 mm
    • Wheelbase: 2,650 mm
    • Ground Clearance: 250 mm
  • Weight
    • Service Weight: 13,580 kg
  • Chassis
    • Tires: Pneumatic
    • Front Tires: 8.25-15-14PR
    • Rear Tires: 8.25-15-14PR
    • Brakes: Wet disc brakes
  • Hydraulics
    • Hydraulic System Pressure: 245 bar
    • Number of Hydraulic Functions: 3
  • Fuel System
    • Fuel Tank Capacity: 160 L
  • Operator Comfort
    • Adjustable seat with suspension
    • Power steering
