2016 Diesel Genie Z45/25J Articulated Boom

$49,900 USD
Contact Information
United Lift LLC
300 International Dr. Suite 100
Williamsville, New York 14221
CONTACT :
Arcangelo Capozzolo
PHONE :
FAX :
Stock #:
BF9398529-BUF
YEAR:
2016
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
45 ft
FUEL:
Diesel
CONDITION:
Used
HOUR METER:
1008
LOCATION:
Equipment Description:

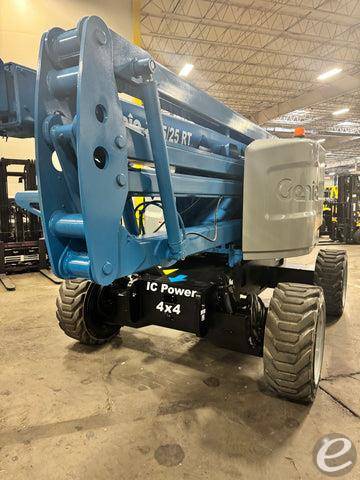

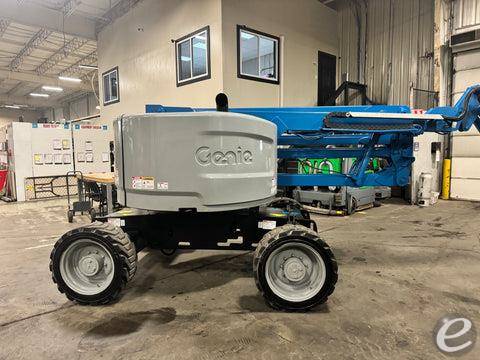

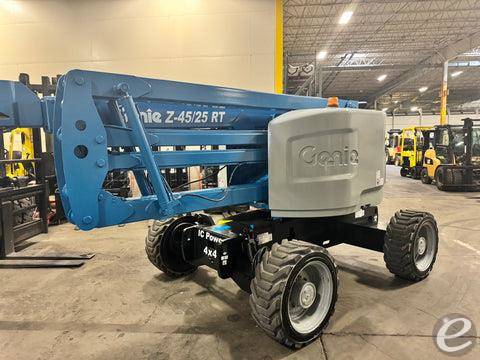

2016 GENIE Z45/25J ARTICULATING BOOM LIFT AERIAL LIFT WITH JIB ARM 45' REACH DIESEL 4WD 1,008 HOURS STOCK # BF9398529-BUF, Capacity: 500 LB, Hours: 1,008, Dimensions & Weight: 22'L X 92"W X 79"H, 16,300 LB, File #: 9398529, Additional Info: Fresh Paint, Fully Serviced, 4WD, Foam Filled Tires
  • Working Height
    • Maximum Working Height: 51 ft 10 in (15.97 m)
  • Platform Height
    • Maximum Platform Height: 45 ft 10 in (14.02 m)
  • Horizontal Reach
    • Maximum Horizontal Reach: 25 ft 1 in (7.65 m)
  • Up and Over Clearance
    • Maximum Up & Over Clearance: 23 ft 5 in (7.14 m)
  • Platform Capacity
    • Maximum Platform Capacity: 500 lbs (227 kg)
  • Platform Rotator
    • Hydraulic Platform Rotator: 180 degrees
  • Jib
    • Jib Length: 5 ft (1.52 m)
    • Jib Range of Motion: 135 degrees
  • Tailswing
    • Tailswing: Zero
  • Turret Rotation
    • Turntable Rotation: 355 degrees non-continuous
  • Drive Speed
    • Stowed Drive Speed: 3.0 mph (4.8 km/h)
    • Drive Speed (Raised): 0.6 mph (1.0 km/h)
  • Gradeability
    • Gradeability: 45%
  • Turning Radius
    • Inside Turning Radius: 6 ft 4 in (1.93 m)
    • Outside Turning Radius: 13 ft 5 in (4.11 m)
  • Machine Weight
    • Diesel: 15,230 lbs (6,909 kg)
  • Power Source
    • Power Source: Diesel Engine
    • Engine: Kubota D1105 24.8 hp (18.5 kW)
  • Dimensions
    • Length - Stowed: 20 ft 9 in (6.33 m)
    • Height - Stowed: 6 ft 10 in (2.08 m)
    • Width: 6 ft 6 in (1.98 m)
    • Wheelbase: 6 ft 8 in (2.03 m)

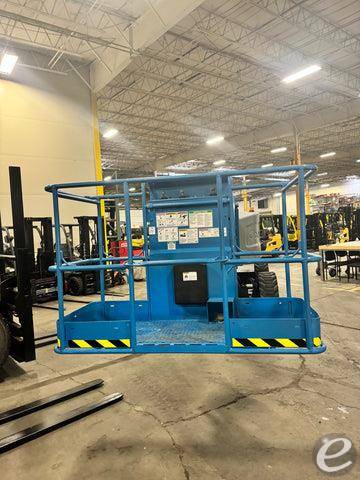

  • Platform Dimensions
    • Platform Length: 2 ft 6 in (0.76 m)
    • Platform Width: 6 ft (1.83 m)
