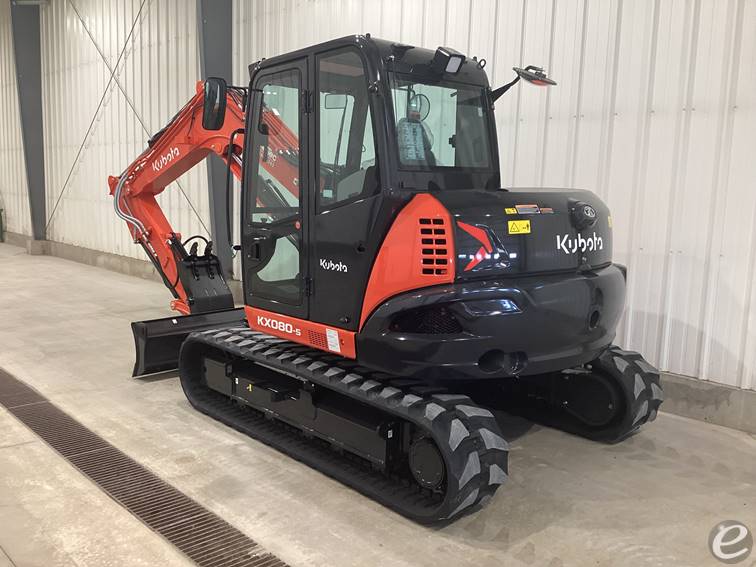

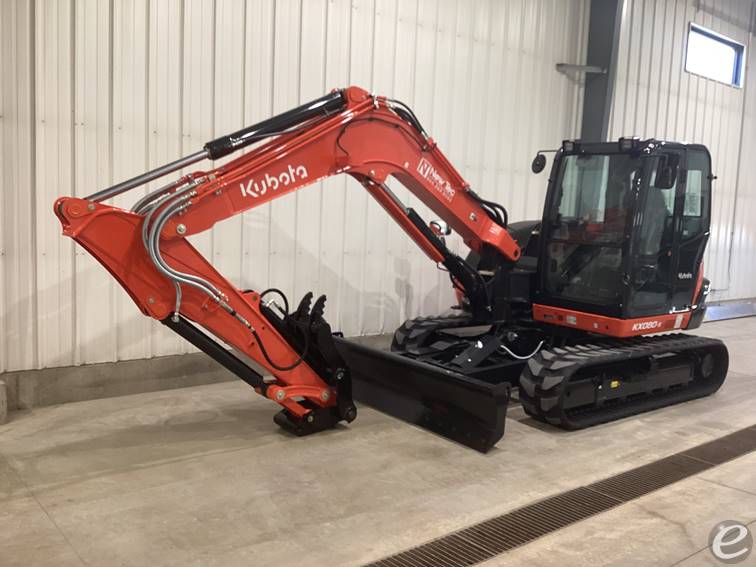

2024 Kubota KX080-5R3A Earth Moving and Construction

Call for priceNew
Contact Information
New Tec, Inc.
3764 US 75 Ave
Sioux Center, Iowa 51250
CONTACT :
Joe or Marlin
PHONE :
FAX :
Stock #:
0020780
YEAR:
2024
Manufacturer:
MODEL #:
SERIAL #:
KBCDZ85CLR3F11408
CONDITION:
New
LOCATION:
DESCRIPTION:
Kubota Engine, Cab w/ AC, 18" Rubber Tracks, Angle Blade
Equipment Description:
Quick Coupler, Thumb Kit, Telematics, Radio, 2 Hours
  • Engine Specifications
    • Model: V3307-CR-TE4
    • Type: Water-cooled, 4-cycle diesel
    • Displacement: 3,331 cc
    • Horsepower: 66.4 HP (49.5 kW) at 2,200 rpm
    • Fuel Tank Capacity: 31.4 gallons (119 L)
  • Dimensions
    • Overall Length: 20 ft 3 in (6,170 mm)
    • Overall Width: 7 ft 3 in (2,230 mm)
    • Overall Height: 8 ft 4 in (2,540 mm)
    • Ground Clearance: 1 ft 4 in (430 mm)
  • Operating Specifications
    • Operating Weight: 18,360 lbs (8,325 kg)
    • Travel Speed: 3.0 mph (4.9 km/h) max
    • Maximum Digging Depth: 15 ft 1 in (4,590 mm)
    • Bucket Digging Force: 14,660 lbf (65.2 kN)
    • Arm Digging Force: 8,554 lbf (38.1 kN)
  • Hydraulic System
    • Pump Capacity: 49.5 gpm (187.5 l/min)
    • Auxiliary Hydraulic Flow: 27.2 gpm (103 l/min)
    • System Pressure: 4,870 psi (33.6 MPa)
  • Performance
    • Maximum Reach at Ground Level: 23 ft 3 in (7,090 mm)
    • Maximum Dumping Height: 17 ft 4 in (5,290 mm)
    • Swing Speed: 9.3 rpm
    • Tail Swing Radius: 4 ft 10 in (1,470 mm)
  • Additional Features

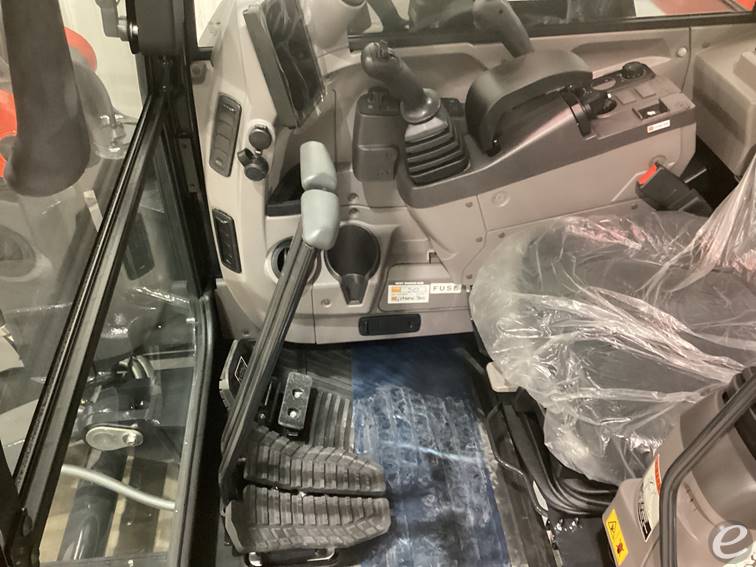

    • Cab with Heating and Air Conditioning
    • Hydraulic Quick Coupler System
    • Suspension Seat
    • LED Working Lights
