2014 Tailift FD35P

lp gas pneumatic tire 4 wheel sit down

Call for price
CONTACT INFO
Name:
Sales Rep

ADDRESS
Global Fleet Solutions
17300 W Valley Hwy
SeattleWashington 98188
ATTRIBUTES
STOCK #:
LS19797
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
5060
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
187 in
SERIAL #:
TA11563
SIDE SHIFTER:
Yes
HOUR METER:
8662
LOCATION:
POST DATE:
4/4/2025
Equipment Description

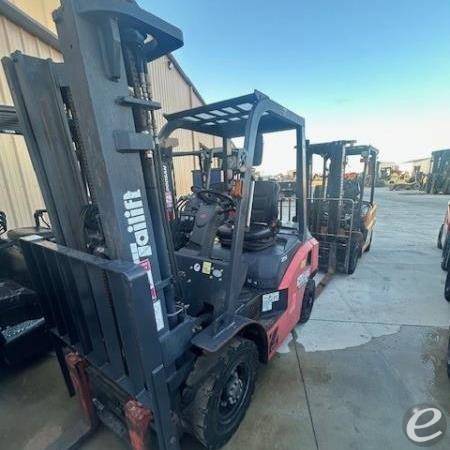

8662 Hours 2014 used TAILIFT FD35P for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #LS19797, Stock Number: LS19797, Make: TAILIFT, Model: FD35P, Year: 2014, Auxilliary Hydralic Valves: 4, Capacity: 5060 Lbs, Carriage: SSFP, Fork Length: 72.00", Full Free Height: 0.00", Load Center: 24", Mast: Triplex, Max Fork Height: 187.00", Overall Lowered Height: 87.00", Rear Tires: Solid Pneumatic, Hours: 8662, Chassis: 2 Wheel Drive, Fuel: LP
  • General Specifications
    • Manufacturer: Tailift
    • Model Number: FD35P
    • Type: Forklift
    • Subtype: Pneumatic Tire 4 Wheel Sit Down
  • Dimensions
    • Overall Length: 142.5 inches
    • Overall Width: 49.3 inches
    • Overall Height (Overhead Guard): 85.5 inches
    • Wheelbase: 74 inches
    • Ground Clearance: 8.3 inches
    • Turning Radius: 98.5 inches
  • Performance
    • Load Capacity: 7,700 lbs
    • Load Center: 24 inches
    • Travel Speed (Unloaded): 11.2 mph
    • Travel Speed (Loaded): 11 mph
    • Lifting Speed (Unloaded): 98.5 feet/min
    • Lifting Speed (Loaded): 92.5 feet/min
    • Gradeability (Loaded): 21%
    • Gradeability (Unloaded): 27%
  • Powertrain
    • Engine Type: Diesel
    • Engine Model: Isuzu 4JG2
    • Number of Cylinders: 4
    • Rated Power: 63.9 HP at 2,300 RPM
    • Torque: 139.6 lb-ft at 1,600 RPM
    • Transmission: Automatic
  • Weight
    • Service Weight: 11,464 lbs
  • Tires
    • Tire Type: Pneumatic
    • Front Tires: 300-15
    • Rear Tires: 7.00-12
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical Lever
  • Fuel Capacity
    • Fuel Tank Capacity: 21.1 gallons
  • Hydraulic System
    • Hydraulic Tank Capacity: 11 gallons
    • Hydraulic Pressure: 2,932 psi
