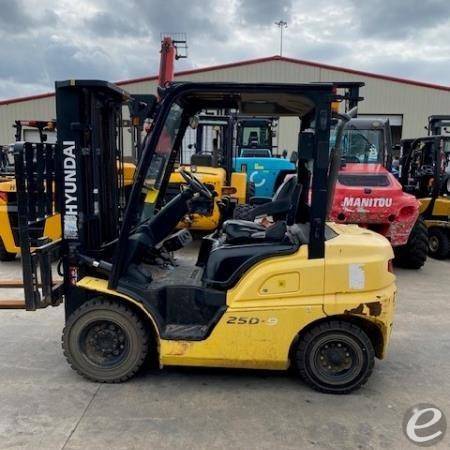

2015 Hyundai 25D-9

diesel pneumatic tire 4 wheel sit down

Call for price
Global Fleet Solutions
CONTACT INFO
Name:
Sales Rep

ADDRESS
Global Fleet Solutions
17300 W Valley Hwy
SeattleWashington 98188
ATTRIBUTES
STOCK #:
LS19715
YEAR:
2015
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
185 in
SERIAL #:
HHKHHN12KF0000061
SIDE SHIFTER:
Yes
HOUR METER:
3965
LOCATION:
POST DATE:
4/4/2025
Equipment Description
3965 Hours 2015 used HYUNDAI 25D-9 for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #LS19715, Stock Number: LS19715, Make: HYUNDAI, Model: 25D-9, Year: 2015, Auxilliary Hydralic Valves: 4, Capacity: 5000 Lbs, Carriage: S/S, Fork Length: 48.00", Full Free Height: 0.00", Load Center: 24", Mast: Triplex, Max Fork Height: 185.00", Overall Lowered Height: 84.00", Rear Tires: Standard Pneumatic, Hours: 3965, Chassis: 2 Wheel Drive, Fuel: Diesel
  • General Specifications
    • Model Number: 25D-9
    • Manufacturer: Hyundai
    • Type: Forklift
  • Engine
    • Type: Diesel
    • Model: D24-TE
    • Power: Approximately 58 HP
    • Rated Speed: 2,300 RPM
    • Cylinders: 4
    • Displacement: 146 in³
  • Dimensions
    • Total Length (without forks): 102 inches
    • Overall Width: 45 inches
    • Overall Height (Cabin): 86 inches
    • Ground Clearance: 4.5 inches
    • Wheelbase: 66 inches
  • Weights
    • Service Weight: Approximately 8,600 lbs
    • Load Capacity: 5,000 lbs
  • Performance
    • Travel Speed (Unloaded): 12 mph
    • Travel Speed (Loaded): 11 mph
    • Lifting Speed (Unloaded): 2.0 feet/sec
    • Lifting Speed (Loaded): 1.5 feet/sec
    • Gradeability (Loaded): 21%
  • Tires
    • Tires Type: Pneumatic
    • Front Tires: 7.00-12-12PR
    • Rear Tires: 6.00-9-10PR
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Manual Mechanical
  • Steering
    • Steering Type: Hydraulic Power Steering
    • Steering Angle: 90 degrees
  • Fuel System
    • Fuel Capacity: 14 gallons
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
