Equipment Description:

7336 Hours 2014 used DOOSAN BC25S-5 for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #RE-299-871, Stock Number: RE-299-871, Make: DOOSAN, Model: BC25S-5, Year: 2014, Auxilliary Hydralic Valves: 0, Capacity: 5000 Lbs, Carriage: S/S, Carriage Width: 38.00", Fork Length: 42.00", Fork Taper: Pallet, Fork Thickness: 1.50", Fork Width: 4.00", Full Free Height: 59.00", Load Center: 24", Mast: Triplex, Max Fork Height: 189.00", Overall Lowered Height: 86.00", Operator Protection: Open Overhead Guard, Rear Tires: Cushion, Voltage: 36V, Hours: 7336, Chassis: 2 Wheel Drive, Fuel: Electric

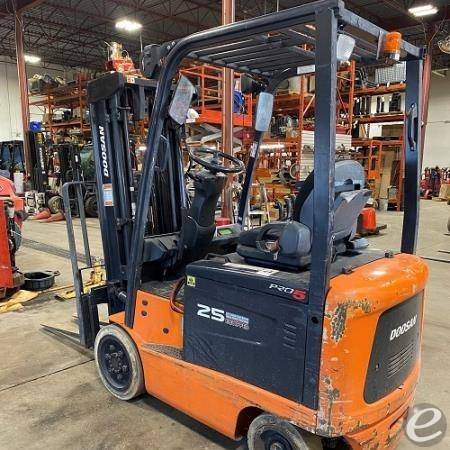

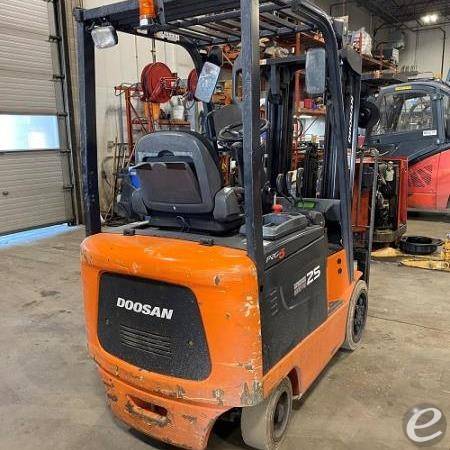

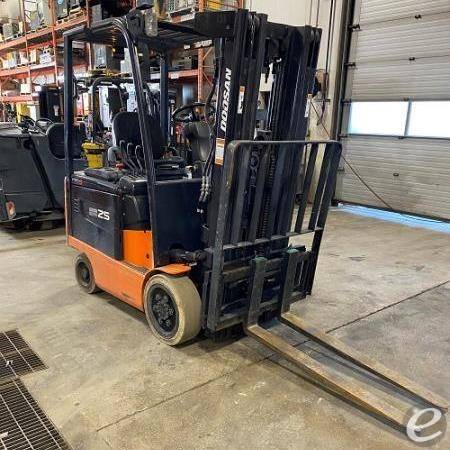

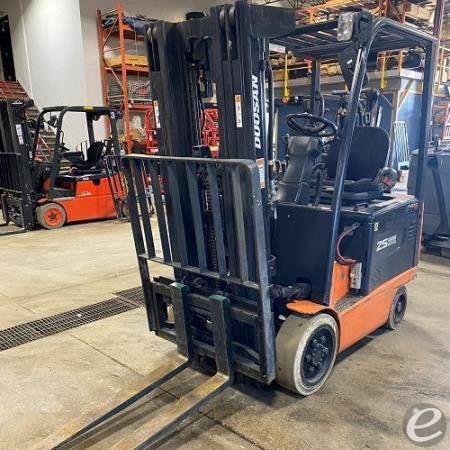

2014 Electric Doosan BC25S-5 Electric 4 Wheel Sit Down

Call for price

Contact Information

Global Fleet Solutions
17300 W Valley Hwy
Seattle, Washington 98188

CONTACT :

Sales Rep

PHONE :

1 888 451 2398

Stock #:

RE-299-871

YEAR:

2014

Manufacturer:

Doosan

MODEL #:

BC25S-5

CAPACITY:

5000

FUEL:

Electric

SUBCATEGORY:

Electric 4 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

189 in

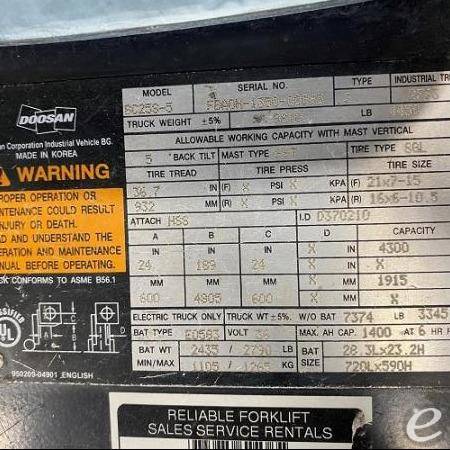

SERIAL #:

FBA0H-1350-00963

SIDE SHIFTER:

Yes

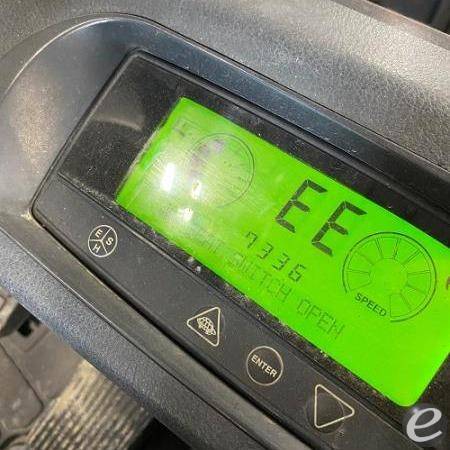

HOUR METER:

7336

LOCATION:

Manitoba

Equipment Description:

This product was posted on 10/3/2024

General Specifications
- Model: BC25S-5
- Type: Electric Forklift
- Capacity: 5,000 lbs (2,268 kg)
Dimensions
- Overall Length to Fork Face: 85.6 inches (2173 mm)
- Overall Width: 43.3 inches (1100 mm)
- Overall Height with Overhead Guard: 83.5 inches (2120 mm)
- Wheelbase: 53.1 inches (1350 mm)
- Ground Clearance at Center of Wheelbase: 3.9 inches (100 mm)
Mast Specifications
- Mast Type: 2-Stage with Free Lift
- Maximum Fork Height: 118 inches (3000 mm)
- Free Lift: 5.9 inches (150 mm)
- Overall Lowered Height: 83.5 inches (2120 mm)
- Overall Extended Height: 165.4 inches (4200 mm)
Performance
- Lift Speed (Loaded/Unloaded): 125/165 ft/min (0.64/0.84 m/s)
- Lowering Speed (Loaded/Unloaded): 98/90 ft/min (0.50/0.46 m/s)
- Travel Speed (Loaded/Unloaded): 10.6/11.2 mph (17.0/18.0 km/h)
Powertrain
- Drive Motor Output: 9.7 kW
- Lift Motor Output: 11.8 kW
- Battery Voltage/Capacity: 48V/600 Ah
Tires
- Tire Type: Solid Pneumatic
- Front Tire Size: 21 x 7 x 15 inches
- Rear Tire Size: 16 x 6 x 10.5 inches
Steering & Brakes
- Steering Type: Hydraulic Power Steering
- Service Brake: Hydraulic
- Parking Brake: Mechanical
Options
- Cabin Options: Closed or Open Cabin
- Attachments: Sideshift, Fork Positioner
- Additional Lighting: LED Work Lights
