Equipment Description:

9705 Hours 2015 used LINDE E18AC for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #RE-203-355, Stock Number: RE-203-355, Make: LINDE, Model: E18AC, Year: 2015, Auxilliary Hydralic Valves: 3, Capacity: 3500 Lbs, Carriage: Standard, Fork Length: 42.00", Fork Taper: Pallet, Fork Thickness: 1.75", Fork Width: 4.00", Full Free Height: 55.00", Load Center: 24", Mast: Duplex, Max Fork Height: 165.00", Overall Lowered Height: 84.00", Operator Protection: Open Overhead Guard, Rear Tires: Cushion, Voltage: 48V, Hours: 9705, Chassis: 2 Wheel Drive, Fuel: Electric

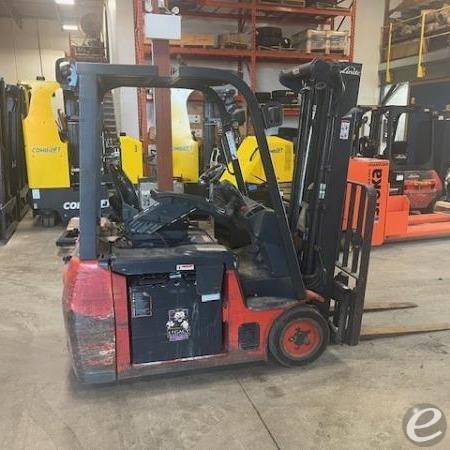

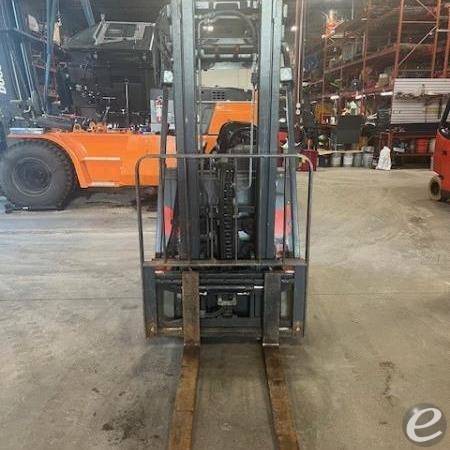

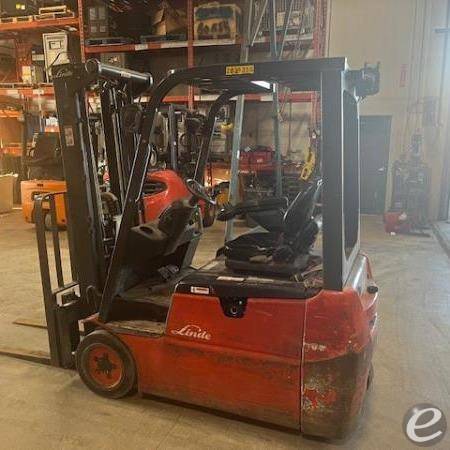

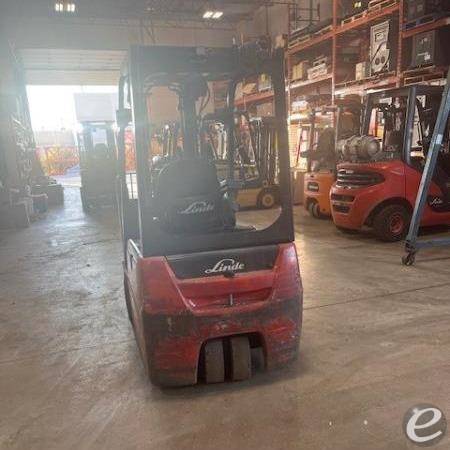

2015 Electric Linde E18AC Electric 3 Wheel Sit Down

Call for price

Contact Information

Global Fleet Solutions
17300 W Valley Hwy
Seattle, Washington 98188

CONTACT :

Sales Rep

PHONE :

1 888 451 2398

Stock #:

RE-203-355

YEAR:

2015

Manufacturer:

Linde

MODEL #:

E18AC

CAPACITY:

3500

FUEL:

Electric

SUBCATEGORY:

Electric 3 Wheel Sit Down

MAST TYPE:

Two Stage Full Free

MAST HEIGHT:

165 in

SERIAL #:

A1X346F00528

HOUR METER:

9705

LOCATION:

Manitoba

Equipment Description:

This product was posted on 10/3/2024

General Information
- Model: Linde E18AC
- Type: Electric Counterbalance Forklift
- Manufacturer: Linde Material Handling
Capacity and Load
- Load Capacity: 1800 kg (3970 lbs)
- Load Center Distance: 500 mm (19.7 inches)
Dimensions
- Overall Length: 3200 mm (126 inches)
- Overall Width: 1090 mm (43 inches)
- Overall Height: Typically around 2150 mm (84.6 inches), varies with mast
- Turning Radius: 1466 mm (57.7 inches)
- Wheelbase: 1388 mm (54.6 inches)
Performance
- Travel Speed: Approximately 16 km/h (9.9 mph)
- Lifting Speed: Typically around 0.55 m/s (1.8 ft/s) without load
- Lowering Speed: Approximately 0.50 m/s (1.6 ft/s) without load
Battery and Power
- Battery Voltage: 48 volts
- Battery Capacity: Typically ranges from 420 to 625 Ah
- Drive Motor: AC motor technology
Wheels and Tires
- Front Tires: Pneumatic or solid, depending on configuration
- Rear Tires: Pneumatic or solid, depending on configuration
Mast and Forks
- Mast Type: Duplex or triplex available
- Maximum Lifting Height: Typically up to 4870 mm (192 inches) with standard mast
- Fork Dimensions: 100 mm x 35 mm x 920 mm (3.9 x 1.37 x 36.2 inches)
Additional Features
- Steering: Electric power steering for enhanced maneuverability
- Brakes: Hydraulic braking system
- Operator's Compartment: Ergonomically designed for comfort and efficiency

Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
