2011 Diesel Cat TL1255

Holt of California W Sacramento, California (2053 miles away)

Overview
Spec Sheet
Shipping/Freight

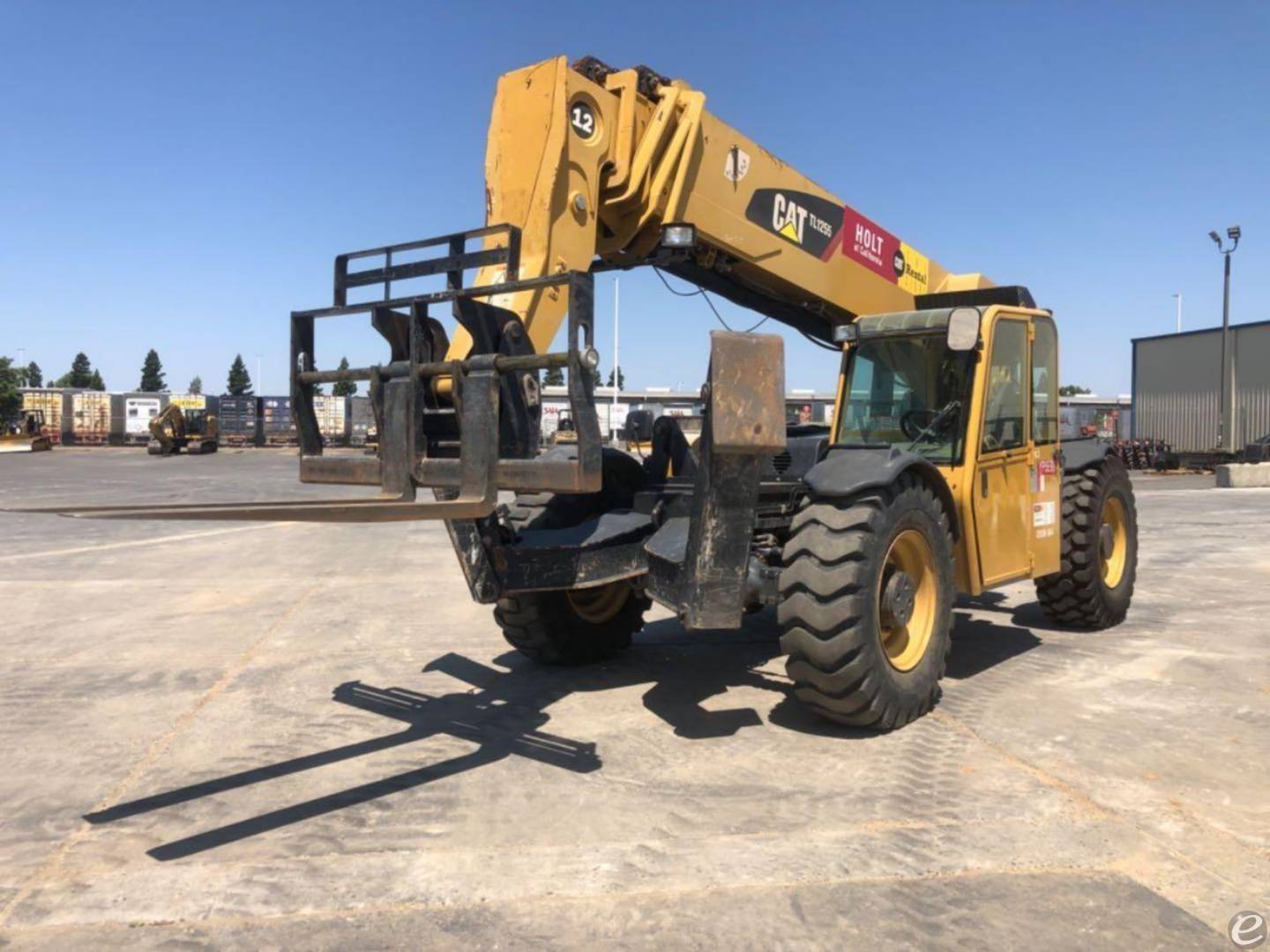

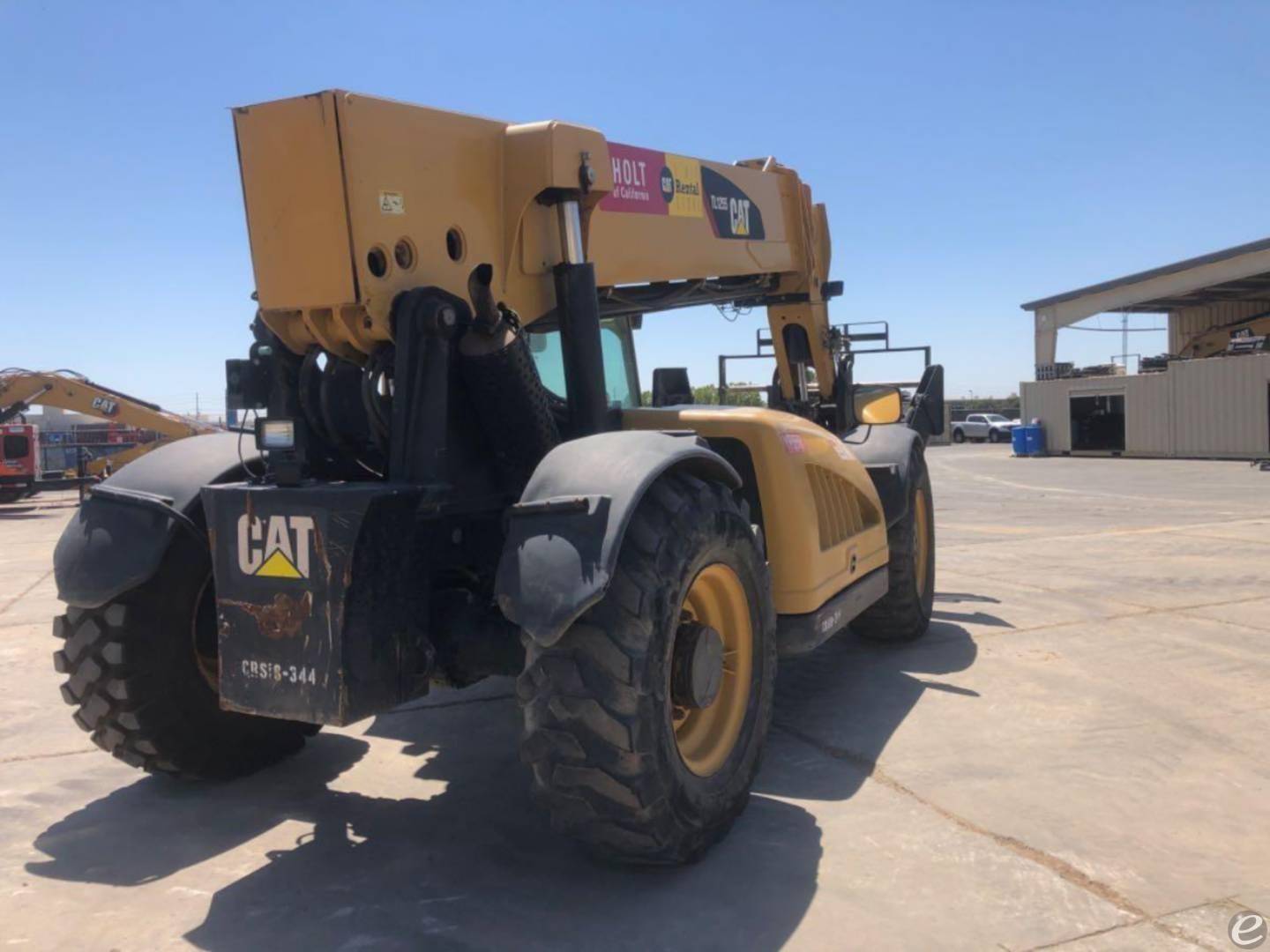

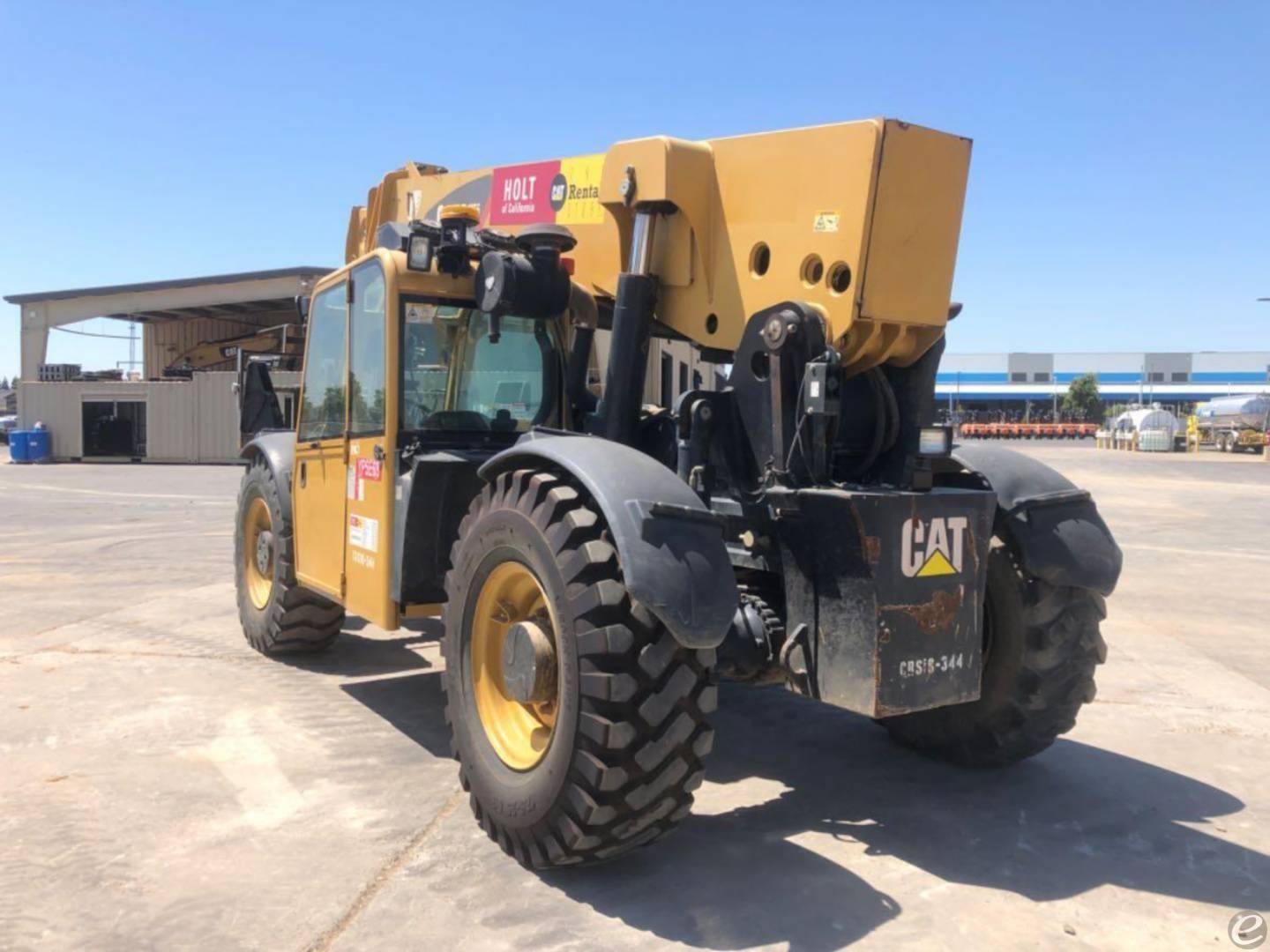

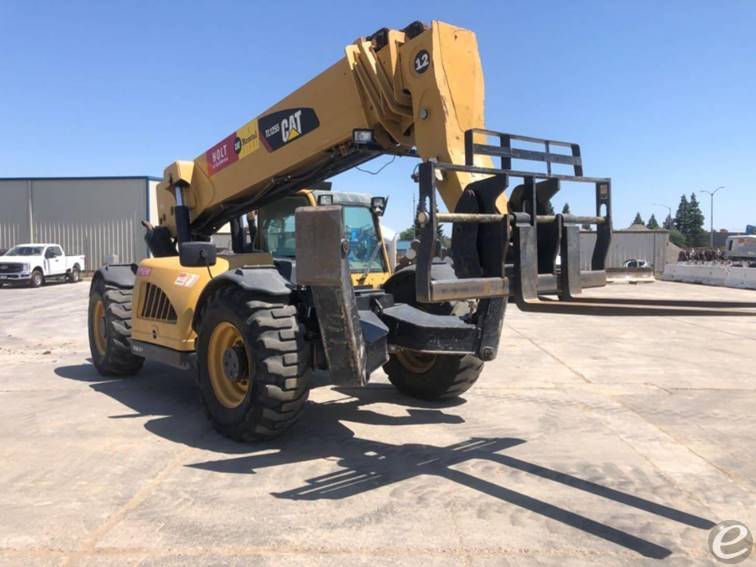

2011 Cat TL1255

Diesel Telehandlers (Telescopic Mast)

$69,950 USDBuy or Rent
CONTACT INFO
Name:
David
Phone:
Fax:

ADDRESS
Holt of California
3850 Channel Dr
W Sacramento, California 95691
ATTRIBUTES
STOCK #:
CRS18-344
YEAR:
2011
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
ft
SERIAL #:
TBN00730
CONDITION:
Used/Rental
HOUR METER:
4627
LOCATION:
DESCRIPTION:
Online Owner's Manual
POST DATE:
12/1/2024
Equipment Description
  • Engine
    • Engine Model: Cat C4.4 ACERT
    • Net Power: 142 hp (106 kW)
    • Gross Power: 155 hp (115 kW)
    • Displacement: 268.5 in³ (4.4 L)
    • Peak Torque: 560 N·m (413 lb ft)
    • Rated Speed: 2,200 rpm
  • Operating Specifications
    • Rated Load Capacity: 12,000 lbs (5,443 kg)
    • Maximum Lift Height: 54 ft 3 in (16.54 m)
    • Maximum Forward Reach: 42 ft (12.8 m)
    • Top Travel Speed: 20 mph (32 km/h)
  • Dimensions
    • Length to Front of Carriage: 20 ft 10 in (6,350 mm)
    • Wheelbase: 12 ft (3,658 mm)
    • Ground Clearance: 1 ft 5 in (439 mm)
    • Height: 8 ft 11 in (2,715 mm)
    • Width: 8 ft 2 in (2,495 mm)
  • Weight
    • Operating Weight: 36,600 lbs (16,602 kg)
  • Hydraulic System
    • Maximum System Pressure: 3,700 psi (25,514 kPa)
    • Hydraulic Cycle Time - Boom Up: 13.5 seconds
    • Hydraulic Cycle Time - Boom Down: 10.8 seconds
    • Hydraulic Cycle Time - Tele In: 11.5 seconds
    • Hydraulic Cycle Time - Tele Out: 15.5 seconds
  • Steering
    • Steering Type: 4x4, 4-wheel steer
    • Steering Modes: Front steer, crab steer, coordinated steer
  • Tires
    • Standard Size: 400/75-28
  • Other Features
    • Fuel Tank Capacity: 73.2 gallons (277 L)
    • Hydraulic Tank Capacity: 30 gallons (114 L)
    • Axles: Planetary, front and rear
