Equipment Description:

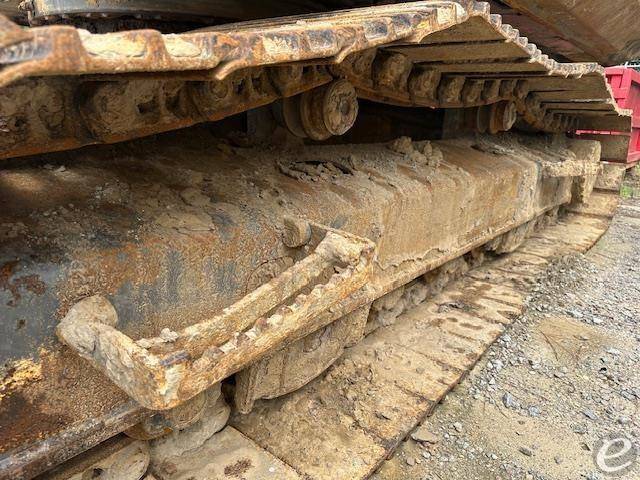

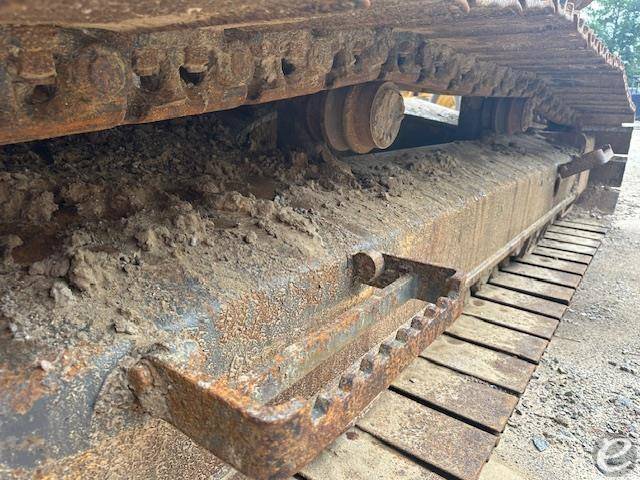

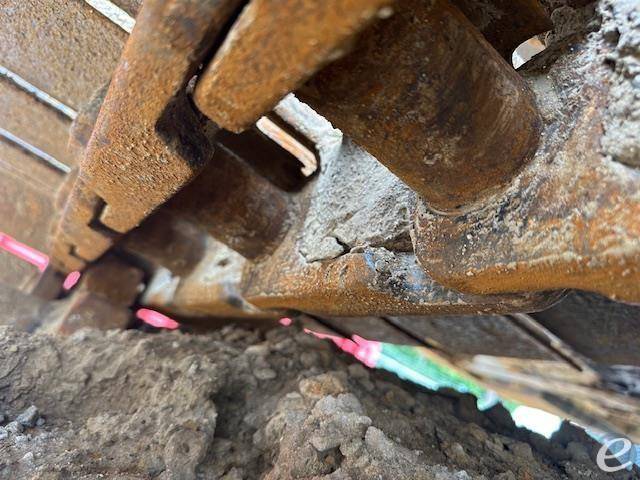

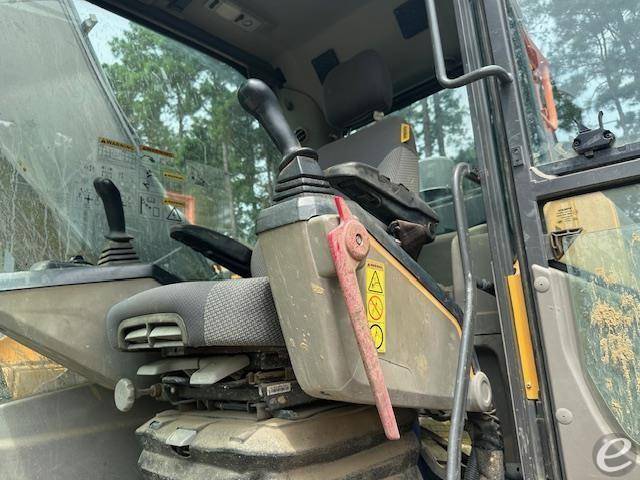

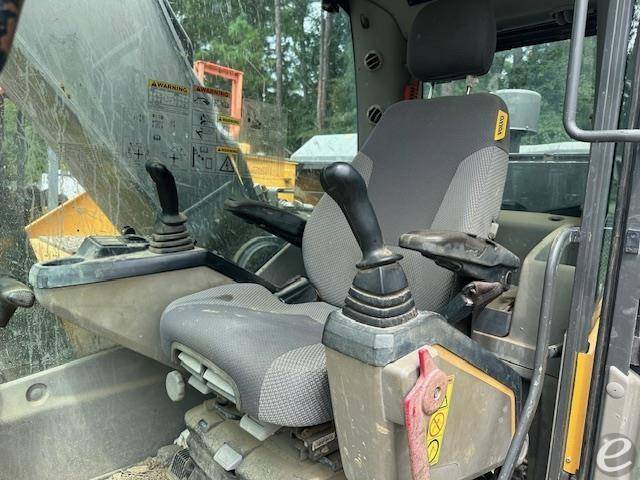

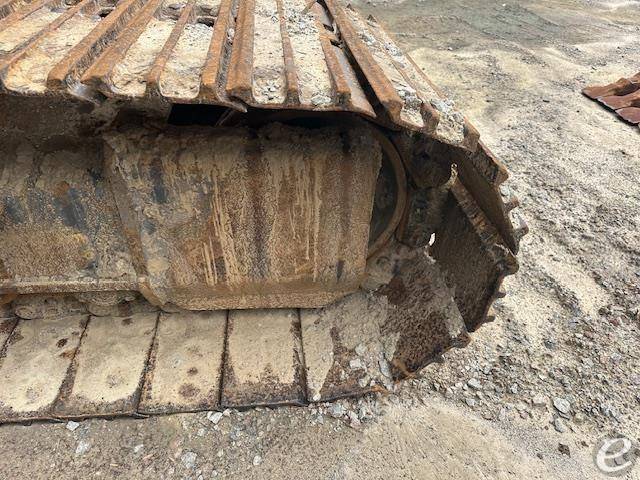

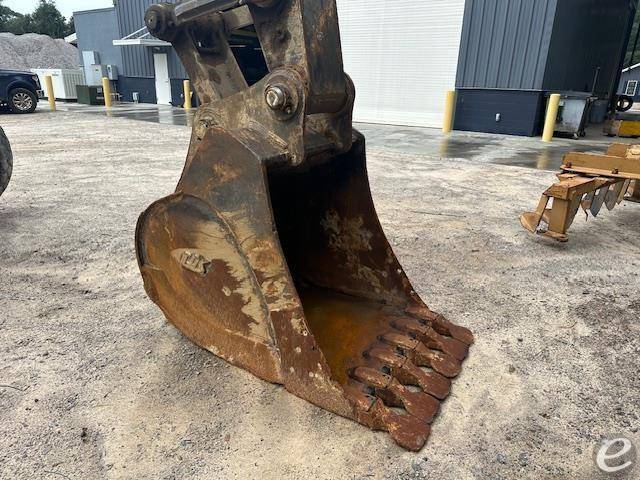

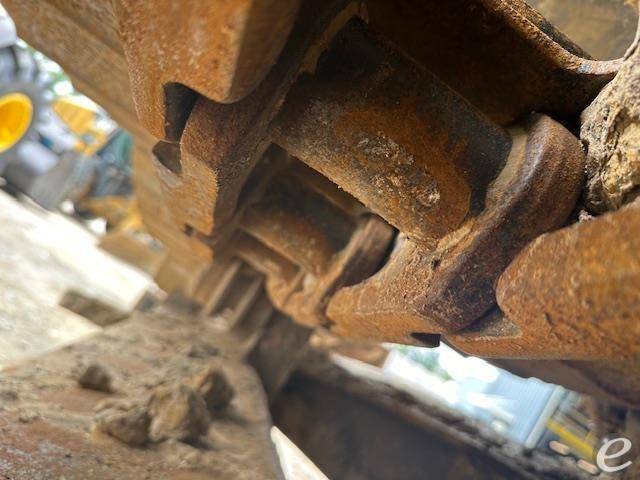

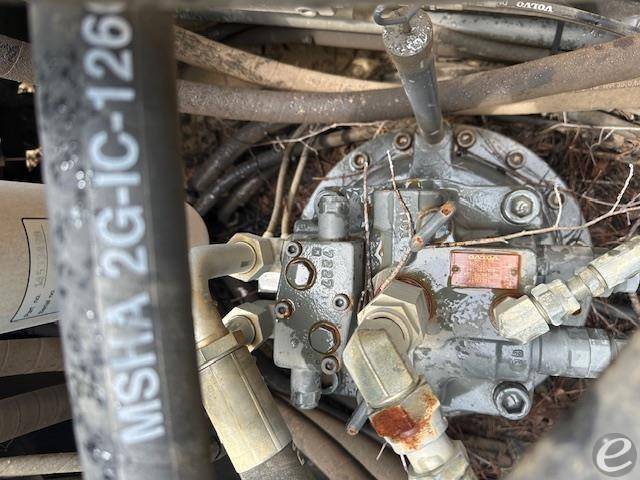

CAB WITH AC, VOLVO DIESEL, BUCKET, UNDERCARRIAGE AT 60% RUNS GOOD BUT HAS A TURNTABLE PUMP PROBLEM

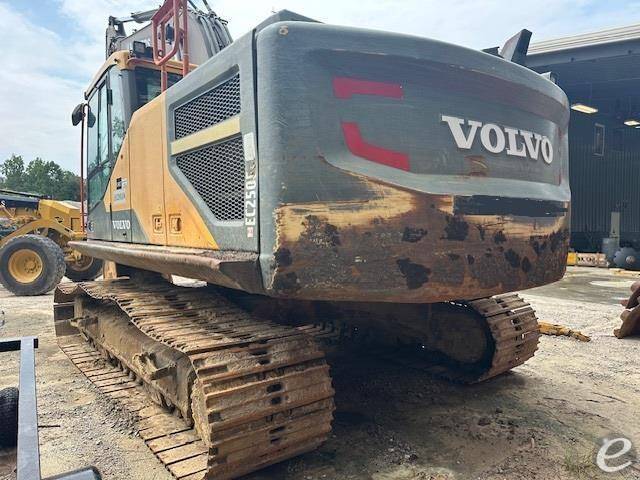

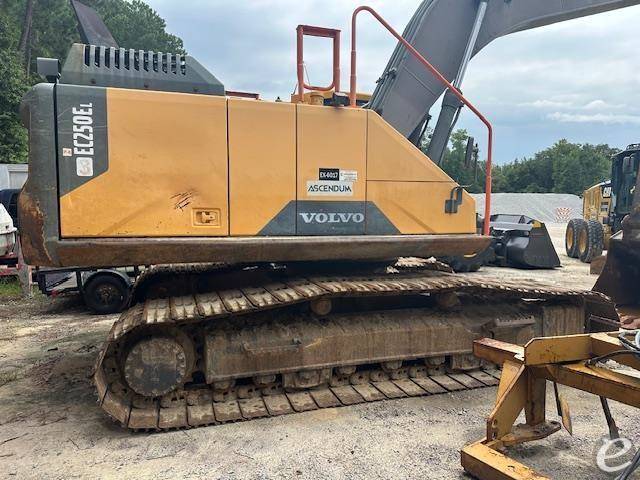

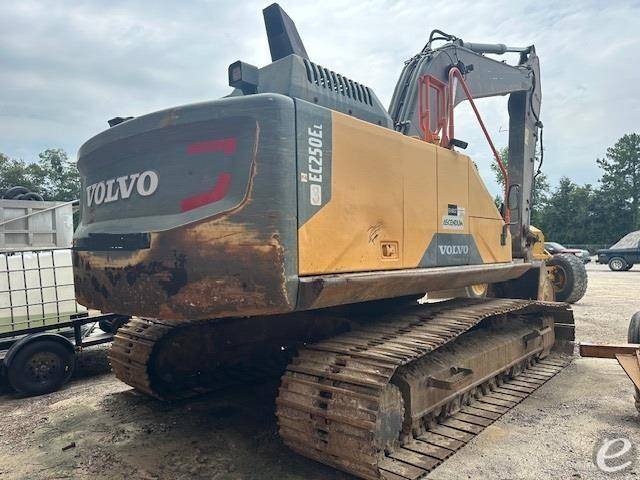

2016 Diesel Volvo EC250EL Earth Moving and Construction

Call for price

Contact Information

4M Iron
344 Winningham Road,
St. George, South Carolina 29477

CONTACT :

Mike Finley

PHONE :

843-594-0077

Stock #:

16744

YEAR:

2016

Manufacturer:

Volvo

MODEL #:

EC250EL

FUEL:

Diesel

SUBCATEGORY:

Earth Moving and Construction

CONDITION:

Used

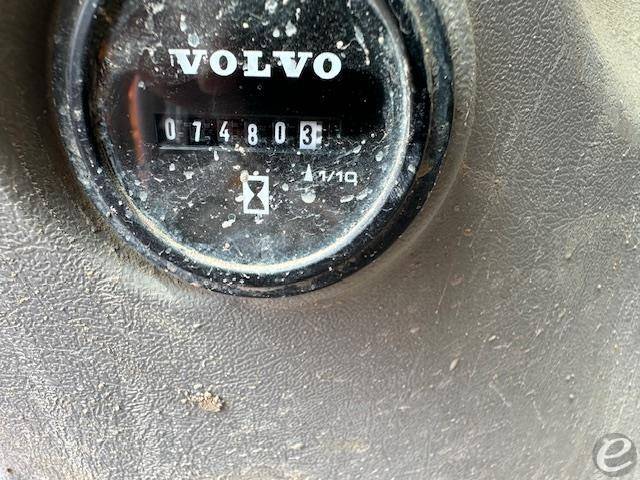

HOUR METER:

7480

LOCATION:

South Carolina [29477]

Equipment Description:

CAB WITH AC, VOLVO DIESEL, BUCKET, UNDERCARRIAGE AT 60% RUNS GOOD BUT HAS A TURNTABLE PUMP PROBLEM

This product was posted on 10/31/2024

Operating Weight
- Approximate Operating Weight: 25,000 - 30,700 kg (55,115 - 67,680 lbs)

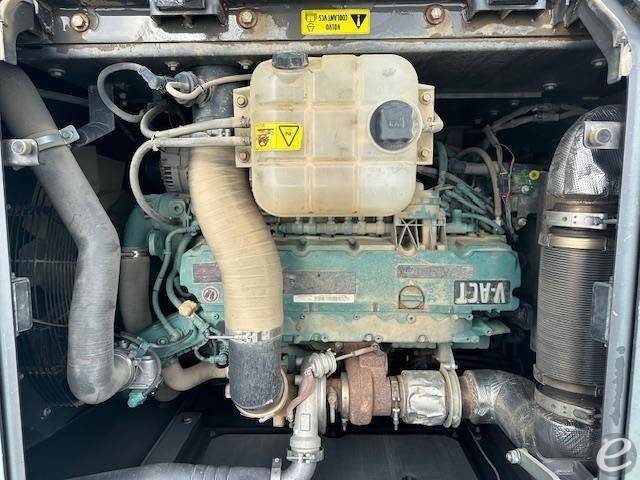

Engine Specifications
- Engine Model: Volvo D8J
- Engine Power: 168 kW (225 hp) @ 1,800 rpm
- Engine Emissions: EPA Tier 4 Final/Stage IV
Hydraulic System

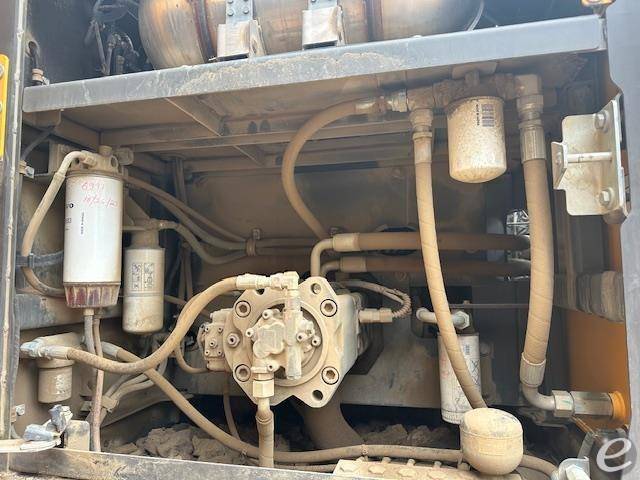

- Main Pumps: Variable displacement axial piston pumps
- Maximum Flow: 2 x 224 L/min (2 x 59 gal/min)
- Relief Valve Pressure: 35.3 MPa (5,118 psi)
Digging Performance
- Maximum Digging Reach: 10,930 mm (35' 10")
- Maximum Digging Depth: 7,770 mm (25' 6")
- Maximum Loading Height: 7,390 mm (24' 3")
- Bucket Digging Force: 149 kN (33,502 lbf)
- Arm Digging Force: 123 kN (27,634 lbf)
Dimensions
- Overall Length: 10,260 mm (33' 8")
- Overall Width: 3,190 mm (10' 6")
- Overall Height (to top of cab): 3,050 mm (10' 0")
- Tail Swing Radius: 3,075 mm (10' 1")

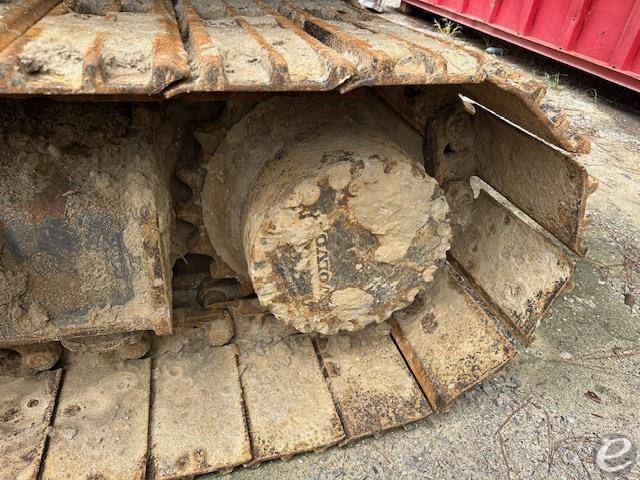

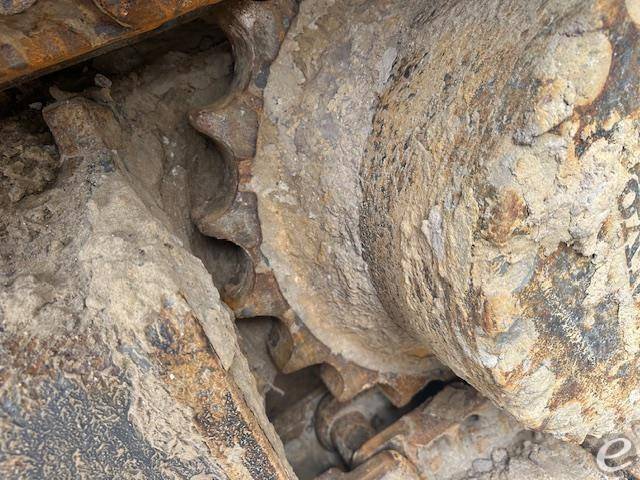

Track Information
- Track Length: 4,490 mm (14' 9")
- Track Width: 600 mm (1' 11")
- Ground Clearance: 465 mm (1' 6")
Capacities
- Fuel Tank: 425 L (112 gal)
- Hydraulic System, Including Tank: 290 L (77 gal)
- Hydraulic Tank: 130 L (34 gal)
- Engine Oil: 25 L (6.6 gal)
Performance
- Travel Speed: 3.1 - 5.6 km/h (1.9 - 3.5 mph)
- Gradeability: 35° or 70%
