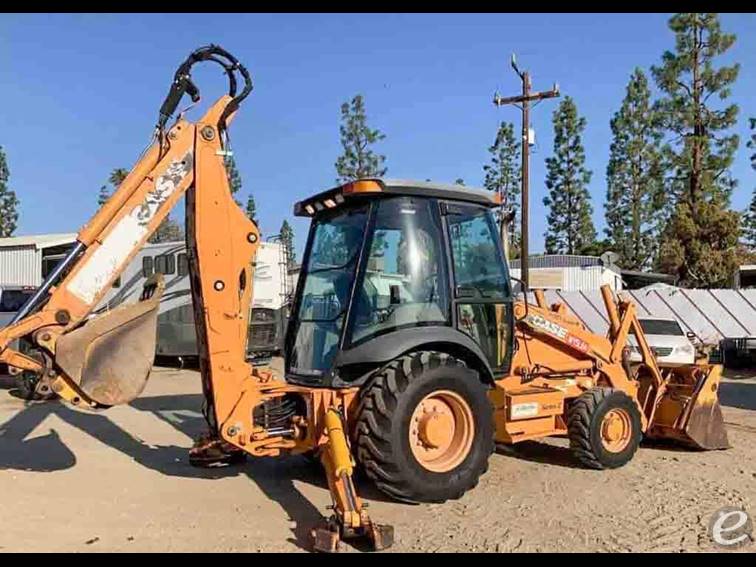

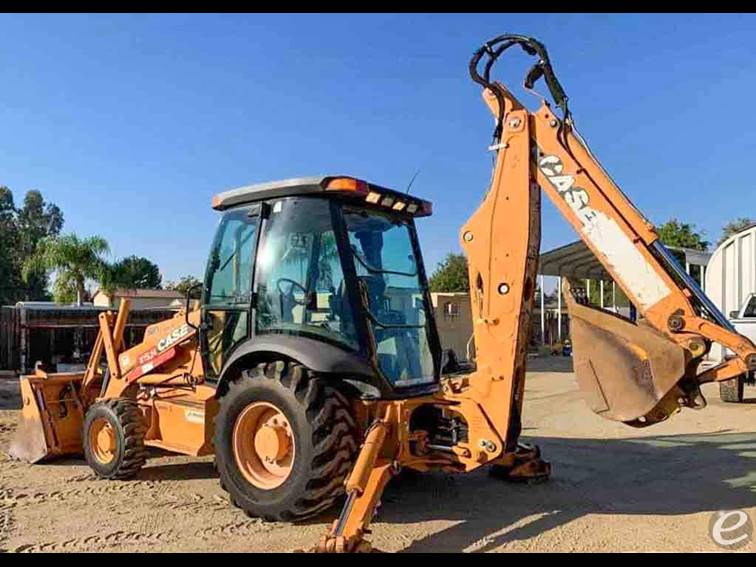

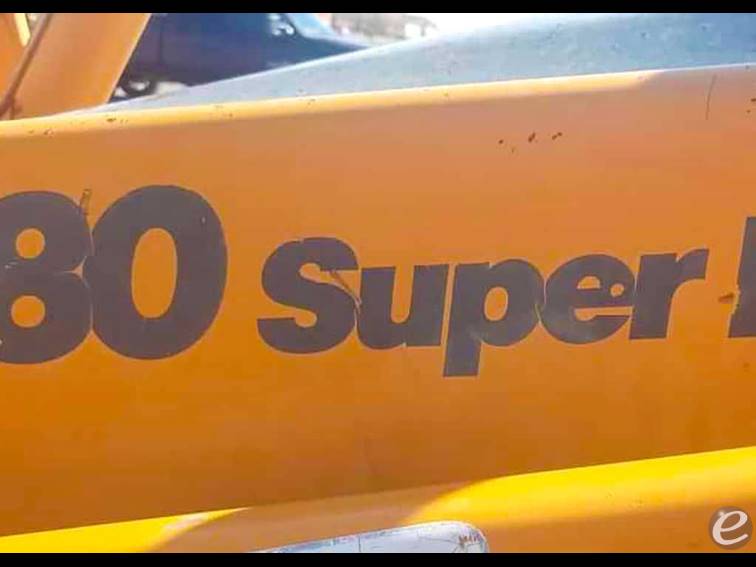

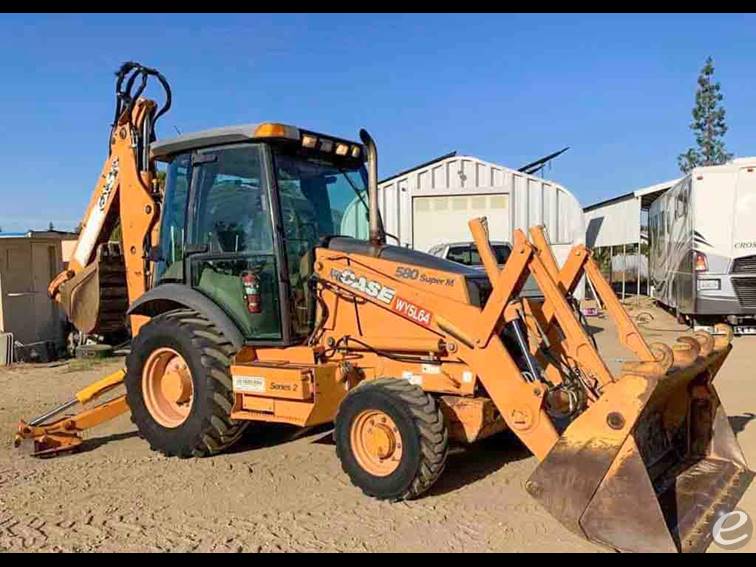

2002 Diesel Case 580 SUPER M SERIES

$39,226 USDBuy or Rent
Contact Information
Discount Forklift
4905 Lima St
Denver, Colorado 80239
CONTACT :
Sales Dept
PHONE :
FAX :
Stock #:
5657
YEAR:
2002
Manufacturer:
CAPACITY:
9164
FUEL:
Diesel
MAST HEIGHT:
166 / 158 in
SERIAL #:
N6C411170
CONDITION:
Used/Rental
HOUR METER:
6210
LOCATION:
Equipment Description:

Video: https://youtu.be/N_H0wAZlC3Q
Always serviced and well maintained. CASE is an industry leader of reliable lift trucks which are legendary for their association with rugged reliability in the toughest environments.
  • Engine
    • Engine Model: Case Family IV 445T/M2, Tier II certified
    • Gross Power: 97 hp (72 kW)
    • Net Power: 90 hp (67 kW)
    • Peak Torque: 289 lb-ft (392 Nm) at 1400 rpm
    • Engine Cooling: Liquid
  • Operational Specifications
    • Operating Weight: 14,250 lbs (6,464 kg)
    • Fuel Capacity: 28.5 gallons (108 liters)
    • Cooling System Fluid Capacity: 4 gallons (15 liters)
    • Hydraulic System Fluid Capacity: 33.5 gallons (126.8 liters)
  • Transmission
    • Type: Powershift
    • Number of Speeds: 4F/3R

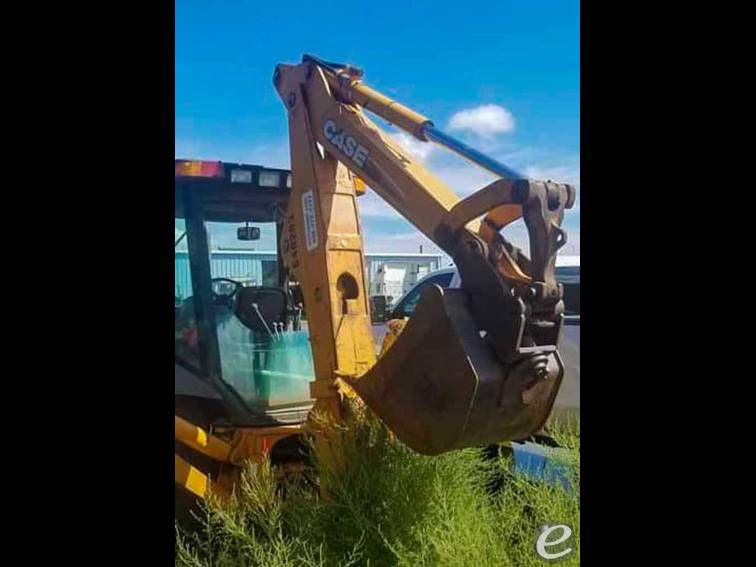

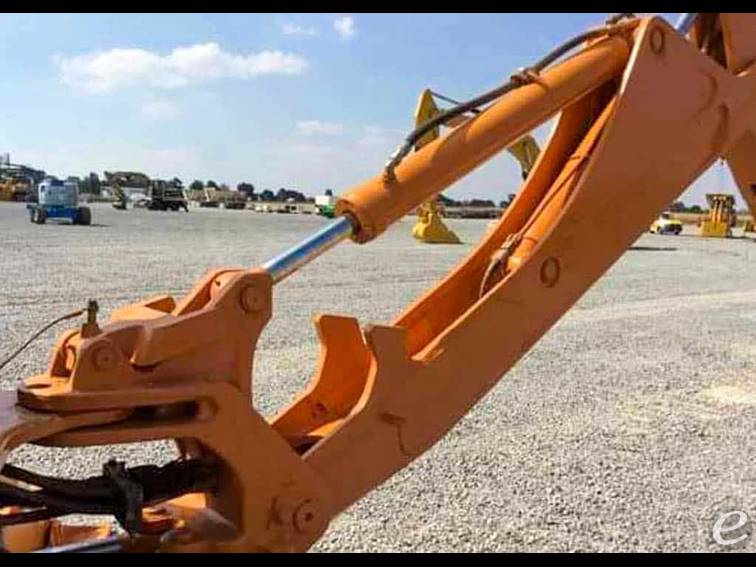

  • Backhoe Specifications
    • Maximum Dig Depth: 14 ft 5 in (4.4 m)
    • Bucket Dig Force: 12,821 lbs (5,816 kg)
    • Stick Dig Force: 8,696 lbs (3,944 kg)
    • Swing Arc: 180°

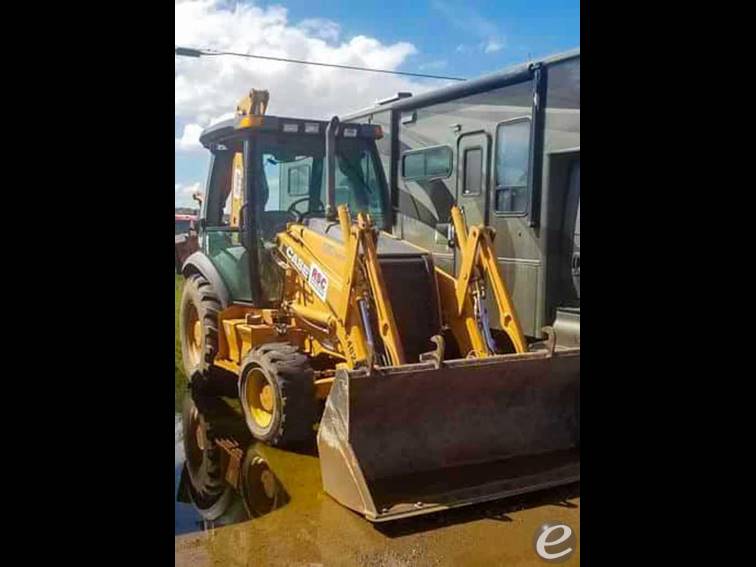

  • Loader Specifications
    • Bucket Capacity: 1.03-1.25 cubic yards (0.79-0.95 cubic meters)
    • Breakout Force: 10,582 lbs (4,800 kg)
    • Lifting Capacity: 7,201 lbs (3,266 kg)
    • Dump Clearance: 9 ft 4 in (2.84 m)
  • Tires
    • Front Tires: 11L x 16, 12-ply
    • Rear Tires: 19.5L x 24, 10-ply
  • Hydraulics
    • Pump Type: Gear Pump
    • System Pressure: 3,000 psi (207 bar)
    • Pump Flow: 43.5 gpm (164.6 L/min)
  • Brakes
    • Type: Hydraulic Wet Disc
    • Service Brake: Hand and Foot Operated
  • Dimensions
    • Transport Length: 24 ft 2 in (7.37 m)
    • Transport Width: 7 ft 2 in (2.18 m)
    • Transport Height: 11 ft 2 in (3.4 m)
    • Wheelbase: 7 ft 4 in (2.24 m)
    • Ground Clearance: 1 ft 1 in (34 cm)
