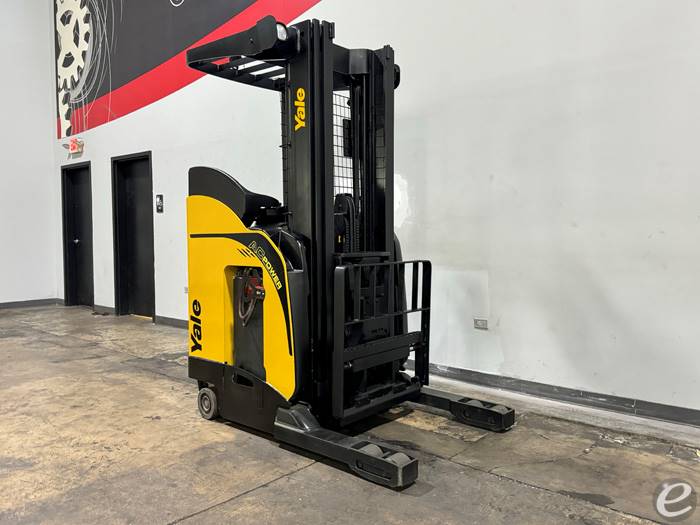

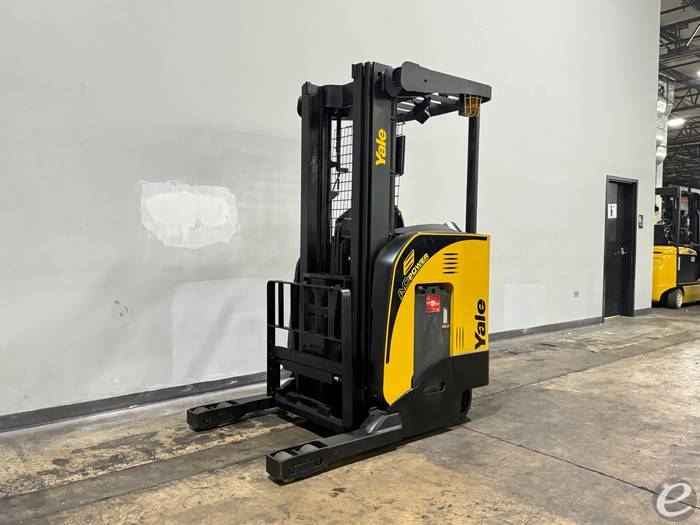

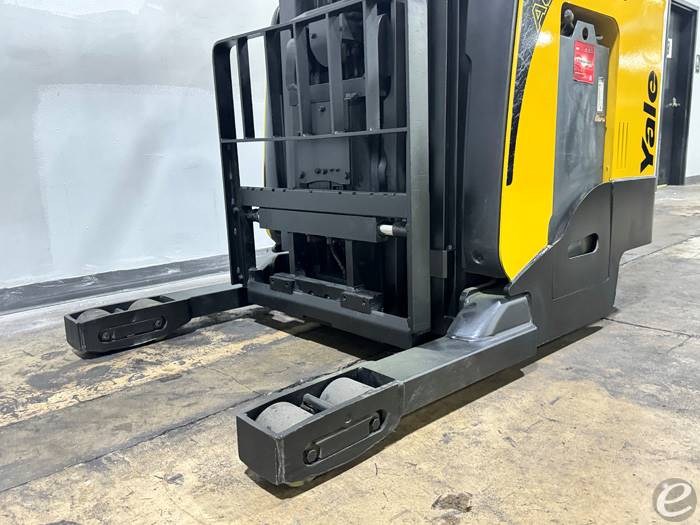

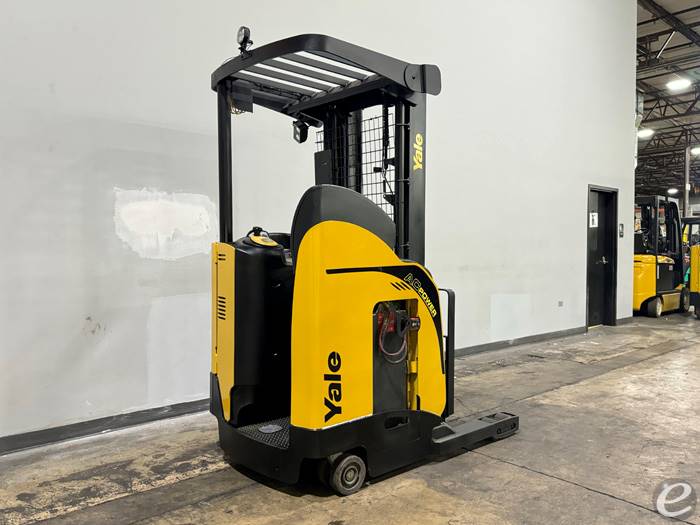

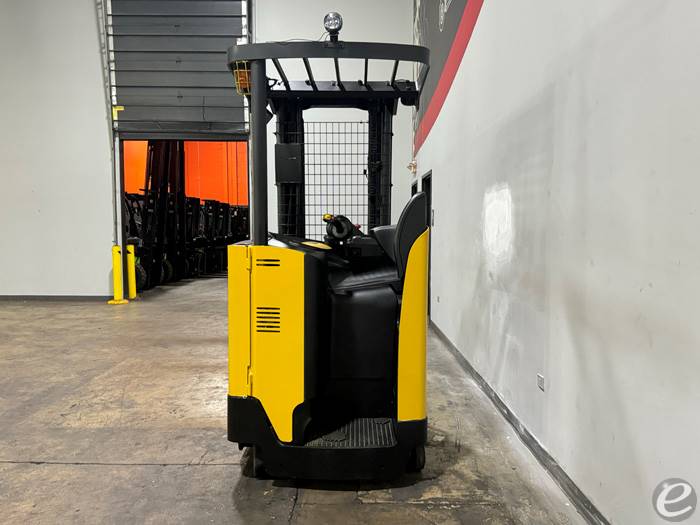

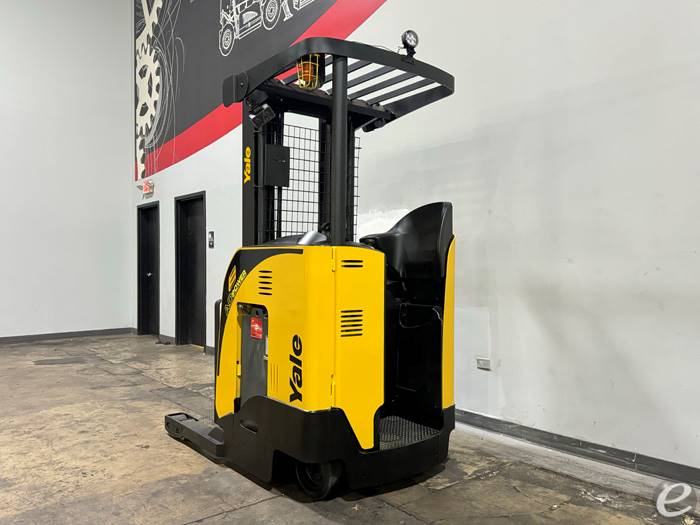

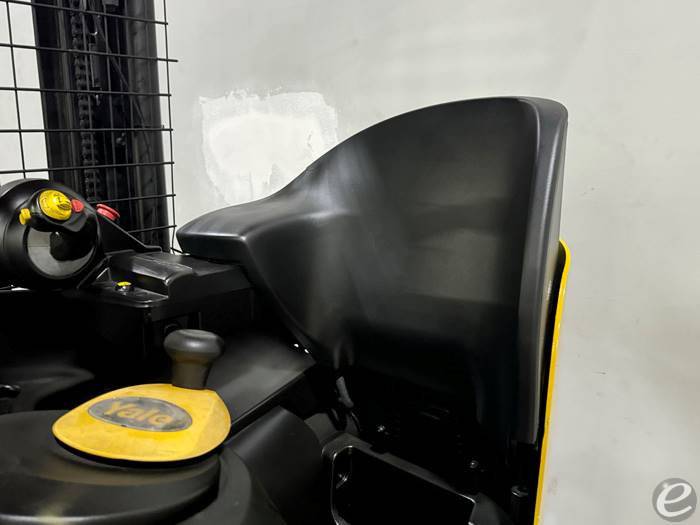

2017 Yale NR035DB

electric order picker

Call for price
Illinois Lift Equipment
CONTACT INFO
Name:
John Hellyer
Phone:

ADDRESS
Illinois Lift Equipment
640 Industrial Dr
CaryIllinois 60013
ATTRIBUTES
STOCK #:
14531
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
35000
FUEL:
Electric
SUBCATEGORY:
MAST TYPE:
Three Stage
MAST HEIGHT:
91 / 203 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
3257
LOCATION:
Illinois [60013]
DESCRIPTION:
3500LB CAPACITY 3 STAGE MAST 91" LOWERED 203" RAISED
POST DATE:
3/7/2025
Equipment Description
3500LB CAPACITY 3 STAGE MAST 91" LOWERED HEIGHT 203" RAISED HEIGHT SINGLE REACH 24V BATTERY INTEGRAL SIDESHIFTER FORKS INCLUDED 3,257 HOURS
  • Model Number: NR035DB
  • Manufacturer: Yale
  • Type: Forklift
  • General Specifications
    • Power Source: Electric
    • Operator Type: Sit-down Driver
    • Truck Weight: Approximately 8,500 lbs
    • Steering: Electric power steering
  • Dimensions
    • Overall Length: Approximately 83 inches
    • Overall Width: Approximately 42 inches
    • Height to Top of Overhead Guard: Approximately 88 inches
    • Wheelbase: Approximately 60 inches
    • Fork Length: Varies
  • Performance
    • Load Capacity: 3,500 lbs
    • Travel Speed: Up to 7 mph
    • Lift Speed: Approximately 60 feet per minute
    • Lowering Speed: Approximately 80 feet per minute
  • Powertrain
    • Battery Voltage: 36V
    • Motor Type: AC motor
    • Drive Type: Single drive motor
  • Wheels and Tires
    • Tire Type: Polyurethane
    • Number of Wheels: 3 (2 front, 1 rear)
    • Front Tire Size: Approximately 10 inches in diameter
    • Rear Tire Size: Approximately 14 inches in diameter
  • Brakes
    • Brake Type: Electric regenerative and disc brakes
    • Parking Brake: Automatic
  • Additional Features

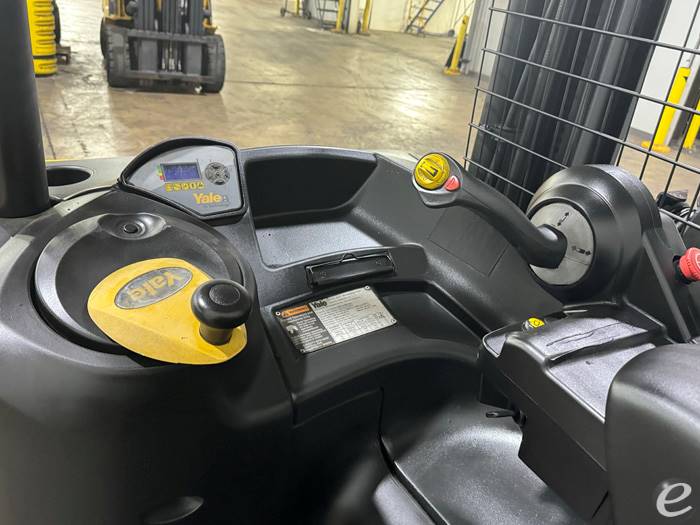

    • Display: Digital multifaceted display
    • Lighting: LED work lights
    • Safety Features: Overhead guard, seat belt, and backup alarm
