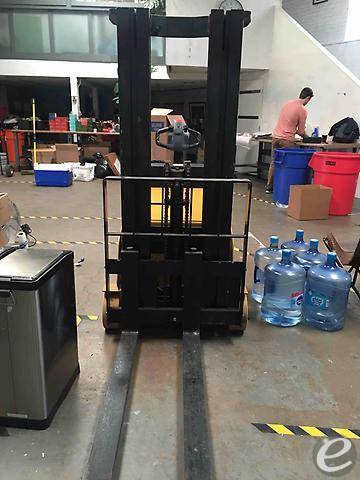

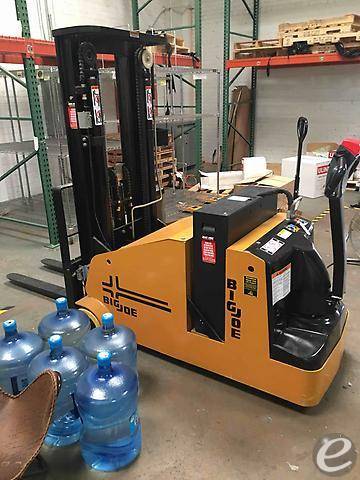

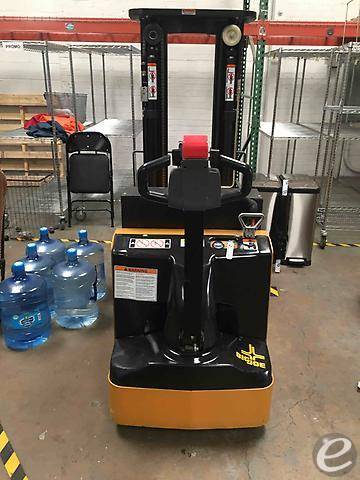

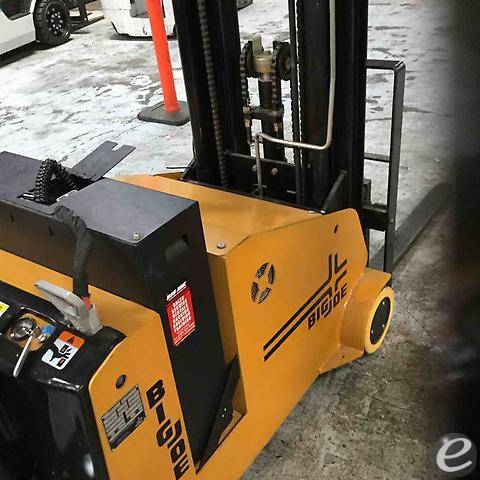

2015 Big Joe CB-22-157

electric walkie straddle stacker

$14,500 USD
CONTACT INFO
Name:
Sales Dept
Phone:

ADDRESS
Big Joe Handling Systems
25932 Eden Landing Rd
HaywardCalifornia 94545
ATTRIBUTES
STOCK #:
2760
YEAR:
2015
Manufacturer:
MODEL #:
CAPACITY:
2200
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
72 / 157 in
SERIAL #:
S2410463
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
129
LOCATION:
California [94545]
POST DATE:
3/2/2025
Equipment Description
Big Joe Counterbalance Stacker • 2200 Lbs Capacity • Lifting Height 157" • 24v Battery Pack w/ Built in Charger • Control Handle with Thumb Drive Function • Fingertip Lift and Lower Function • Tilting Carriage • View Specs Here: https://tinyurl.com/msw4avm9
  • General Specifications
    • Model Number: CB-22-157
    • Manufacturer: Big Joe
    • Type: Forklift
    • Subtype: Electric Walkie Straddle Stacker
  • Performance
    • Drive: Electric
    • Load Capacity: 2,200 lbs
    • Travel Speed: Up to 3.4 mph
    • Lift Speed: 49 ft/min (unloaded)
    • Lowering Speed: 86 ft/min (unloaded)
    • Gradeability: 8% (loaded), 16% (unloaded)
  • Dimensions
    • Overall Length: 68 inches
    • Overall Width: 46 inches
    • Overall Height: Varies
    • Fork Length: Varies
    • Wheelbase: 51 inches
    • Turning Radius: 54 inches
  • Weight
    • Service Weight: Approximately 2,650 lbs
  • Battery
    • Battery: 24V
    • Battery Capacity: 200 Ah
    • Battery Weight: Approximately 500 lbs
  • Wheels
    • Load Wheels: Polyurethane
    • Drive Wheel Diameter: 10 inches
    • Load Wheel Diameter: 3 inches
  • Brakes
    • Parking Brake: Electromechanical
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
