2017 LP Gas Hyster S120FTPRS Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

Call for price
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
14093
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
12000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
99 / 208 in
SIDE SHIFTER:
No
CONDITION:
Used
LOCATION:
DESCRIPTION:
12000LB CAPACITY 3 STAGE MAST 99" LOWERED 208" RAISED
Equipment Description:
12000LB CAPACITY 3 STAGE MAST 99" LOWERED HEIGHT 208" RAISED HEIGHT LPG FUEL CUSHION TIRES 4 WAY HYDRAULICS PLUMBED TO CARRIAGE FINGER TIP HYDRAULIC CONTROLS LEVER SHIFT AUTOMATIC TRANSMISSION FORKS
  • General Specifications
    • Model: S120FTPRS
    • Manufacturer: Hyster
    • Type: Internal Combustion Engine Pneumatic Tire Forklift
    • Capacity: 12,000 lbs / 5,443 kg
    • Load Center: 24 inches / 600 mm
  • Engine Specifications
    • Engine Type: LPG/Dual-Fuel
    • Engine Model: PSI 4.3L V6
    • Power: 89 HP / 66 kW at 2,400 RPM
    • Torque: 274 lb-ft / 371 Nm at 1,600 RPM
  • Dimensions
    • Overall Length: 164.4 inches / 4,176 mm
    • Overall Width: 55 inches / 1,397 mm
    • Height to Top of Overhead Guard: 88.8 inches / 2,255 mm
    • Wheelbase: 92 inches / 2,336 mm
    • Ground Clearance: 6.1 inches / 155 mm
    • Turning Radius: 107.6 inches / 2,733 mm
  • Performance
    • Travel Speed, Unloaded: 13.7 mph / 22.0 km/h
    • Travel Speed, Loaded: 12.1 mph / 19.5 km/h
    • Lift Speed, Unloaded: 118 fpm / 0.6 m/s
    • Lift Speed, Loaded: 87 fpm / 0.4 m/s
    • Lowering Speed, Unloaded: 106 fpm / 0.5 m/s
    • Lowering Speed, Loaded: 94 fpm / 0.47 m/s
    • Gradeability, Loaded: 27%
    • Gradeability, Unloaded: 33%
  • Tires
    • Type: Pneumatic
    • Front Tires: 28 x 12.5-15
    • Rear Tires: 7.00 x 12-12 PR
  • Brakes
    • Service Brake: Hydraulic
    • Parking Brake: Hand operated
  • Steering
    • Type: Hydraulic Power Steering
    • Steering Column: Tilt Adjustable
  • Fuel System
    • Fuel Type: LPG/Dual-Fuel
    • Fuel Tank Capacity: Varies based on tank size
  • Operator Compartment

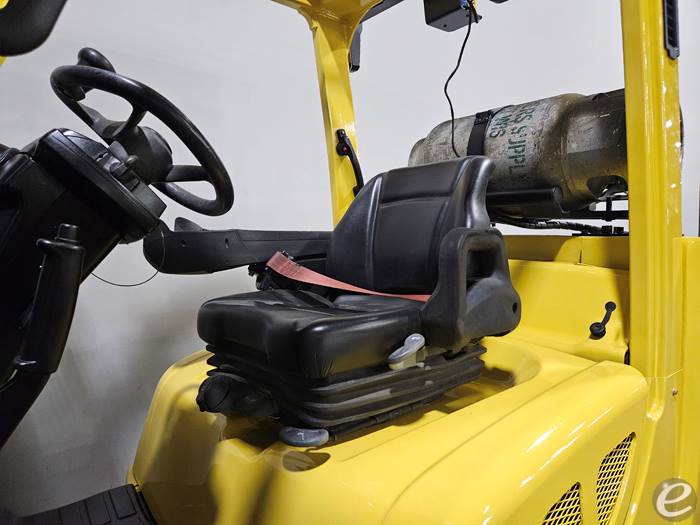

    • Seat: Suspension seat with seatbelt
    • Instrumentation: Multi-function display
    • Controls: Fingertip hydraulic controls
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
