2024 Eoslift S15J

electric walkie straddle stacker

Call for priceNew
Eoslift USA Corporation
CONTACT INFO
Name:
Louis Rojo
Phone:

ADDRESS
Eoslift USA Corporation
1590 S Milliken Ave Unit H
OntarioCalifornia 91761
ATTRIBUTES
STOCK #:
5
YEAR:
2024
Manufacturer:
MODEL #:
CAPACITY:
3300
FUEL:
Electric
CONDITION:
New
LOCATION:
California [91761]
DESCRIPTION:

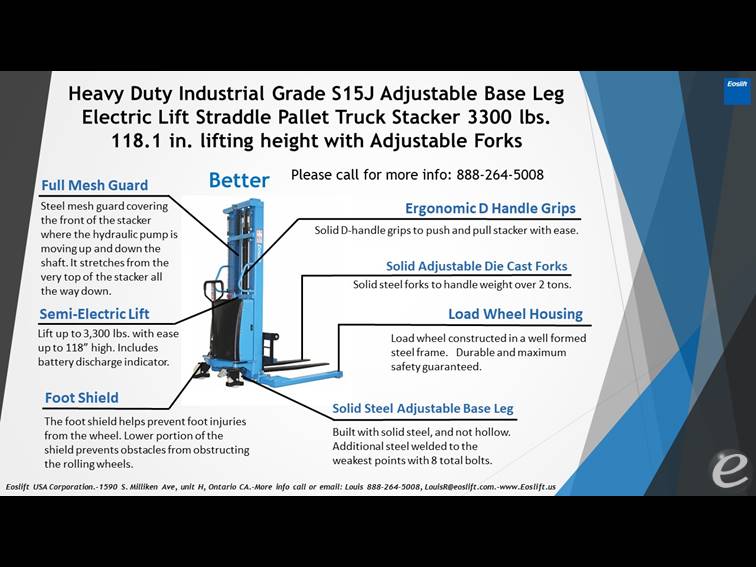

Semi-Electric Stacker, Capacity of 3,300 lbs.
POST DATE:
2/24/2025
Equipment Description
Lowered height 1.4", Raised Height 118" Give us a call for pricing or more information. 888.264.5008 x105
  • Model Number: S15J
  • Manufacturer: Eoslift
  • Type: Forklift
  • Subtype: Electric Walkie Straddle Stacker
  • Fuel Type Used: Electric
  • General Specifications:
    • Power Source: Electric
    • Operator Type: Walkie
    • Drive Motor: 0.75 kW (approximately 1 HP)
    • Lift Motor: 2.2 kW (approximately 3 HP)
    • Battery Voltage: 24 V
    • Battery Capacity: 210 Ah
    • Charger: External, included
    • Weight: Approximately 1,676 lbs
  • Performance Specifications:
    • Load Capacity: 3,300 lbs
    • Load Center: 24 inches
    • Drive Speed (Loaded/Unloaded): 2.5 mph to 3 mph
    • Lift Speed (Loaded/Unloaded): 0.09 ft/s to 0.14 ft/s
    • Gradeability (Loaded/Unloaded): 6% to 8%
  • Dimensions:
    • Overall Length: Approximately 70 inches
    • Overall Width: Approximately 50 inches
    • Overall Height: Approximately 80 inches
    • Fork Length: Varies
    • Fork Width: 7 inches
    • Fork Thickness: 2 inches
    • Straddle Legs Inner Width: Varies
    • Straddle Legs Outer Width: Approximately 50 inches
  • Safety and Ergonomics:
    • Emergency Reverse Belly Button
    • Ergonomic Handle
    • Anti-Roll Back System
    • Battery Discharge Indicator
