Equipment Description:

11000LB CAPACITY 3 STAGE MAST 91" LOWERED 189" RAISED LPG FUEL PNEUMATIC TIRES SIDE SHIFT FORK POSITION 72" FORKS

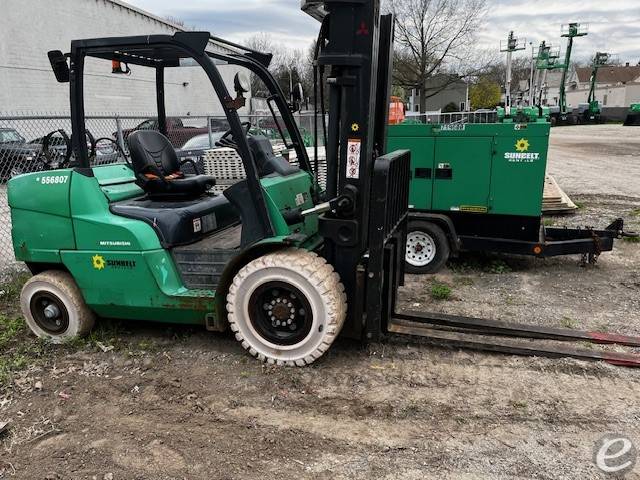

2013 LP Gas Mitsubishi FG50 Pneumatic Tire 4 Wheel Sit Down

Call for priceFor Rent

Contact Information

Supreme Forklift & Equipment
3695 E Apache Trail Suite 1
Apache Junction, Arizona 85119

CONTACT :

Sales Dept.

PHONE :

480-660-4508

Stock #:

YEAR:

2013

Manufacturer:

Mitsubishi

MODEL #:

FG50

CAPACITY:

11000

FUEL:

LP Gas

SUBCATEGORY:

Pneumatic Tire 4 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

91 / 189 in

SIDE SHIFTER:

Yes

CONDITION:

Rental

HOUR METER:

2548

LOCATION:

N/A

Equipment Description:

11000LB CAPACITY 3 STAGE MAST 91" LOWERED 189" RAISED LPG FUEL PNEUMATIC TIRES SIDE SHIFT FORK POSITION 72" FORKS

This product was posted on 11/12/2024

Model: Mitsubishi FG50
Engine Type: LPG (Liquefied Petroleum Gas)
Load Capacity: 5,000 kg (11,023 lbs)
Fuel Type: LPG
Engine Model: Mitsubishi 6G72
Power Output: Approximately 67 kW (90 HP)
Transmission: Powershift
Number of Speeds: 2 forward / 1 reverse
Overall Length: Approximately 4,400 mm (173.2 inches)
Overall Width: Approximately 1,990 mm (78.3 inches)
Overall Height: Approximately 2,480 mm (97.6 inches) with overhead guard
Wheelbase: Approximately 2,350 mm (92.5 inches)
Turning Radius: Approximately 3,300 mm (129.9 inches)
Tire Type: Pneumatic or solid cushion tires
Tire Size Front: 8.25-15-14PR or 300-15-18PR
Tire Size Rear: 8.25-15-14PR or 7.00-12-12PR
Maximum Travel Speed: Approximately 18-20 km/h (11-12 mph)
Brake Type: Hydraulic drum brakes
Hydraulic System: Load-sensing hydraulic system
Steering System: Hydraulic power steering
Mast Tilt Angle: 6 degrees forward / 12 degrees backward
Fork Length Options: Available in various lengths
Standard Fork Dimensions: Approximately 1,220 mm (48 inches)
Ground Clearance: Approximately 155 mm (6.1 inches)
Operator Controls: Standard mechanical levers
Seat Type: Suspension seat with safety belt
Optional Attachments: Side shifters, fork positioners, and other specialized attachments
Safety Features: Overhead guard, warning lights, audible alarm for reverse, etc.
