Equipment Description:

Fresh Paint 46 FT Working Height 47" Wide 770lb Deck Capacity 3 Ft Roll Out Deck Extension Solid - Non Marking Tires On Board Charger

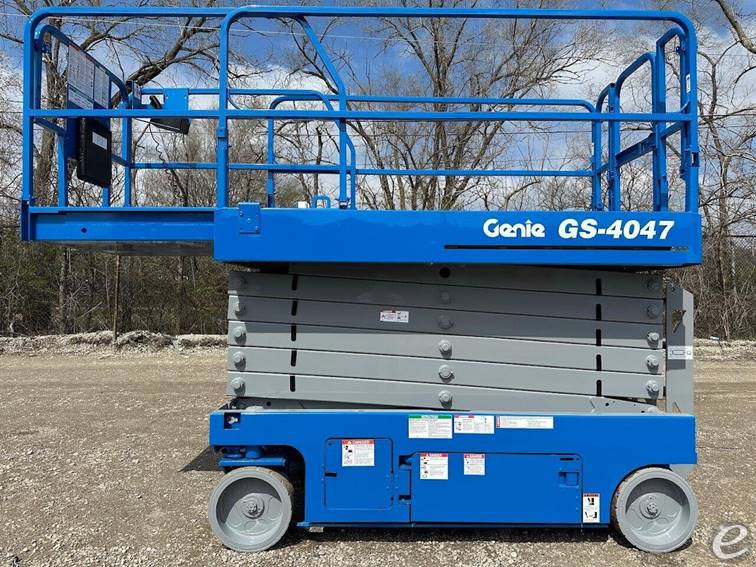

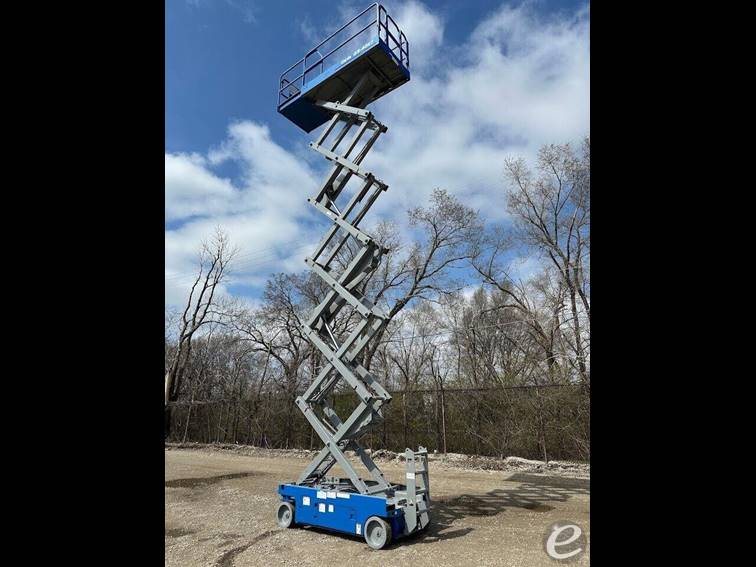

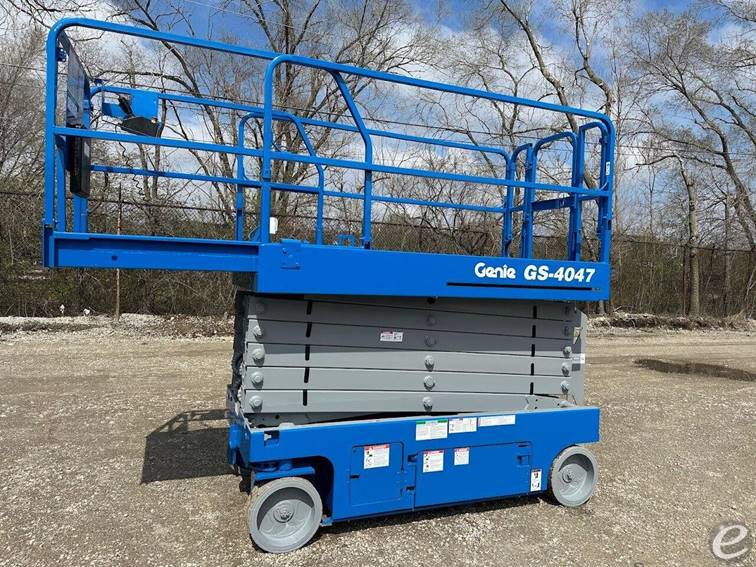

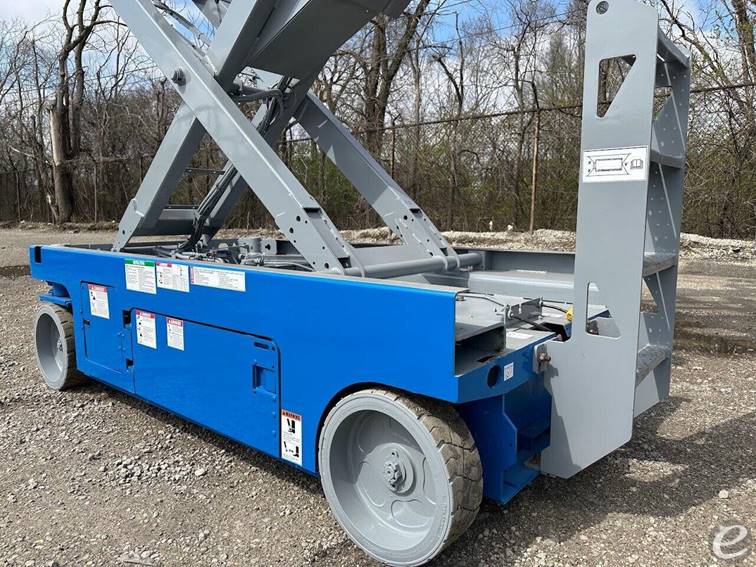

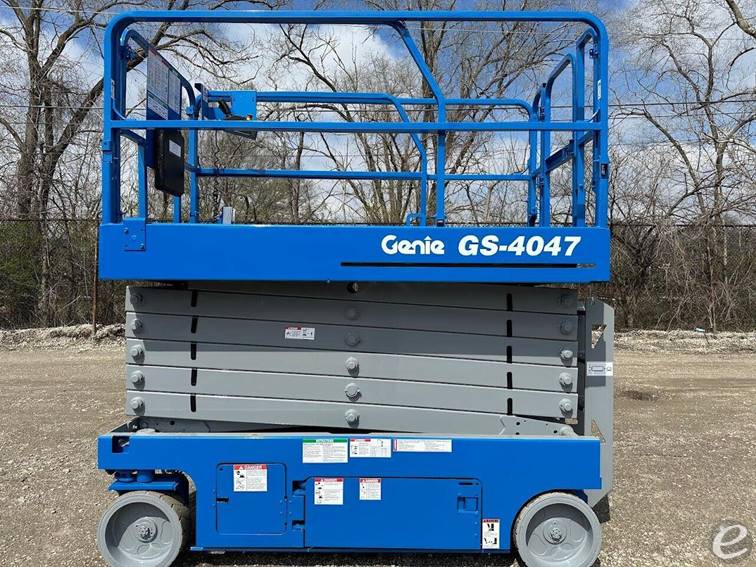

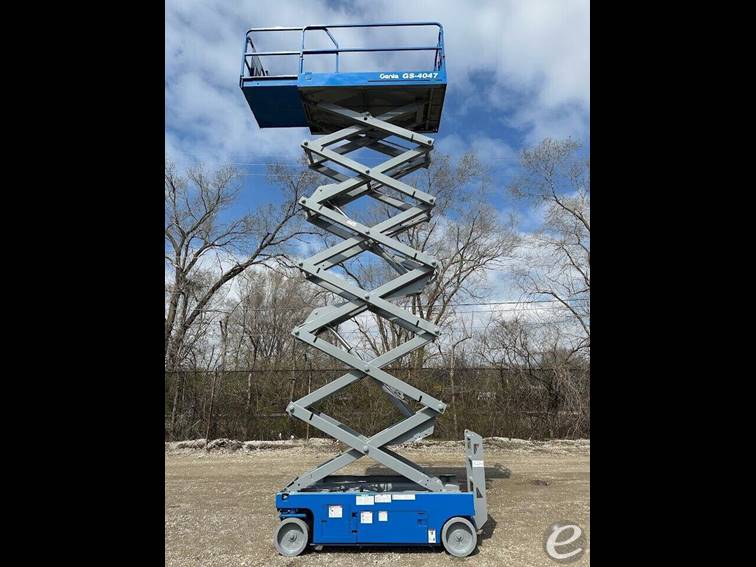

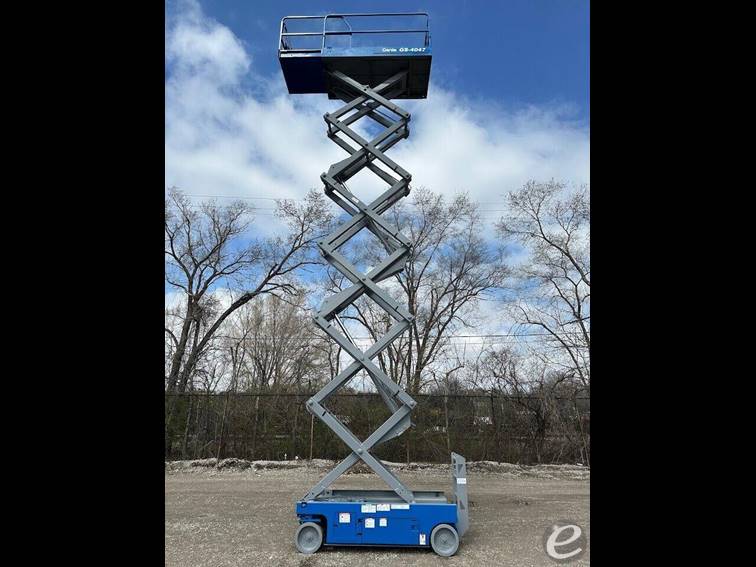

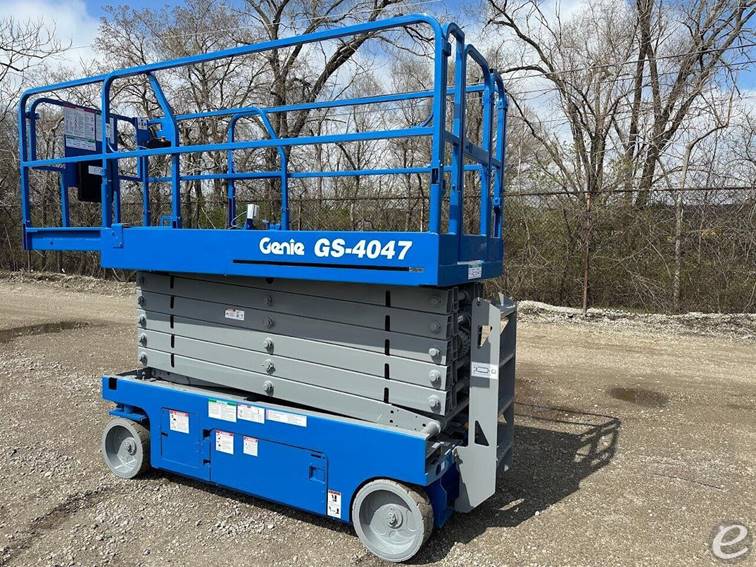

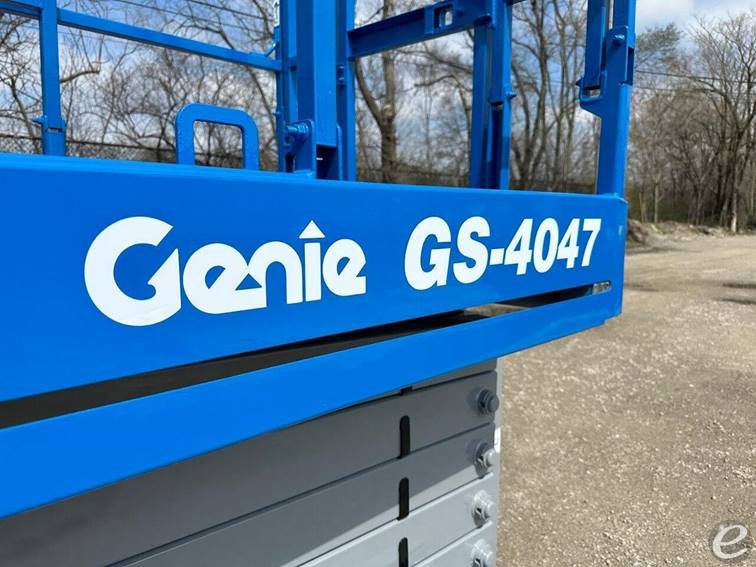

2016 Electric Genie GS4047 Slab

$16,450 USD

Contact Information

ATP Equipment Exchange Inc.
303 Mound Rd Bldg 1 Complex 2
Rockdale, Illinois 60436

CONTACT :

Anthony Plazibat

PHONE :

FAX :

Stock #:

150109145223

YEAR:

2016

Manufacturer:

MODEL #:

SUBCATEGORY:

Height:

FUEL:

Electric

CONDITION:

Used

LOCATION:

Equipment Description:

Fresh Paint 46 FT Working Height 47" Wide 770lb Deck Capacity 3 Ft Roll Out Deck Extension Solid - Non Marking Tires On Board Charger

This product was posted on 11/12/2024

Platform Height
- Maximum Platform Height: 39 ft 4 in (12 m)
Working Height
- Maximum Working Height: 45 ft (13.87 m)
Lift Capacity
- Lift Capacity: 550 lbs (249.48 kg)
Machine Width
- Width: 3 ft 11 in (1.19 m)
Machine Length
- Length: 8 ft 2 in (2.49 m)
Machine Height
- Stowed: 7 ft 4 in (2.24 m)
Machine Weight
- Weight: 7,055 lbs (3,200 kg)
Drive Speed
- Stowed: 2.5 mph (4 km/h)
- Raised: 0.5 mph (0.8 km/h)
Tire Type
- Solid non-marking tires
Turning Radius
- Inside: 11 in (0.28 m)
- Outside: 7 ft 10 in (2.41 m)
Gradeability
- 25%
Power Source
- 24 V DC (eight 6 V 375 Ah batteries)
Control System
- Fully proportional lift and drive controls
Platform
- Length: 7 ft 8 in (2.36 m)
- Width: 3 ft 10 in (1.17 m)
- Extension Deck: 3 ft (0.91 m)
Brakes
- Dual rear wheel dynamic braking
Auxiliary Power
- 12 V DC
Hydraulic System Capacity
- 3.7 gal (14 L)
Sound & Vibration Levels
- Sound Pressure Level: 70 dBA
- Vibration: <0.5 m/s²
