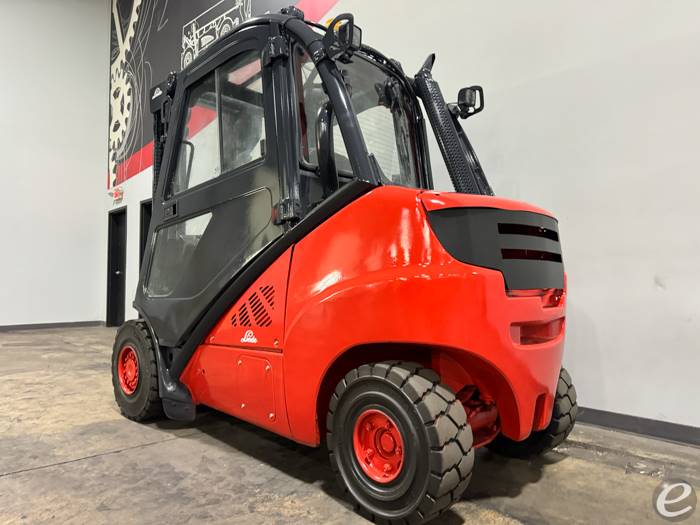

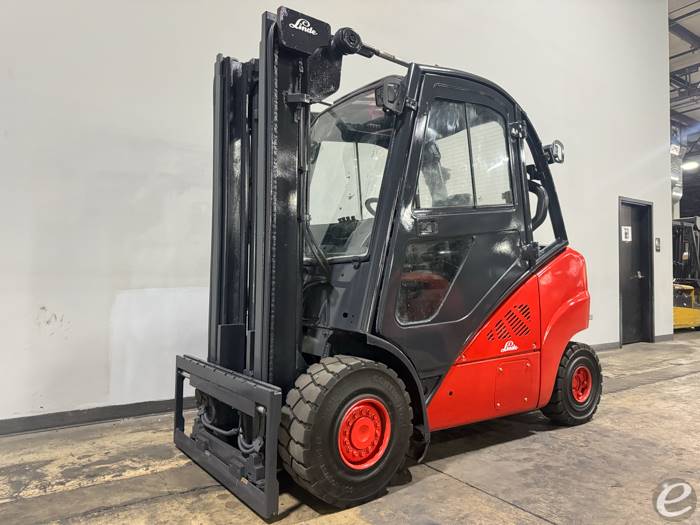

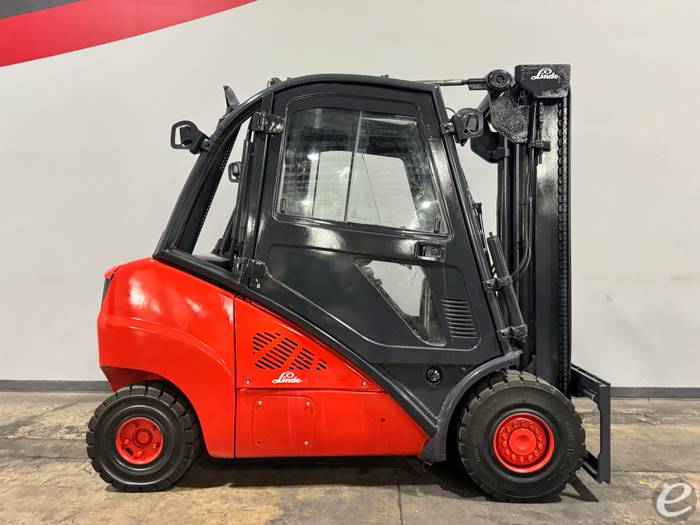

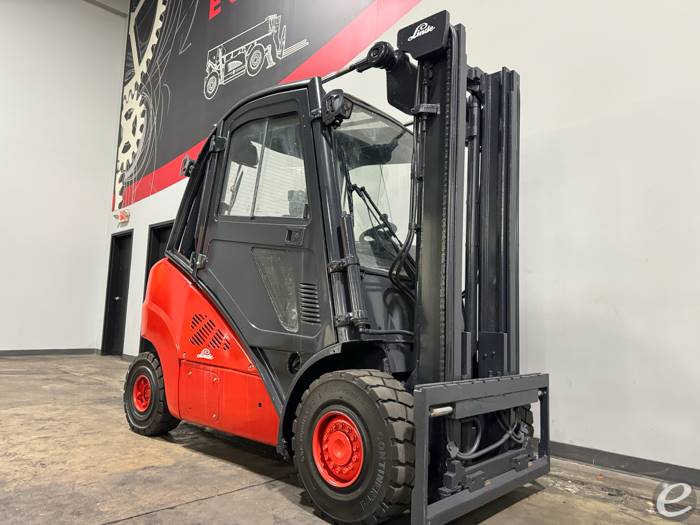

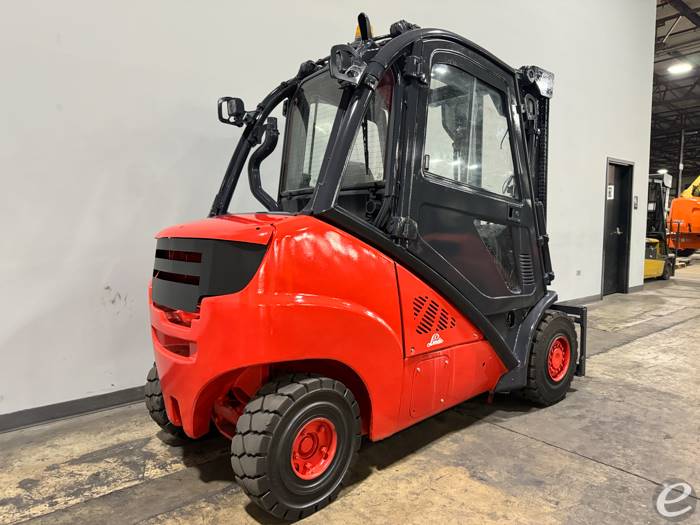

2017 Diesel Linde H35D Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
13968
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
7000
FUEL:
Diesel
MAST TYPE:
Two Stage
MAST HEIGHT:
88 / 124 in
CONDITION:
Used
LOCATION:
DESCRIPTION:
7000LB CAPACITY 2 STAGE MAST 88" LOWERED 124" RAISED
Equipment Description:
7000LB CAPACITY 2 STAGE MAST 88" LOWERED 124" RAISED VW ENGINE DIESEL FUEL PNEUMATIC TIRES ENCLOSED CAB W/HEAT 3 WAY HYDRAULICS FORKS INCLUDED
  • General Specifications
    • Model: Linde H35D
    • Type: Diesel Forklift
    • Load Capacity: 3,500 kg (7,716 lbs)
    • Load Center: 500 mm (19.7 in)
    • Engine: Diesel
  • Dimensions
    • Overall Length: 3,581 mm (141 in)
    • Overall Width: 1,205 mm (47.4 in)
    • Overall Height: 2,429 mm (95.6 in)
    • Wheelbase: 1,945 mm (76.6 in)
    • Mast Height Lowered: 2,226 mm (87.7 in)
  • Mast and Lifting
    • Mast Type: Duplex/Triplex
    • Lifting Height: Up to 4,725 mm (186 in)
    • Free Lift: 150 mm (5.9 in)
    • Tilt Angle: 6/10 degrees (forward/backward)
  • Engine and Performance
    • Engine Model: Volkswagen 3.0L
    • Engine Power: 55.4 kW (74 HP)
    • Max Torque: 320 Nm (236 lb-ft) at 1,800-2,000 rpm
    • Fuel Tank Capacity: 70 liters (18.5 gallons)
  • Chassis and Tires

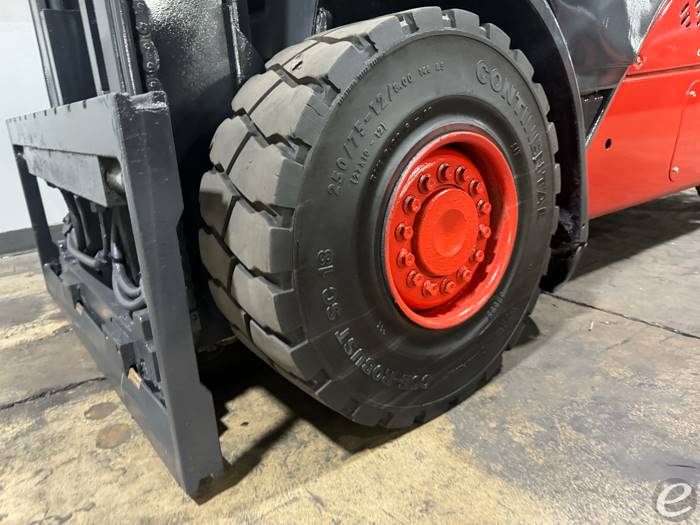

    • Tires: Pneumatic
    • Tire Size Front: 7.00-12
    • Tire Size Rear: 6.00-9
    • Service Weight: 4,930 kg (10,868 lbs)
  • Hydraulic System
    • Working Pressure: 175 bar
    • Pump Type: Gear Pump

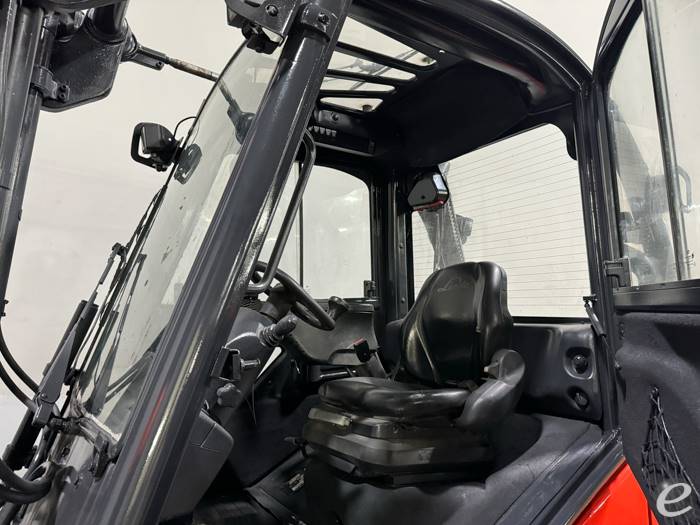

  • Operator's Compartment
    • Seat: Adjustable
    • Steering: Hydraulic Power Steering
    • Control Type: Joystick Control
  • Additional Features
    • Standard Safety Features: Overhead guard, reversing alarm
    • Optional Attachments: Side shifter, fork positioner
